Summary of Contents for UNI-T UTi220B

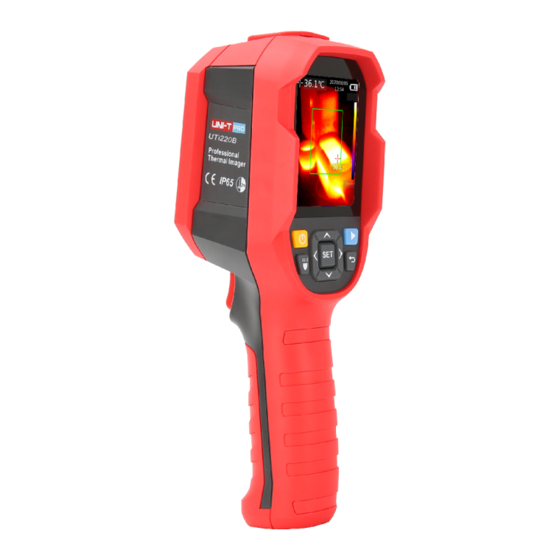

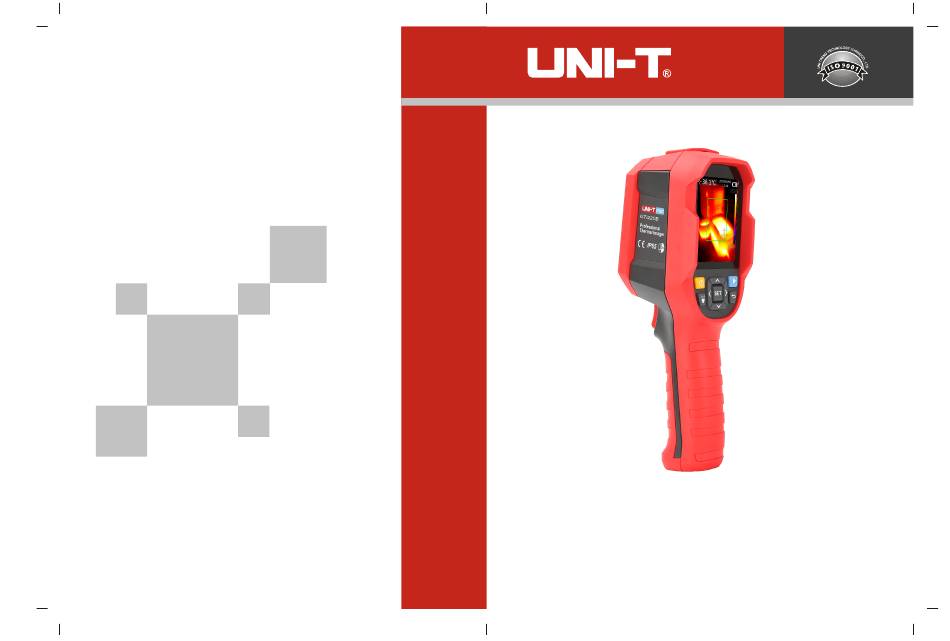

- Page 1 UTi220B Professional Thermal Imager P/N:110401109508X...
-
Page 2: Table Of Contents
UTi220B User Manual UTi220B User Manual Table of Contents Preface Thank you for purchasing the new UTi220B thermal imager. In order to use this product safely and correctly, please read this manual thoroughly, especially the Safety Instructions part. 1. Structure ----------------------------------------------------------------- 3 After reading this manual, it is recommended to keep the manual at an easily 2. -
Page 3: Structure
UTi220B User Manual UTi220B User Manual 2.Display 1. Structure Display size: 2.8” Display resolution: 320 (vertical) x 240 (horizontal) pixels Description Description Item Item Interface cover Power button USB (Type-C) interface Flashlight button SD card slot Left button Bottom cover... -
Page 4: Power On/Off
UTi220B User Manual UTi220B User Manual 3.Power On/Off 4.2 Palette Press and hold the power button for 3 seconds to turn on/off the product. Note: After the product starts the shutdown procedure, it takes 5 to 6 seconds. Please try to avoid turning on and off the product continuously to avoid damage. - Page 5 UTi220B User Manual UTi220B User Manual 4.4 Image Mode 4.3 Point Temperature 1. Press the SET button to open the main menu. 2. Press the left/right button to select the option. 3. Press the SET button to enter the Point Temperature menu.
- Page 6 UTi220B User Manual UTi220B User Manual 4.4.2 Date and Time 4.5 Settings To set date and time: 1. Press the up/down button to select the Date and Time option in the settings menu. To enter Settings menu: 2. Press the SET button to enter the Date and Time submenu.
- Page 7 UTi220B User Manual UTi220B User Manual 4.4.4 HI/LO Alert 4.4.6 Display Brightness To set high/low temperature alert: 1. Press the up/down button to select the HI/LO Alert option in the Settings menu. 2. Press the SET button to enter the HI/LO Alert submenu.
- Page 8 UTi220B User Manual UTi220B User Manual 4.4.10 System Settings 4.4.8 USB Mode To set USB mode: 1. Press the up/down button to select the USB Mode option in the Settings menu. 2. Press the SET button to enter the USB Mode submenu.
-
Page 9: Operating Instructions
UTi220B User Manual UTi220B User Manual Factory Reset To format SD card: 1. Press the up/down button to select the Format SD Card option in the System Settings submenu. 2. Press the SET button to enter. 3. Press the up/down button to select Yes. - Page 10 UTi220B User Manual 5.2 Image Viewing 5.4 USB Communication and Image Projection 1. Download and install the PC software (refer to UNI-T Documents Download Operation Guide). 2. Connect the USB cable to the PC. 3. Set the USB mode to USB Disk to browse pictures and analyze data through the PC software;...
-
Page 11: Specifications
UTi220B User Manual UTi220B User Manual 6. Specifications Sensor UFPA PC software Temperature range -10°C~400°C Yes (real-time image projection Real-time image transmission through PC software) Measurement resolution 0.1°C ±2 ±2%(at 25 Accuracy °C/ °C ambient temperature) Type-C USB interface Data transmission... -
Page 12: Maintenance
0.09 Rust Copper plate Gypsum 0.06 0.75 Black aluminum 0.95 Paint Human skin 0.98 Rubber 0.95 Asphalt 0.96 Soil 0.93 0.93 Note: This manual can be downloaded from the official website of Uni-Trend (refer to UNI-T Documents Download Operation Guide).
