Summary of Contents for UNI-T UTi220K

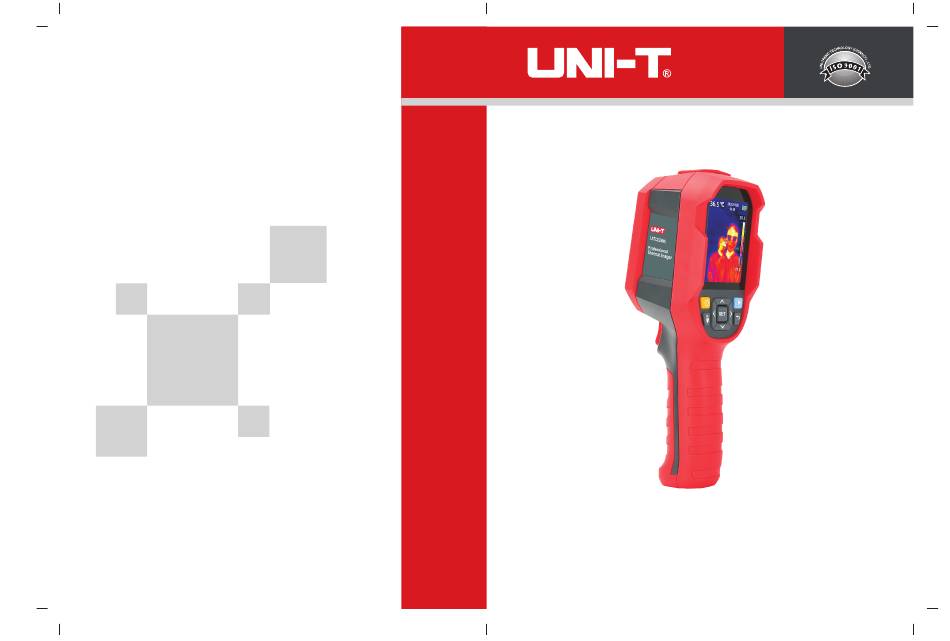

- Page 1 UTi220K Professional Thermal Imager P/N:110401109416X...
- Page 2 UTi220K User Manual Preface Thank you for purchasing the new UTi220K thermal imager. In order to use this product safely and correctly, please read this manual thoroughly, especially the Safety Instructions part. After reading this manual, it is recommended to keep the manual at an easily accessible place, preferably close to the device, for future reference.
-
Page 3: Table Of Contents
UTi220K User Manual UTi220K User Manual 1. Safety Instructions To ensure proper use of this product, please read the instructions carefully Table of Contents before using. The optimal measuring distance for this product is 1 meter. To ensure measurement accuracy, please use the product in an operating environment of 15°C~30°C, <85% RH (non-condensing). -
Page 4: Structure
UTi220K User Manual UTi220K User Manual 3.Display 2. Structure Display size: 2.8” Display resolution: 320 (vertical) x 240 (horizontal) pixels Description Description Item Item Flashlight button USB (Type-C) interface SD card slot Left button Interface cover Down button LED light... -
Page 5: Power On/Off
UTi220K User Manual UTi220K User Manual 4.Power On/Off 5.2 Palette Press and hold the power button for 3 seconds to turn on/off the product. Note: After the product starts the shutdown procedure, it takes 5 to 6 seconds. Please try to avoid turning on and off the product continuously to avoid damage. - Page 6 UTi220K User Manual UTi220K User Manual 5.4 Image Mode 5.3 Point Temperature 1. Press the SET button to open the main menu. 2. Press the left/right button to select the option. 3. Press the SET button to enter the Point Temperature menu.
- Page 7 UTi220K User Manual UTi220K User Manual 5.5.2 Date and Time 5.5 Settings To set date and time: 1. Press the up/down button to select the Date and Time option in the settings menu. To enter Settings menu: 2. Press the SET button to enter the Date and Time submenu.
- Page 8 UTi220K User Manual UTi220K User Manual 5.5.4 HI/LO Alert 5.5.6 Display Brightness To set high/low temperature alert: 1. Press the up/down button to select the HI/LO Alert option in the Settings menu. 2. Press the SET button to enter the HI/LO Alert submenu.
- Page 9 UTi220K User Manual UTi220K User Manual 5.5.10 System Settings 5.5.8 USB Mode To set USB mode: 1. Press the up/down button to select the USB Mode option in the Settings menu. 2. Press the SET button to enter the USB Mode submenu.
-
Page 10: Operating Instructions
UTi220K User Manual UTi220K User Manual Factory Reset To format SD card: 1. Press the up/down button to select the Format SD Card option in the System Settings submenu. 2. Press the SET button to enter. 3. Press the up/down button to select Yes. - Page 11 Note: When the LED light is on, please do not point to the eyes of people or animals. 6.5 USB Communication and Image Projection 1. Download and install the PC software (refer to UNI-T Documents Download Operation Guide). 2. Connect the USB cable to the PC.
-
Page 12: Specifications
UTi220K User Manual UTi220K User Manual 7. Specifications UFPA Sensor PC software Temperature range 30°C~45°C Yes (real-time image projection Real-time image transmission through PC software) Measurement resolution 0.1°C Accuracy ±0.5°C (at 25°C ambient temperature) Type-C USB interface Data transmission Optimal measuring distance... -
Page 13: Maintenance
0.09 Rust Copper plate Gypsum 0.06 0.75 Black aluminum 0.95 Paint Human skin 0.98 Rubber 0.95 Asphalt 0.96 Soil 0.93 0.93 Note: This manual can be downloaded from the official website of Uni-Trend (refer to UNI-T Documents Download Operation Guide).
