FLX S24
FLX S48
OVERVIEW
This document provides installation and operation instructions for the following product(s):
P ROD UCT NA M E
FLX S24
FLX S48
iNtrOductiON
FLX S consoles are easy to learn and simple to use -
delivering all the features you need at an affordable
price. We sincerely hope that your new FLX S will
bring you years of trouble-free service. We take
great care to build in reliability and serviceability
at every stage of our development and production
processes.
OVerVieW
FLX S24

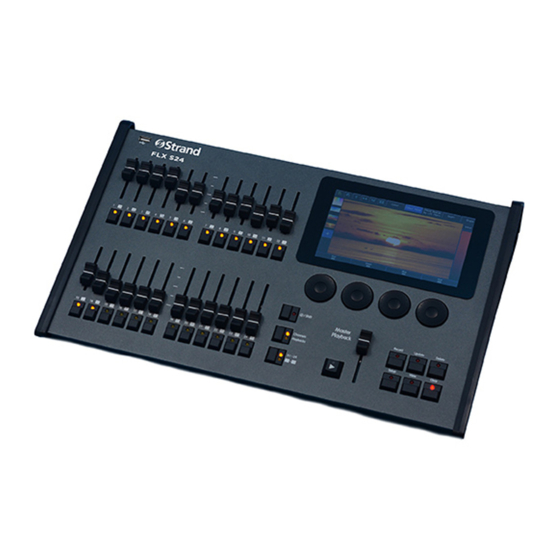

FLX S24 is a 19" wide console, capable of controlling
48 physical fixtures (LEDs, dimmers, moving lights,
etc).
ORDE R CODE
54108-020
54109-020
MANUAL
To view the full manual, visit
SOFTWARE
FLX S runs ZerOS software, which is regularly
updated to bring new features and to keep your
console stable and secure. Software updates
are free of charge and can be downloaded from
strandlighting.com
always be running the latest release of software.
FLX S48
FLX S48 is capable of controlling 96 physical
fixtures (LEDs, dimmers, moving lights, etc), and
includes a DVI-D output for optional external touch
screen monitor.
ACCESSORIES
Flightcases, Replacement PSUs, Dustcovers and
Side Brackets are all available for FLX S. Visit
strandlighting.com
1
Quick Start Guide
9850-000840-00
strandlighting.com
. It is strongly recommended to
for more information.
.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Strand FLX S24
Summary of Contents for Strand FLX S24
- Page 1 OVerVieW FLX S24 FLX S48 FLX S24 is a 19” wide console, capable of controlling FLX S48 is capable of controlling 96 physical 48 physical fixtures (LEDs, dimmers, moving lights, fixtures (LEDs, dimmers, moving lights, etc), and includes a DVI-D output for optional external touch etc).
- Page 2 • Touchscreen (DVI-D also required, FLX S48 only) 12V DC; MAX 1.25A, 15W • External Storage Devices (such as Memory The approved Strand power supply included with Sticks) FLX S should always be used. This power supply ETHERNET PORT should be earthed. Spaces / replacements can be ordered, listed under “accessories”...
- Page 3 The page button allows you to switch between CHASES faders 1 – 24 and faders 25 – 48 on FLX S24, or Chases are sequences of lighting states (“steps”) faders 1 – 48 and faders 49 – 96 on FLX S48.
- Page 4 • External Touch Screen require calibration by diagnostic mode. Perform a Backup Desk State going to Setup > System Settings > Calibrate and email this to Strand (see contact details on right). REMOTE APP NOT CONNECTING? If the remote apps are not connecting to the •...
