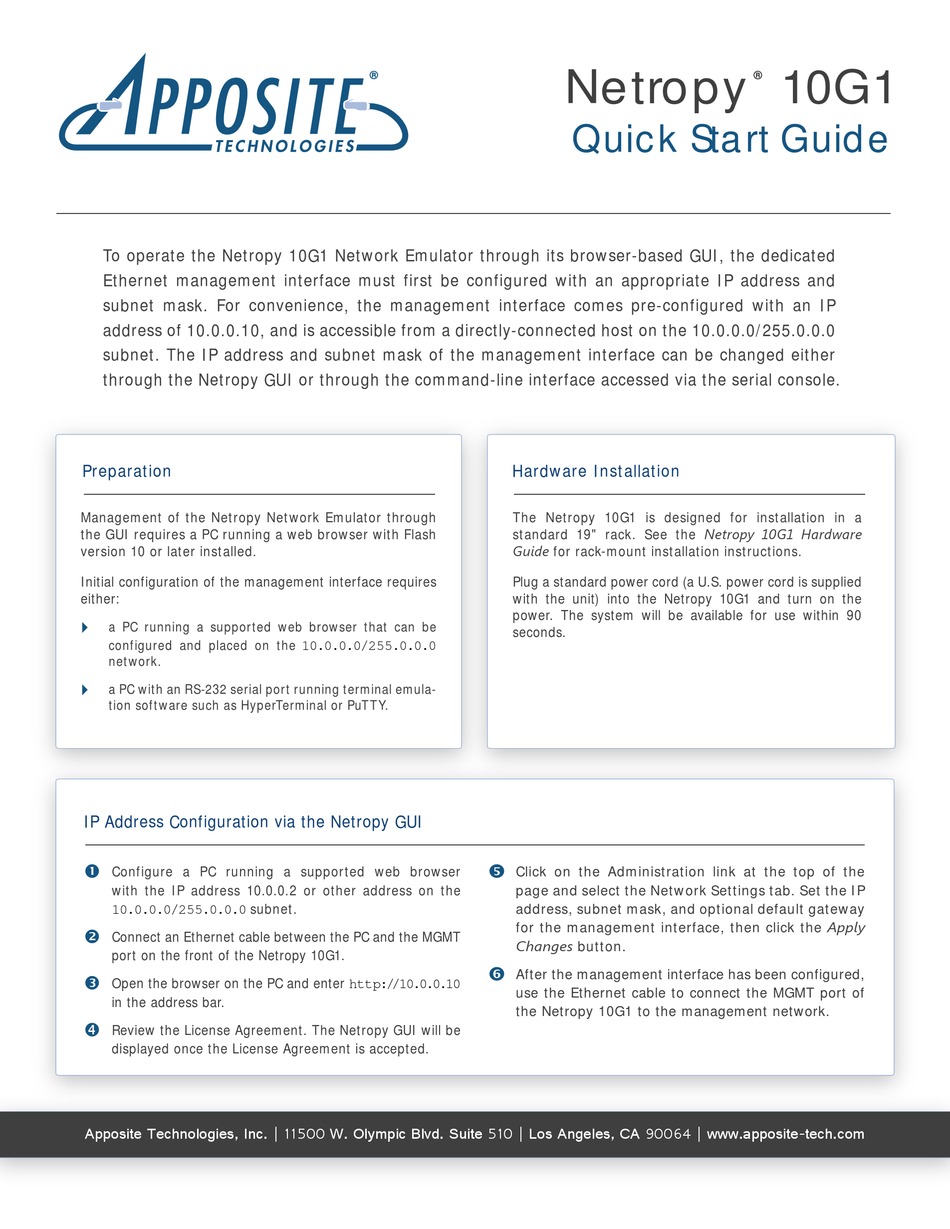

Apposite Netropy 10G1 Quick Start Manual

To operate the Netropy 10G1 Network Emulator through its browser-based GUI, the dedicated
Ethernet management interface must first be configured with an appropriate IP address and
subnet mask. For convenience, the management interface comes pre-configured with an IP
address of 10.0.0.10, and is accessible from a directly-connected host on the 10.0.0.0/255.0.0.0
subnet. The IP address and subnet mask of the management interface can be changed either
through the Netropy GUI or through the command-line interface accessed via the serial console.
Preparation
Management of the Netropy Network Emulator through
the GUI requires a PC running a web browser with Flash
version 10 or later installed.
Initial configuration of the management interface requires
either:
 a PC running a supported web browser that can be
configured and placed on the
network.
a PC with an RS-232 serial port running terminal emula-

tion software such as HyperTerminal or PuTTY.
IP Address Configuration via the Netropy GUI

Configure a PC running a supported web browser
with the IP address 10.0.0.2 or other address on the
subnet.
10.0.0.0/255.0.0.0
 Connect an Ethernet cable between the PC and the MGMT
port on the front of the Netropy 10G1.

Open the browser on the PC and enter
in the address bar.
 Review the License Agreement. The Netropy GUI will be
displayed once the License Agreement is accepted.
Apposite Technologies, Inc. | 11500 W. Olympic Blvd. Suite 510 | Los Angeles, CA 90064 | www.apposite-tech.com
10.0.0.0/255.0.0.0
http://10.0.0.10
Netropy 10G1
Quick Start Guide
Hardware Installation
The Netropy 10G1 is designed for installation in a
standard 19" rack. See the Netropy 10G1 Hardware
Guide for rack-mount installation instructions.
Plug a standard power cord (a U.S. power cord is supplied
with the unit) into the Netropy 10G1 and turn on the
power. The system will be available for use within 90
seconds.

Click on the Administration link at the top of the
page and select the Network Settings tab. Set the IP
address, subnet mask, and optional default gateway
for the management interface, then click the Apply
Changes button.

After the management interface has been configured,
use the Ethernet cable to connect the MGMT port of
the Netropy 10G1 to the management network.
