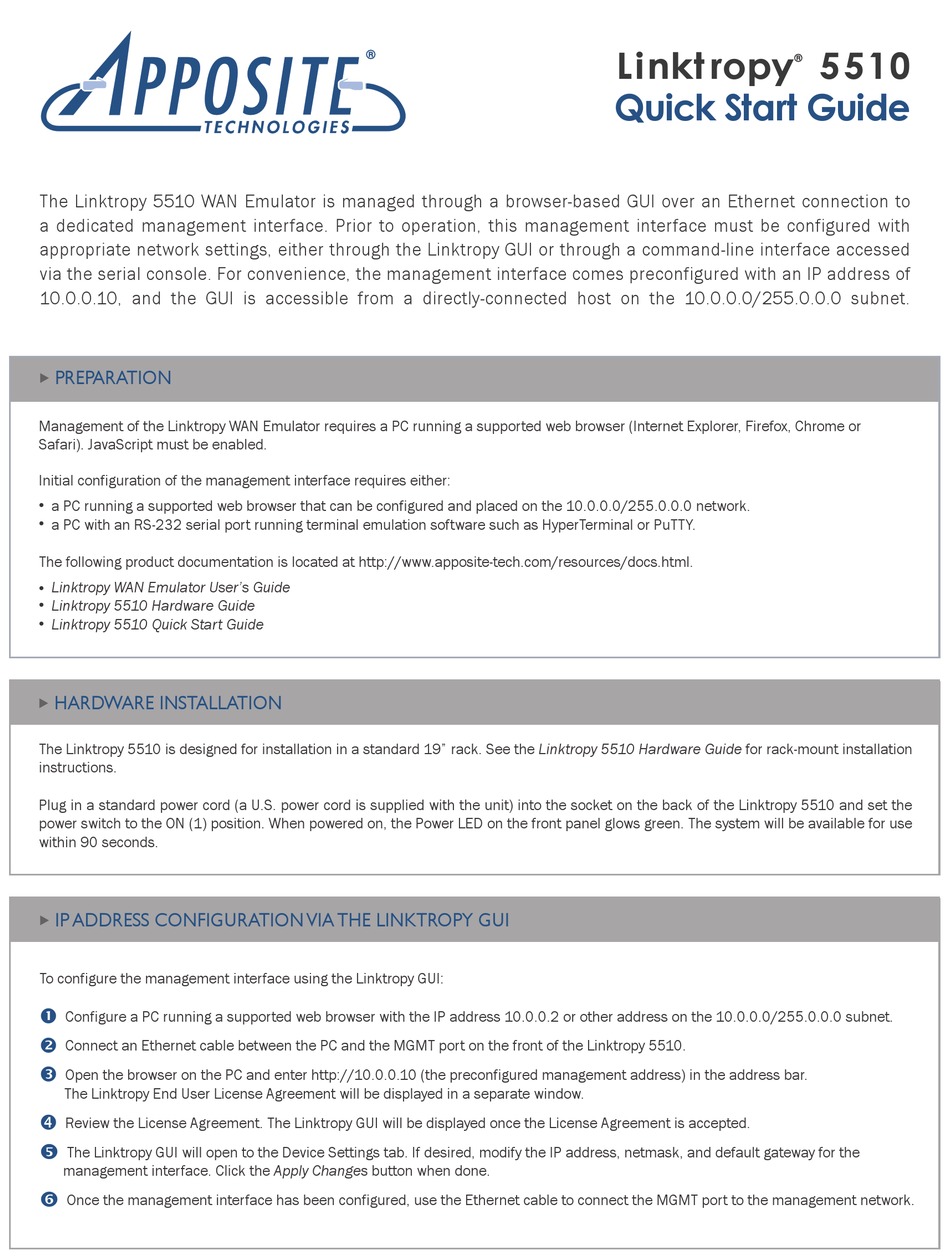

Apposite Linktropy 5510 Quick Start Manual

The Linktropy 5510 WAN Emulator is managed through a browser-based GUI over an Ethernet connection to
a dedicated management interface. Prior to operation, this management interface must be configured with
appropriate network settings, either through the Linktropy GUI or through a command-line interface accessed
via the serial console. For convenience, the management interface comes preconfigured with an IP address of
10.0.0.10, and the GUI is accessible from a directly-connected host on the 10.0.0.0/255.0.0.0 subnet.

PREPARATION


Management of the Linktropy WAN Emulator requires a PC running a supported web browser (Internet Explorer, Firefox, Chrome or
Safari). JavaScript must be enabled.
Initial configuration of the management interface requires either:
a PC running a supported web browser that can be configured and placed on the 10.0.0.0/255.0.0.0 network.

a PC with an RS-232 serial port running terminal emulation software such as HyperTerminal or PuTTY.

The following product documentation is located at http://www.apposite-tech.com/resources/docs.html.
Linktropy WAN Emulator User's Guide

Linktropy 5510 Hardware Guide

Linktropy 5510 Quick Start Guide


HARDWARE INSTALLATION


The Linktropy 5510 is designed for installation in a standard 19" rack. See the Linktropy 5510 Hardware Guide for rack-mount installation
instructions.
Plug in a standard power cord (a U.S. power cord is supplied with the unit) into the socket on the back of the Linktropy 5510 and set the
power switch to the ON (1) position. When powered on, the Power LED on the front panel glows green. The system will be available for use
within 90 seconds.

IP ADDRESS CONFIGURATION VIA THE LINKTROPY GUI


To configure the management interface using the Linktropy GUI:

Configure a PC running a supported web browser with the IP address 10.0.0.2 or other address on the 10.0.0.0/255.0.0.0 subnet.

Connect an Ethernet cable between the PC and the MGMT port on the front of the Linktropy 5510.

Open the browser on the PC and enter http://10.0.0.10 (the preconfigured management address) in the address bar.
The Linktropy End User License Agreement will be displayed in a separate window.

Review the License Agreement. The Linktropy GUI will be displayed once the License Agreement is accepted.

The Linktropy GUI will open to the Device Settings tab. If desired, modify the IP address, netmask, and default gateway for the
management interface. Click the Apply Changes button when done.

Once the management interface has been configured, use the Ethernet cable to connect the MGMT port to the management network.
Linkt ropy 5510
Quick Start Guide
