SHURFLO®
115V AC PARK MODEL PUMP
MODEL SERIES 4008
New SHURFLO® 4008 REVOLUTION™ Designed for potable water applications
INSTALLATION TIPS
•
Mount on a solid surface within 6 feet of tank
•
Properly sized plumbing
•
Proper electrical protection
•
Properly sized wiring
•
Use proper fuse size
•
Strainer on pump inlet
•
Dry and accessible location
•
Minimize plumbing elbows and valves
•
Flexible high-pressure hose on inlet and outlet
•
No accumulator needed
FLUID MOTION TECHNOLOGIES
REVOLUTION™ 3 GPM
BENEFITS
• 4 independent
chambers
• Co-Molded diaphragm
• Adjustable pressure
switch
• Adjustable by-pass
• Self-priming up to 6 feet
• Thermally protected
• CSA Listed
911-1022

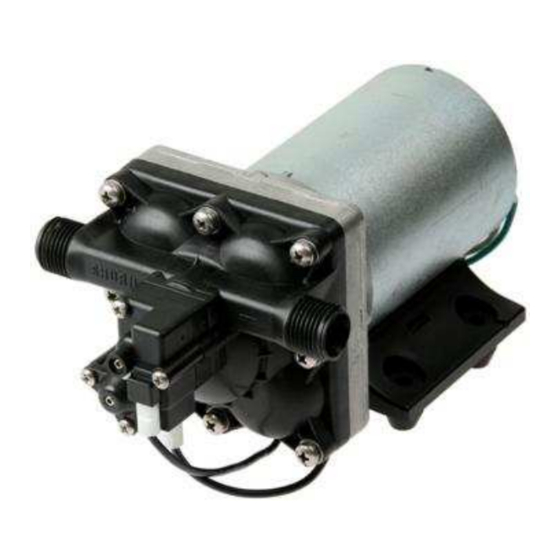

4008 REVOLUTION™
SHURflo's 4008 pumps are equipped to deliver high
performance and reliability every time they are used.
SHURflo's potable water pumps operate four
independent pumping chambers which allow the
pump to self-prime and lift water up to 6 feet. With
smooth flow and uninterrupted operation, the 4008
Revolution pumps include a built-in check valve to
prevent back flow into the tank. Each pump features
an adjustable pressure switch and by-pass and has
the capability to run dry without damage to the pump
or motor.
OPERATION TIPS
• Do not adjust switch or bypass settings
without contacting customer service
• Pump is design for intermittent operation
only
• Turn off power to the pump when RV is
unattended
• Maintain your strainer clean for ultimate
pump performance
• Do not use pump for Reverse Osmosis
filtration system
Page | 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Pentair SHURFLO REVOLUTION 4008 Series
Summary of Contents for Pentair SHURFLO REVOLUTION 4008 Series
- Page 1 SHURFLO® REVOLUTION™ 3 GPM 115V AC PARK MODEL PUMP MODEL SERIES 4008 New SHURFLO® 4008 REVOLUTION™ Designed for potable water applications BENEFITS 4008 REVOLUTION™ • 4 independent SHURflo’s 4008 pumps are equipped to deliver high performance and reliability every time they are used. chambers SHURflo’s potable water pumps operate four •...
- Page 2 CAUTION: “Intermittent Duty” is defined as; operated and/or frequently started within a period of time that would cause the motor to reach its maximum thermal limits. Once the maximum thermal limit is obtained, the motor must be allowed to return to ambient temperature before resuming operation.
- Page 3 connected to plastic or rigid pipe. This hose should be anchored where it meets the hard plumbing to reduce plumbing vibration. OPERATION: This pump is designed for intermittent duty only. The pump operates normally up to about 40-psi, where a spring-loaded by-pass valve opens, allowing flow back from the output side to the input side, providing smooth, steady flow with virtually no cycling, all the way down to a trickle.
- Page 4 Pentair Water Belgium bvba, Industriepark Wolfstee, Toekomstlaan 30, B-2200 Herentals, Belgium, +32-14-283500 All Pentair trademarks and logos are owned by Pentair, Inc. All other brand or product names are trademarks or registered marks of their respective owners. Because we are continuously improving our products and services, Pentair reserves the right to change specifications without prior notice.
