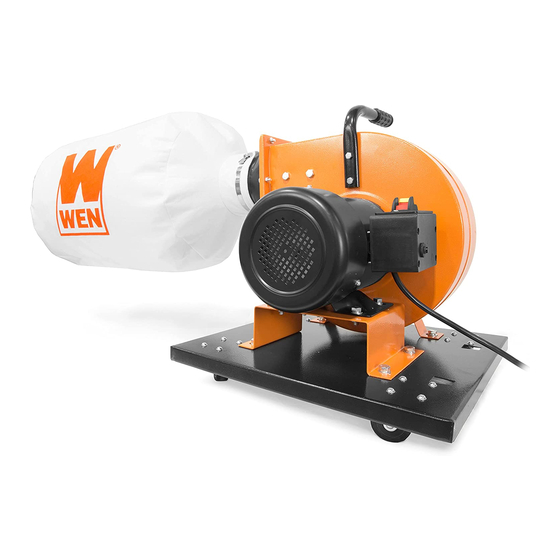

MODEL DC3402
600 CFM
DUST COLLECTOR
Instruction Manual
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
1-800-232-1195 (M-F 8AM-5PM CST)
TECHSUPPORT@WENPRODUCTS.COM
IMPORTANT: Your new tool has been engineered and manufactured to WEN's highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use
your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
WENPRODUCTS.COM
For replacement parts and the most up-to-date instruction manuals, visit
Advertisement
Table of Contents
Related Manuals for Wen DC3402
Summary of Contents for Wen DC3402
- Page 1 1-800-232-1195 (M-F 8AM-5PM CST) TECHSUPPORT@WENPRODUCTS.COM IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
-
Page 2: Table Of Contents
CONTENTS WELCOME Introduction ..................... 3 Specifications ....................3 SAFETY General Safety Rules ..................4 Dust Collector Safety Warnings ............... 6 Electrical Information ..................7 BEFORE OPERATING Unpacking & Packing List ................8 Know Your Dust Collector ................8 Assembly & Adjustments ................. 9 OPERATION &... -
Page 3: Welcome
INTRODUCTION Thanks for purchasing the WEN Dust Collector. We know you are excited to put your tool to work, but first, please take a moment to read through the manual. Safe operation of this tool requires that you read and understand this operator’s manual and all the labels affixed to the tool. -
Page 4: Safety
GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 5 GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
-
Page 6: Dust Collector Safety Warnings
DUST COLLECTOR SAFETY WARNINGS WARNING! Do not let comfort or familiarity with the product replace strict adherence to product safety rules. Failure to follow the safety instructions may result in serious personal injury. DUST COLLECTOR SAFETY 4. Do not place your hands, lumber or tools near the 1. -
Page 7: Electrical Information
ELECTRICAL INFORMATION GROUNDING INSTRUCTIONS In the event of a malfunction or breakdown, grounding provides the path of least resistance for an electric current and reduces the risk of electric shock. This tool is equipped with an electric cord that has an equipment grounding conductor and a grounding plug. -
Page 8: Before Operating
7. Bag ........................ 1 KNOW YOUR DUST COLLECTOR TOOL PURPOSE Control the mess and minimize cleanup in your shop with your WEN Dust Collector. Refer to the diagram below to become familiarized with the parts and controls of your dust collector. Collection Bag... -
Page 9: Assembly & Adjustments
ASSEMBLY & ADJUSTMENTS ASSEMBLING THE ROLLER BASE Fig. 2 1. Place the machine on its back and attach one of the casters (Fig. 2 - 1) with four M5 bolts (Fig. 2 - 2) and washers (Fig. 2 - 3). Secure the bolts with four nuts (Fig. 2 - 4) on the underside. 2. -
Page 10: Operation & Maintenance
1. Connect the dust collector to your woodworking machine using a 4-inch dust collection hose. NOTE: Your dust collector is compatible with the WEN 28200 10-feet dust hose and the WEN 28221 20-feet dust hose, available at wenproducts.com. Adaptors may be needed depending on the port size of your machine. -
Page 11: Maintenance
OPERATION TIPS AND TRICKS 1. Your dust collector is designed to collect sawdust and other fine particles, such as that produced by sanders, band saws, etc. If you plan to use it with a machine that produces larger chips or shavings, such as a thickness planer or jointer, we recommend using a cyclone separator or similar filter upstream of the dust collector, to prevent clogging. -
Page 12: Troubleshooting Guide
2. Bad start capacitor. 2. Contact WEN customer service. Unit hums but does not start. 3. Bad or misaligned centrifugal switch. 3. Contact WEN customer service. 4. Bad motor. 4. Contact WEN customer service. Clicking sound on startup or 1. -
Page 13: Exploded View & Parts List
EXPLODED VIEW & PARTS LIST NOTE: Not all parts may be available for purchase. Parts and accessories that wear down over the course of normal use are not covered under the warranty. - Page 14 EXPLODED VIEW & PARTS LIST Part No. Description Qty. Part No. Description Qty. DC3402-001 Caster 3401-035 Switch Lock Nut, M5 3403-046 Switch Box Pan Head Screw, Hose Clamp M5x10 DC3402-024 Motor Washer, 5mm Capacitor, 125V, N.P. Base Plate 200uF Pan Head Screw,...
-
Page 15: Warranty Statement
WARRANTY STATEMENT WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this commitment and our dedication to quality. LIMITED WARRANTY OF WEN PRODUCTS FOR HOME USE GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN consumer power tools will be free from defects in material or workmanship during personal use for a period of two (2) years used for professional or commercial use. - Page 16 THANKS FOR REMEMBERING V. 2020.12.11...
