FM300
184841
For replacement parts visit
WENPRODUCTS.COM
Your new tool has been engineered and manufactured to WEN's highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years
of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings,
and cautions. If you use your tool properly and for intended purpose, you will enjoy years of safe,
reliable service.
NOTICE: Please refer to wenproducts.com for the most up-to-date instruction manual.

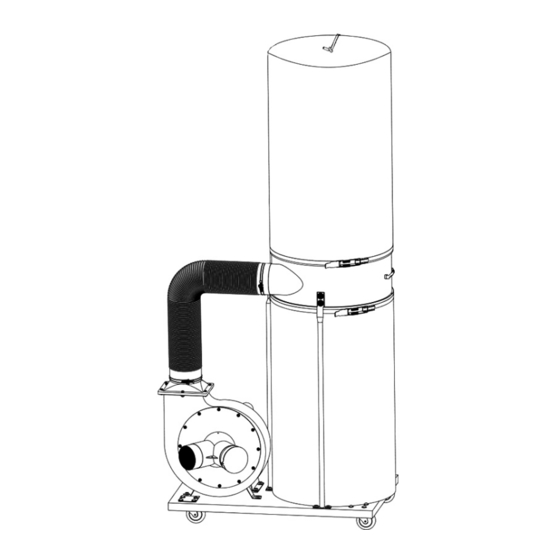

WOODWORKING
DUST COLLECTOR
IMPORTANT:
NEED HELP? CONTACT US!
Have product questions? Need technical support?
Please feel free to contact us at:
800-232-1195
techsupport@wenproducts.com
WENPRODUCTS.COM
Model # 3403
bit.ly/wenvideo
(M-F 8AM-5PM CST)
Advertisement
Related Manuals for Wen 3403
Summary of Contents for Wen 3403
- Page 1 WENPRODUCTS.COM IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions.
-
Page 2: Table Of Contents
1,500 CFM Collection Bag Capacity: 50 Gallons Filter Bag Rating: 5 Microns Assembled Dimensions: 33.5 x 22 x 73.2 in. Product Net Weight: 95 pounds Replacement collection bags (Part No. 3403-036) and other replace- ment parts can be purchased from wenproducts.com... -
Page 3: General Safety Rules
GENERAL SAFETY RULES Safety is a combination of common sense, staying alert and knowing how your item works. SAVE THESE SAFETY INSTRUCTIONS. WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and serious injury. To avoid mistakes and serious injury, do not plug in your tool until the following steps have been read and understood. - Page 4 GENERAL SAFETY RULES POWER TOOL USE AND CARE 1. Avoid accidental start-ups. Make sure the power switch is in the OFF position before connecting the plug to a power source or carrying the tool. 2. Check power tool for damaged parts. Check for misalignment of moving parts, jamming, breakage, improper mounting, or any other conditions that may affect the tool’s operation.
-
Page 5: Electrical Information
ELECTRICAL INFORMATION POWER SUPPLY PREPARATION Before installing the machine, check the availability and proximity of the required power supply circuit. This dust collector has a rated amperage of 16A, but the starting amperage may spike up to 80A for a short moment. The tool has a built-in 25A overload protector to protect the motor. -
Page 6: Unpacking
UNPACKING Carefully unpack and remove all contents from the packaging. Identify all parts according to the chart below. If any part is damaged or missing, please contact our customer service at (800) 232-1195, M-F 8-5 CST or email us at techsupport@wenproducts.com. COMPONENTS Hose Outlet Gasket... -
Page 7: Assembly
ASSEMBLY WARNING: Do not attempt to plug in or operate your tool until the entire operator’s manual has been read and understood. Failure to do so could result in personal injury and damage to the tool. 1. ASSEMBLING THE CASTERS 2. - Page 8 ASSEMBLY 5. ASSEMBLING THE COLLECTOR 6. INSTALL THE UPPER SUPPORT POLE Fig. 5 Mount the collector (C) onto the two poles in the front as shown. Make sure that the side port of the collector is facing the motor assembly to prepare it for hose connection in Step 7.
- Page 9 ASSEMBLY 9. INSTALLING THE FILTER BAG Hang the filter bag (white) onto the hook of the upper bag support pole. Attach the bag over the top opening of the collector. Secure it with a bag clamp (O). 10. INSTALLING THE COLLECTION BAG Attach the plastic collection bag over the bottom opening of the collector around the rubber strip.
-
Page 10: Operation
Empty the collection bag on a regular basis. This will allow the machine to operate at its maximum efficiency. Replacement collection bags can be purchased from wenproducts.com by searching the part number 3403-036. WARNING: Always wear the appropriate respirator or dust mask and safety glasses when emptying the collection bags. -
Page 11: Maintenance
MAINTENANCE WARNING: Always ensure that the tool is switched off and the plug is removed from the outlet before making any cleaning, adjustments or maintenance procedures. Servicing of the tool must be performed by a qualified technician. 1. Before each use, inspect the general condition of the tool. Check for: •... - Page 12 EXPLODED VIEW AND PARTS LIST...
- Page 13 EXPLODED VIEW AND PARTS LIST Parts No. Description Qty. Parts No. Description Qty. 3403-001 Caster 3403-030 Outlet 3403-002 Nut M8 3403-031 Hose Clamp 3403-003 Base Plate 3403-032 Hose ø125x75mm 3403-004 Washer ø8 3403-033 Collector 3403-005 Motor Base 3403-034 Bag Clamp...
-
Page 14: Warranty
LIMITED TWO YEAR WARRANTY WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this commitment and our dedication to quality. LIMITED WARRANTY OF WEN CONSUMER POWER TOOLS PRODUCTS FOR HOME USE GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN con- sumer power tools will be free from defects in material or workmanship for a period of two (2) years from date of purchase. - Page 16 THANKS FOR REMEMBERING...
