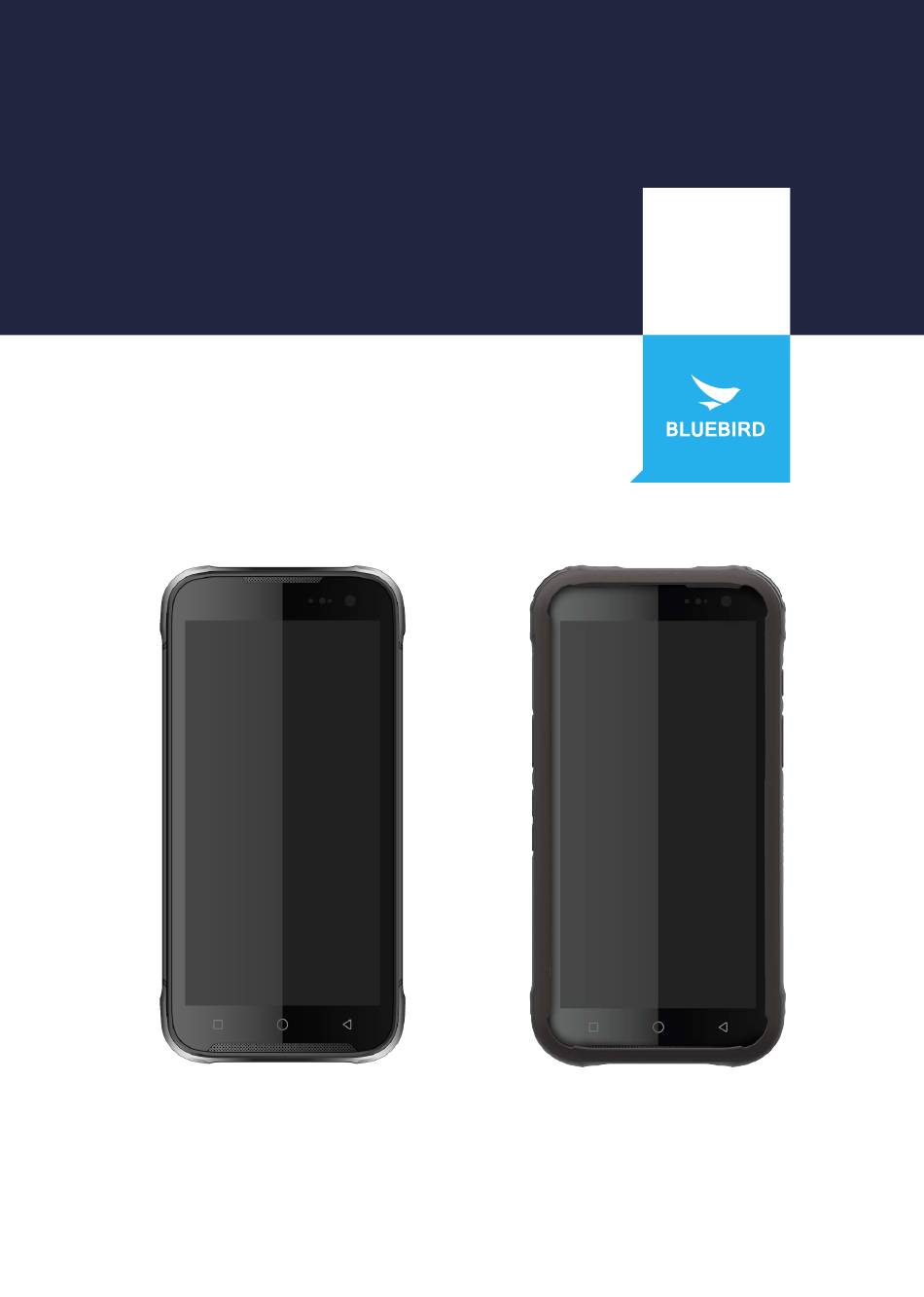

- Page 1 EF550 QUICK GUIDE...
-
Page 2: This User Manual Is Protected By Copyright
BLUEBIRD is an emerging global brand, striving to lead the market in performance and mobility. Their products represent reliability, innovation, and innovative technology. Bluebird is a registered trademark from the global brand of Bluebird Inc. and is copyright protected. • Bluebird and stylized Bluebird Logo are registered trademarks and symbols of Bluebird Inc. -
Page 3: Safety Information
1 Safety Information 1.1 Symbols This manual uses the following symbols to indicate hazards and additional information. Symbol Name Description Warning Indicates situations that could cause injury to yourself or others. Caution Indicates situations that could cause damage to your device or other equipment. Note Indicates additional information that can help you get the most out of the device. -
Page 4: Frequency Interference
Safety Information 1.3 Environment • Do not use the device while driving or operating heavy machinery. Doing so may result in death or serious injury. • Do not use the device in locations with combustible goods. Doing so may result in an explosion. •... -
Page 5: Package Contents
2 Overview 2.1 Package Contents The package includes: -EF550 Battery USB Cable (Type-C), Adapter EF550 Device -EF550R Battery USB Cable (Type-C), Adapter EF550R Device The illustrations may differ from your actual items. -

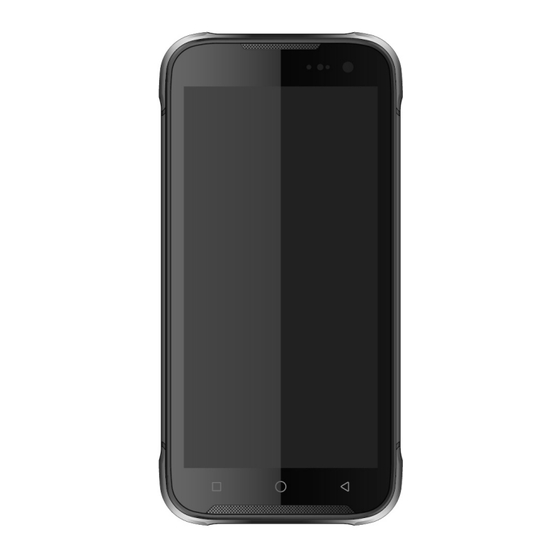

Page 6: Your Device
Overview 2.2 Your Device 2.2.1 Front -EF550R -EF550 Microphone Microphone Proximity sensor Proximity sensor Light sensor Light sensor Receiver Receiver Front Camera Front Camera Charging / Charging / Notification LED Notification LED Power button Power button Scan button Scan button... - Page 7 Overview 2.2.3 Bottom and Top -EF550 Charging connector Headset jack C-type connector Barcode scanner -EF550R Charging connector Headset jack C-type connector Barcode scanner...
-
Page 8: Getting Started
3 Getting Started 3.1 Installing the Cards 3.1.1 Inserting a Nano SIM card Remove the card slot. Insert a nano SIM cards into the slots. Make sur ds into the slots. Make sure that the gold contacts on the car e that the gold contacts on the cards ar ds are facing down. -
Page 9: Inserting A Microsd Card
Getting Started 3.1.2 Inserting a Micro SD Card Remove the card slot. Insert a micro SD cards into the slots. Make sure that the gold contacts on the cards are facing down. Insert the card slot on your device. 3.1.3 Removing the Cards Remove the card slot . - Page 10 Getting Started 3.1.4 Inserting a SAM Card Push the SAM card toward the arrow. Make sure that the gold contacts on the cards are facing up. 3.1.5 Removing a SAM Card Push SAM card deeply toward inside by finger. It will come out and take that part out.
-
Page 11: Installing The Battery
Getting Started 3.2 Battery 3.2.1 Installing the Battery 2 Insert the bottom of the battery into the device. 1 Place the back of the device facing up. 3 Press the top of the battery to fully insert 4 Slide down the battery lock to lock the battery. the battery in the device. -
Page 12: Removing The Battery
Getting Started 3.2.2 Removing the Battery Slide up the battery lock to unlock the battery and pull the battery out. Before removing the battery, turn off the power. Failure to do so it may cause damage to the device. 3.2.3 Charging the Battery 1 Plug the C-type end of the charger into the multi-purpose jack on the buttom of the device. -
Page 13: Turning The Device On Or Off
4 Basics 4.1 Turning the Device On or Off 4.1.1 Turning the Device On Press and hold the Power button for a few seconds. 4.1.2 Turning the Device Off Press and hold the Power button for a few seconds. Tap Power off. •... -
Page 14: Using The Touch Screen
Basic 4.2 Using the Touchscreen Use finger gestures to use the touchscreen effectively. • Do not touch the screen with any sharp objects. • Do not apply too much pressure to the touchscreen. Gesture Name Description Briefly touch an item to open, launch, or select it. Place two fingers on the screen and spread them apart to zoom Zoom in or out in. -
Page 15: Using The Home Screen
Basic 4.3 Using the Home Screen The Home screen is the starting point for all apps and features. It displays icons, shortcuts, and widgets for apps. Drag upward from the bottom of the screen. Applications will be displayed on the screen. To view other pages, swipe left or right. -
Page 16: Connecting To A Wi-Fi Network
Basic 4.4 Connecting to a Wi-Fi Network Connecting to a Wi-Fi network is an easy way of accessing the Internet. When you are out, you can connect to Wi-Fi networks in public places. On the Home screen, tap > Wi-Fi. Make sure to turn Wi-Fi on. -
Page 17: Battery Hot Swap
Basic 4.6 Battery Hot Swap -This device supports Battery Hot Swap function. -Battery Hot Swap is a function to replace the battery with a spare battery while using the device without Power Off. Battery hot swap operation procedure: Turn off the LCD by pressing the power button. After unlock the battery locker, remove the battery inside the device. -
Page 18: Device Specification
5 Device Specification Physical Characteristics Dimensions (W x H x D) 160.6 x 79 x 16.35 mm Weight 288g Display 5.45” HD+ (1440 x 720), TFT-IPS Imager Window Corning Gorilla Glass Dual mode capacitive touch with stylus or bare or gloved fingertip input (conductive stylus sold separately);... -
Page 19: Performance Characteristics
Android 10.x with GMS • - OS upgradeable through Android R Operating System • - Upgrading to new supported version of Android requires the purchase of a Bluebird warranty Servicecontract. Specifications subject to change without notice. 4GB RAM / 32GB UFS Flash Memory... -
Page 20: Communication Options
Device Specification Communication Options WWAN Radio GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+LTE WiFi: IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w; WLAN Radio Wi-Fi™ certified; IPv4, IPv6, 2x2 MU-MIMO 5GHz: 802.11a/n/ac — up to 866.7 Mbps WLAN Data Rates 2.4GHz: 802.11b/g/n — up to 300 Mbps WPAN Radio Bluetooth V5.0 BLE, Class 2 Accessories '1 or 4 slot charging cradle (Includes a bay for Spare Battery Charging.) -
Page 21: Troubleshooting
You can contact your local sales representative or you can send the device via a delivery service to Bluebird’s Korean headquarters. When sending the package, make sure you pay for the shipping fee in advance. When the repair is finished, Bluebird will cover the shipping cost. -
Page 22: Warranty And Support
• We receive the products for our after-sales service through mail, delivery services and hand delivery only in principle. • If you bought the product from a party other than Bluebird or an authorized Bluebird reseller, you need to register the product before using our after-sales service. - Page 23 Warranty and Support Charged services • In the following cases, it will be charged when requesting for after-sales service. –– Service request due to inappropriate use of the device by the customer –– Loss of PIN number –– Use of programs that might affect the program (over-clock, forceful changes in the input of the system, personal developments) •...
-
Page 24: Warranty Certificate
Bluebird will repair or replace the defective product according to its warranty policy. • If the defective product within the range of warranty is not repairable or replaceable, Bluebird shall refund the purchasing price within a designated period from the date of receiving a notice of defect. -
Page 25: Fcc Warning
FCC Warning • This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: • (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. •... - Page 26 IC Warning This device complies with Industry Canada license-exempt RSS standard(s).Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device.
- Page 27 (GMT Time: +9 Hours) The center is closed on Saturdays, Sundays, and Korean national holidays. Customer Service Center #1103, Gplus Kolon Digital Tower 11F, Digital-ro 26-gil 123, Guro-gu, Seoul, Republic of Korea(08390) Bluebird constantly strives to bring utmost satisfaction to all our customers.
