- Page 1 Hardware Manual For Accent ® 1400 Devices with Empower ™ Software ACN140020hw-v1.01...
- Page 2 The MINSPEAK®, SEMANTIC COMPACTION®, UNITY®, and UNIDAD® trademarks are under license from Semantic Compaction Systems, Inc. in the United States and other countries. The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by PRC-Saltillo is under license. CAVIWIPES is a trademark of Metrex Research LLC.
- Page 3 End User Licensing Agreement You have acquired a PRC device which includes software licensed by PRC-Saltillo from Microsoft Licensing Inc. or its affiliates ("MS"). Those installed software products of MS origin, as well as associated media, printed materials and "online" or electronic documentation (software) are protected by international intellectual property laws and treaties.
-
Page 4: Table Of Contents
Cleaning and Disinfecting ......................30 Routine Cleaning and Disinfecting ..................30 Disinfecting a Device and Accessories for Multiple Users ..........31 Disposing of the Device or Batteries ..................31 Appendix A: Compliance Information ..................32 Accent 1400 Hardware Manual Page 4... -
Page 5: Introduction
Follow all rules for appropriate wireless device use. Do not use this device close to sources of RF/RFID radiation or you may encounter interference. Move away, if possible, from the source of the interference. Accent 1400 Hardware Manual Page 5... - Page 6 Should read and follow the directions from the manufacturer of the implantable medical device. If you have any questions about using your wireless mobile device with an implantable medical device, consult your health care provider. Accent 1400 Hardware Manual Page 6...
-
Page 7: Overview Of Features

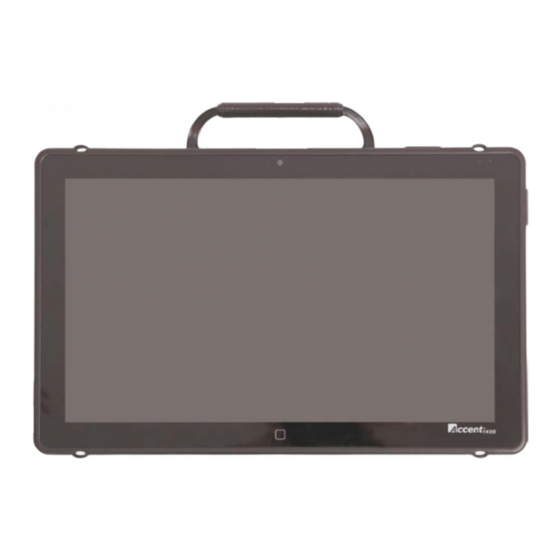

Overview of Features Front View Light Sensor Camera Camera Indicator Carry Strap Holder Carry Strap Holder Power Button Handle Battery/Charging LED Power LED Volume Button Display Screen Tools Key Carry Strap Holder Carry Strap Holder Accent 1400 Hardware Manual Page 7... -
Page 8: Back View
Y-adapter. If you have a joystick plugged in and it does not respond normally, reverse the way it is plugged in (plug switch A into jack B, switch B into jack A). Accent 1400 Hardware Manual Page 8... -
Page 9: Side View
USB 2.0 Ports ** SD Card Slot USB 3.0 Port * HDMI Port * The USB 3.0 port supports USB 3.0 and USB 2.0 accessories. ** The USB 2.0 ports support USB 2.0 accessories only. Accent 1400 Hardware Manual Page 9... -
Page 10: Commonly Used Features
To prevent possible hearing damage, do not listen to Button earphones at high volume levels for long periods. Tools Key Press the Tools key twice to open the Toolbox. Tools Key Using the Cameras Accent 1400 Hardware Manual Page 10... - Page 11 The front camera is located in the center of the device at the top of the display. Front Camera The rear camera is located on the upper left side on the back of the device. Rear Camera Accent 1400 Hardware Manual Page 11...
-
Page 12: Charging The Batteries
15% (about three hours) of its power remaining, the LED will blink yellow. When the device is plugged into the charger: The battery/charging LED will glow yellow. When the device is fully charged, the LED will turn green and remain on until the charger is unplugged. Accent 1400 Hardware Manual Page 12... -
Page 13: Replacing Or Removing The Bumper Guards
5. Repeat steps 1 – 4 for the other three corners. To remove the bumper guards: Remove the mounting screws, pull the bumper guards off the corners, and store the bumper guards and screws in a safe location in case you need them later. Accent 1400 Hardware Manual Page 13... -
Page 14: Positioning Or Removing The Wire Stand
2. Snap the stand’s bottom support loose from its latches on the back of the device. 3. Rotate the stand away from the back of the device until the legs latch into place. Wire stand legs latched in place Accent 1400 Hardware Manual Page 14... -
Page 15: Removing The Wire Stand
Pull the stand free and put it in a safe place in case you need to use it later. Important! If you reattach the stand, be sure to secure the legs with the holders to prevent someone from pulling it loose accidentally. Accent 1400 Hardware Manual Page 15... -
Page 16: Removing Or Reattaching The Handle
Mini USB Connector. See “Attaching the Port Cover” on page 17. To reattach the handle: Remove the port cover, line up the holes in the handle with the holes on the back of the device, and insert the two screws. Accent 1400 Hardware Manual Page 16... -
Page 17: Attaching The Port Cover
Remove the two screws that hold the port cover in place. Use the screws to mount a NuPoint module or to reattach the handle. Note: Store the port cover where you can find it if you need to use it again. Accent 1400 Hardware Manual Page 17... -
Page 18: Mounting The Ir Reflector
2. Align the holes in the reflector with the empty holes in the handle, port cover, or NuPoint module. Important! Make sure the reflective shield is aimed downward toward the back of the device, as shown in step 3 on the next page. Accent 1400 Hardware Manual Page 18... - Page 19 Reflector side pointing downward Insert the two short screws NuPoint Module: Reflector side pointing downward Insert the two long screws Port Cover: Reflector side pointing downward Insert the two short screws 4. Tighten the screws. Accent 1400 Hardware Manual Page 19...
-
Page 20: Applying A Screen Protector
8. Wipe the protector with a lint-free cloth to remove any fingerprints. Hint: Regularly wipe off the protector with a damp lint-free cloth to remove fingerprints, smudges, etc. If the protector becomes too dirty, peel it off and replace it with a new protector. Accent 1400 Hardware Manual Page 20... -
Page 21: Removing Or Replacing The Device Frame
4. Use the two tabs to snap the bottom of the 5. Lift out the tabs at the top of the device and frame loose from the device. lift the frame off the device. Tabs on bottom of frame Accent 1400 Hardware Manual Page 21... -
Page 22: Attaching The New Frame
4. Push the sides down until they fit over the edges of the device. 5. Pull out slightly on the bottom of the frame 6. Push the bottom of the frame over the bottom edge of the device. Snap the frame into place. Accent 1400 Hardware Manual Page 22... -
Page 23: Attaching The Device Frame More Securely
When the Device Frame is Attached Securely After you attach the frame securely to the device, you can attach a Keyguard or TouchGuide to the frame. See “Attaching the Keyguard” on page 24 or “Attaching the TouchGuide” on page 26. Accent 1400 Hardware Manual Page 23... -
Page 24: Attaching, Raising, And Removing A Keyguard
4. Press down on the bottom portion of the Keyguard to snap the tabs into place. Note: If the Keyguard tabs at the bottom do not snap into place, make sure that the Keyguard is not upside-down. (See step 1.) Accent 1400 Hardware Manual Page 24... -
Page 25: Raising The Keyguard
3. Lift upward with your fingers to bend the middle of the Keyguard upward slightly. Bottom tabs already pulled loose from the device. 4. Pull the pins out of the openings at the top of the device frame. Accent 1400 Hardware Manual Page 25... -
Page 26: Attaching Or Removing A Touchguide
Note: Avoid pulling on the thin pieces of plastic. 1. Grasp the thicker plastic above the first row of keyholes. 2. Pull out and down on the TouchGuide until the upper tabs pop out. Grasp the thicker plastic Accent 1400 Hardware Manual Page 26... -
Page 27: Attaching A Carry Strap
6. Insert the loop connector into the strap securely to the device. connector until they click and hold together. 7. Repeat these steps to connect the other end of the strap to the device. Accent 1400 Hardware Manual Page 27... -
Page 28: Removing The Qrm Mounting Plate
3. Place washers on two of the screws and insert them through the holes at the top of the plate. 4. Insert the remaining two screws through the bottom holes of the plate. 5. Tighten the screws. Accent 1400 Hardware Manual Page 28... -
Page 29: Mounting A Nupoint Module
4. Tighten the two screws you removed in step 1 to secure the module to the device. The NuPoint module is ready to set up for use. For detailed instructions on customizing settings, refer to the NuPoint User’s Guide. Accent 1400 Hardware Manual Page 29... -
Page 30: Cleaning And Disinfecting
Try using the device. If it does not work, call the PRC Service Department and tell them what happened. They may ask you to send in your device for servicing. Accent 1400 Hardware Manual Page 30... -
Page 31: Disinfecting A Device And Accessories For Multiple Users
Please dispose of your device in accordance with your local, state, and/or federal electronic recycling laws. Battery Disposal If the batteries in your device need to be replaced, dispose of the old batteries in accordance with your local, state, and/or country regulations. Accent 1400 Hardware Manual Page 31... -
Page 32: Appendix A: Compliance Information
Consult the dealer or an experienced radio/TV technician for help. This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe B respect toutes les exigences du Règlement sur le matériel brouiller du Canada. Accent 1400 Hardware Manual Page 32...
