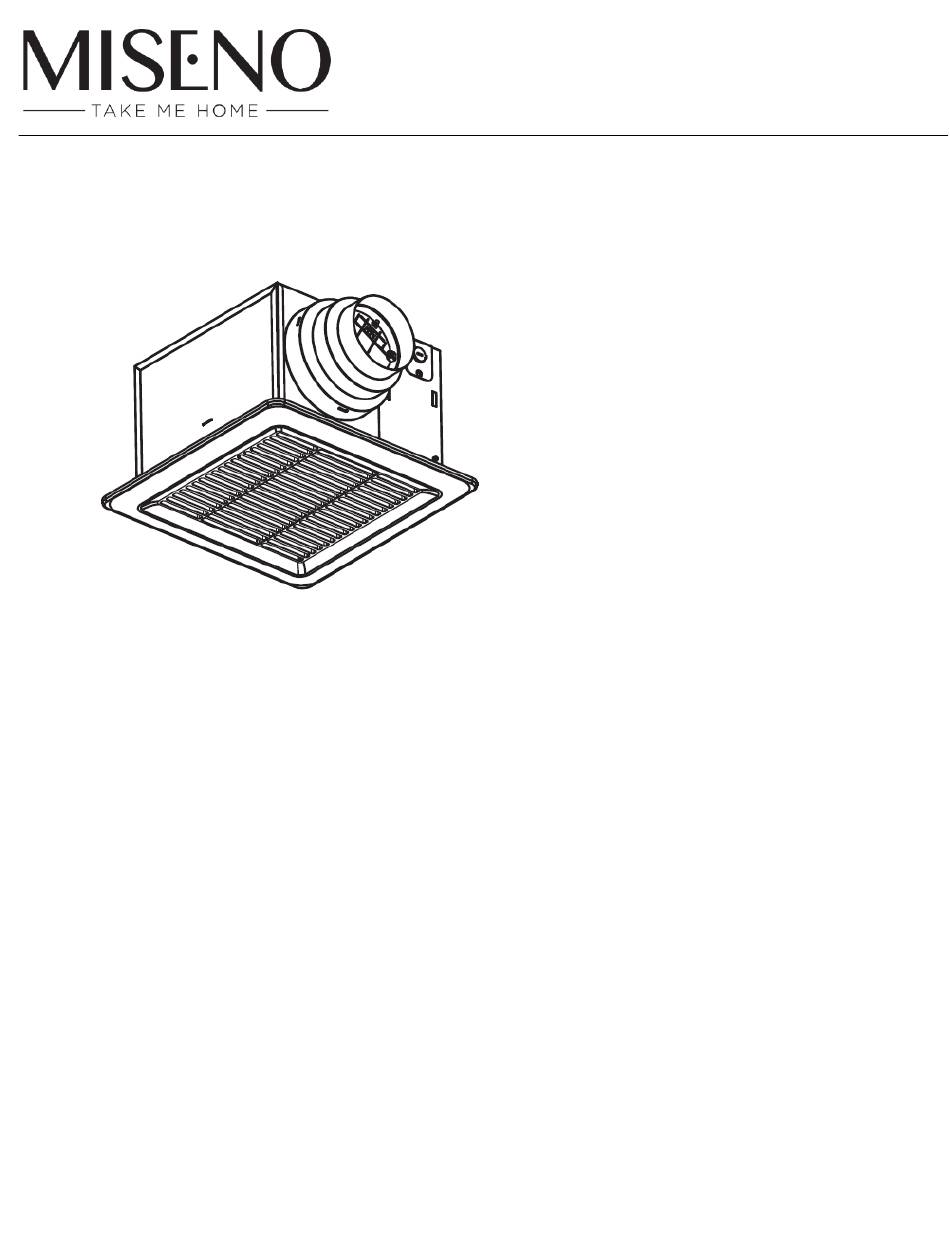

miseno MBF080AWH Installation Instructions Manual

Ventilation fan

Hide thumbs

Table of Contents

Quick Links

Download this manual

READ AND SAVE THESE INSTRUCTIONS!

This manual contains important information regarding the proper installation, use, and maintenance of your

Miseno Product. Failure to comply with the instructions found in this manual could result in personal injury or

property damage. Please read and follow the instructions and supplemental information found in this manual

to ensure proper performance of your Miseno Product. Please save this documentation for future reference.

REV 1.0 07292020

INSTALLATION INSTRUCTIONS

Model No.

Need help?

Do you have a question about the MBF080AWH and is the answer not in the manual?

Questions and answers

Summary of Contents for miseno MBF080AWH

Page 1: Table Of Contents
This manual contains important information regarding the proper installation, use, and maintenance of your Miseno Product. Failure to comply with the instructions found in this manual could result in personal injury or property damage. Please read and follow the instructions and supplemental information found in this manual to ensure proper performance of your Miseno Product.
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION Improper installation or use of this product can cause damage to this product and/or injury to the user. If you have questions, please contact the manufacturer. Please review the rating label of this product for electrical and other technical data.
Page 3: Introduction
Thank you for purchasing this Miseno Product. This manual contains important information regarding the proper installation, use, and maintenance of your Miseno Product. Failure to comply with the instructions found in this manual could result in personal injury or property damage.
Page 4: Parts Identification And Product Dimensions
PARTS IDENTIFICATION AND PRODUCT DIMENSIONS Please refer to the below diagram for a general overview of your Miseno ventilation fan. Page | 4...
Page 5: Required Tools
REQUIRED TOOLS Tools needed for the installation of your bath fan are not included with this product. Below is a list of tools and supplies that will assist you with the proper installation of your product. Phillips Head Screwdriver Tape Measure Duct Tape Drill w/ Phillips Head Driver Bit Flathead Screwdriver...
Page 6: Notes For Best Performance
NOTES FOR BEST PERFORMANCE • A 4”, 5” or 6” circular rigid duct is recommended for best performance. • The ducting from this fan to the outside of the building has a strong effect on the air flow, noise, and energy use of the fan.
Page 7: Installation
INSTALLATION This unit is intended to be installed in a ceiling. The joists where the fan is to be installed must be a minimum of 2” x 4” material to ensure adequate support. The joists should be spaced 12” on center or up to a maximum of 24” on center. This product is designed for installation in ceilings with a minimum of 9”...
Page 8: 16-24" Joist Spacing
16-24” Joist Spacing 1. If the joist spacing is 16 to 24 inches bend down the 8 positioning tabs as shown in Figure 2a. Then unfold the suspension bracket as shown in figure 2b. 2. Secure one side of the suspension bracket assembly to one joist by drilling in the two (2) ST4x20 screws attached to the assembly as shown in Figure 3.
Page 9 4. Push the fan housing upwards until the housing is stopped by the buckle on the adapter. Hold the fan housing in place and secure it with three (3) ST4x30 screws as shown in Figure 5. Page | 9...
Page 10: Connect Outlet Duct To Home Vent Duct
Connect Outlet Duct to Home Vent Duct Circular ridged ducting with minimal bends is recommended for best air flow performance. A 4”, 5” or 6” circular ridged duct is needed to connect to the duct adapter as shown in Figure 6. Install the circular ridged duct and secure it with clamps or ties, and seal it with mastic or approved duct tape.
Page 11: Wiring Diagram
Wiring Diagram WARNING Failure to turn OFF power supply prior to installation of this appliance can result in electrical shock, fire, and/or death. Attach Louver Insert the mounting springs into the slots and mount the louver as shown in Figure 8. Once inserted correctly, the springs will pull the louver towards the fan housing for a snug fit.
Page 12: Cleaning And Maintenance
CLEANING AND MAINTENANCE Periodic maintenance should be performed to ensure proper performance and long product life. Routine maintenance should be performed yearly, however more frequent maintenance may be required depending on the environment in which the unit has been installed. WARNING! Disconnect from power source before performing maintenance.
Page 13: Troubleshooting
TROUBLESHOOTING Problem Possible causes Solutions Verify that the CFM rating on the fan matches The CFM rating is too high. the size requirements for the room in which the unit is installed. Check the damper to ensure it is opening and The damper is damaged or not closing properly.
Page 14: Specifications
SPECIFICATIONS Model No. MBF080AWH MBF110AWH Voltage/Frequency AC 120V/60Hz AC 120V/60Hz Color White White Duct Diameter 4”, 5” and 6” 4”, 5” and 6” Speed (RPM) 1110 Noise (Sones) Power Consumption (W) Airflow (CFM) Dimensions Refer to Page 4 Refer to Page 4 Net Weight 9.7 lbs.
Page 15: Warranty
Seller. Miseno is a registered trademark of Build.com, Inc. For additional assistance or service call: 1.855.480.2915 or visit our website at www.miseno.com Page | 15...

This manual is also suitable for:

Mbf110awh
