LEMEGA MSY3 Owner's Manual

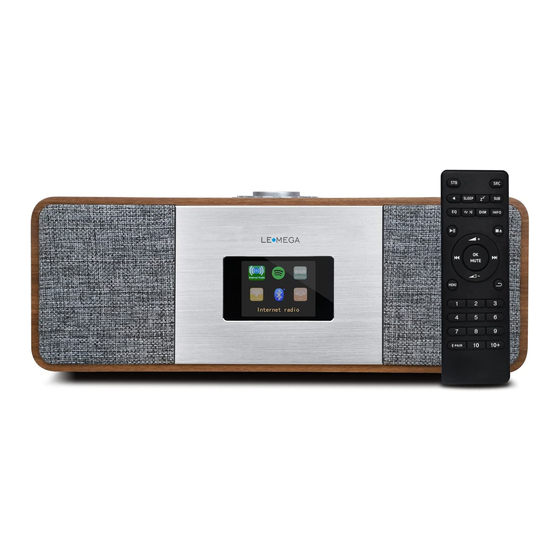

All-in-one music system
Hide thumbs
Table of Contents

Advertisement

Quick Links

LIFE & ALOUD
MSY3 ALL- I N -ON E M U SIC SY STE M
Owner's manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSY3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LEMEGA MSY3

Summary of Contents for LEMEGA MSY3

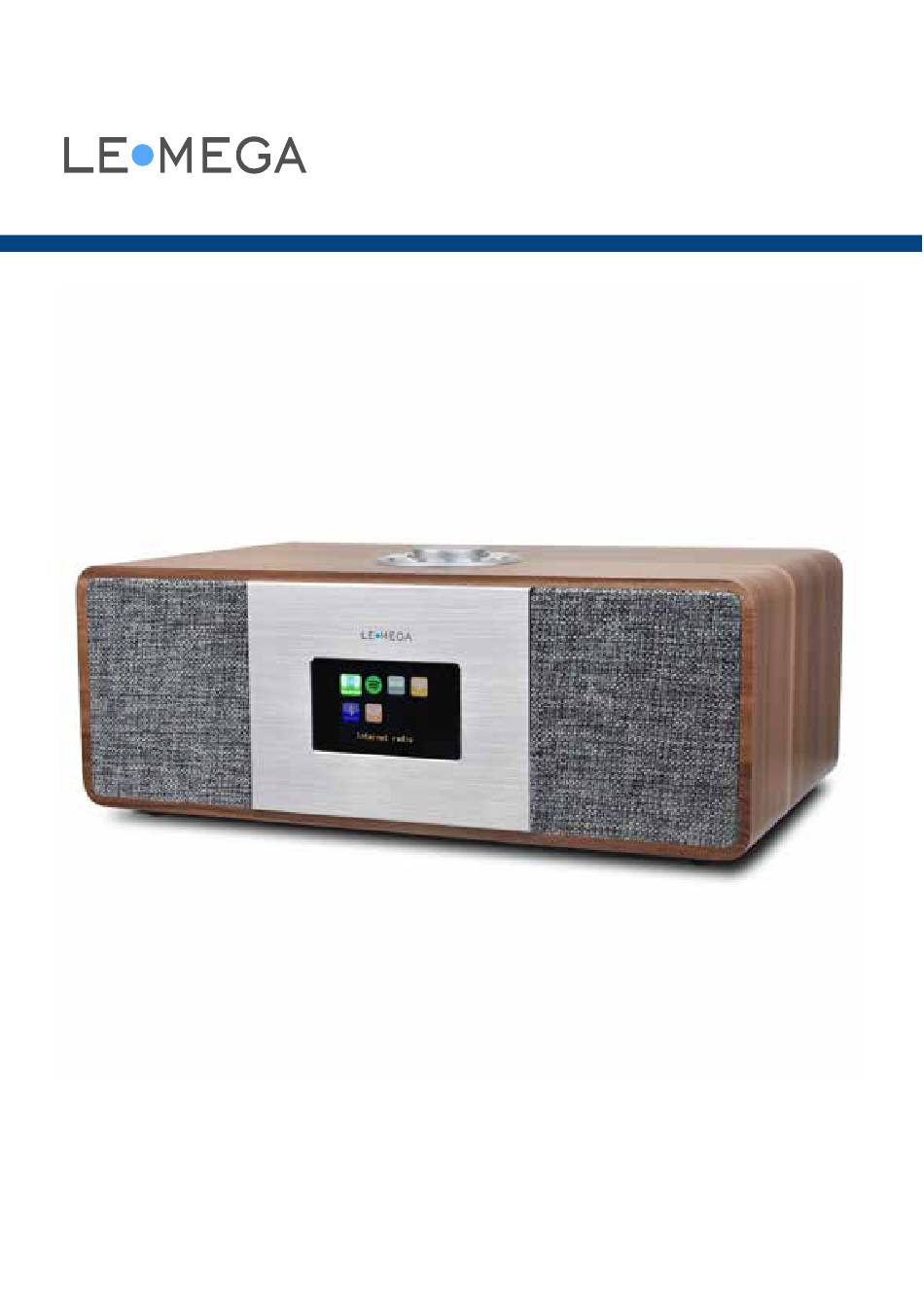

  • Page 1 LIFE & ALOUD MSY3 ALL- I N -ON E M U SIC SY STE M Owner's manual...

  • Page 2: Table Of Contents

    Table of content …………………………………………...…..3 1. Introduction ……………………………………………..3 1.1 Safety ..……………………………………………..5 1.2 Features ………………………………………...…..5 1.3 Carton contents …………………………….……..…....5 1.4 External resources ………………………………..…………... 6 1.5 Conventions used in this manual …………………………….……………..….. 6 2 Controls, connectors and display ……………………………………....

  • Page 3: Introduction

    …………………………………....24 9 Bluetooth mode ………………………………….…..... 25 10 Alarms and sleep ………………………………….….………. 25 10.1 Alarms …………………………………....26 10.2 Sleep ………………………………..... 26 11 Software upgrade and factory reset …………………………….……....26 11.1 Software upgrade …………………………………....27 11.2 Factory reset 12 Troubleshooting and error messages …………………………………....27 …………………………………....
  • Page 4 • Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.

  • Page 5: Features

    1.2 Features This manual describes how to use the MSY3, an advanced but easy-to-use Wi-Fi connected audio system with the following modes: • Internet Radio with access to thousands of stations by wifi streaming. ‘Listen again’ broadcasts and podcasts •...

  • Page 6: Conventions Used In This Manual

    • A wireless (Wi-Fi) network (provided through a router) with Appropriate permissions and password if necessary (for Internet radio) • Broadband Internet access (for Internet radio mode and Spotify mode and Internet Software Update) • An iOS or Android device (for using control apps). •...
  • Page 7 b. VOLUME: Turn to the button to adjust the volume up or down when playback. c. MUTE: Press to the button to mute the music when playing. d. SNOOZE: Press the button to snooze a set time when alarm sounding. e.

  • Page 8: Connectors

    2.2 Connectors. As shown below has connectors (from left to right) for the following: MODEL : MSY3 ALL-IN-ONE MUSIC SYSTEM INPUT : DC 12V 2.5A DC 12V/2.5A AUX IN 5V 1A Antenna DC in (12V) Headphone socket Aux in (to connect external MP3 music source from the iPod or other devices)

  • Page 9: Operation

    Press select button to that mode. The last station or track previously used in that mode is selected. If this is not possible, MSY3 scans for relevant stations, networks, or prompts the user for appropriate input. See the relevant Mode section for details of how to use each listening mode.

  • Page 10: Started And Setup

    The Main menu presents an alternative method for selecting listening modes plus sleeps and alarm functions. Started and setup MSY3 is easy to use. To play DAB or FM radio, all you need is a 12V/2.5A power adapter; For Internet-connected modes such as Internet radio, you need a broadband...

  • Page 11: Setup Wizard

    Internet connection. 3.1 Setup wizard When MSY3 is started for the first time, it runs through a setup wizard to configure settings for date/time and network. Once this has finished, the system is ready to use in most modes. Note: To change these settings later, select Menu > System settings >.
  • Page 12 Note that if you are updating the time from DAB or FM, the Daylight savings option has no effect on the clock’s time. MSY3 will auto-update from the selected source when time information is available. Manual set If you set No update, the wizard now prompts you to set the time and date manually.
  • Page 13 Wi-Fi Protected Setup (WPS). To connect MSY3 to your network, you need a Wi-Fi wireless router, together with password key if set Select WLAN region/country >Wi-Fi network (SSID), and then select a network from the list. If the network is open (non-encrypted), MSY3 connects and no further details are required;...

  • Page 14: Other Settings

    WPS encrypted network, see your WPS router’s instructions. On completion MSY3 connects to the selected network. If connecting fails, MSY3 returns to a previous screen to try again. To exit the process use the Back/Menu button 3.2 Other settings Sections for those modes.
  • Page 15 EQ’ option, with custom bass, and treble settings. 3.2.2 Network MSY3 remembers the last four wireless networks it has connected to, and automatically tries to connect to whichever one of them it can find. You can see the list of registered networks through Menu >...

  • Page 16: Internet Radio Mode

    Open the settings to adjust the equalizer, set sleep timer and other functions easily. Internet radio mode MSY3 can play thousands of radio stations and podcasts from around the world though a broadband Internet connection. When you select Internet radio mode, MSY3 contacts the Frontier Silicon Internet radio portal to get a list of stations, organized into different categories like Country, Most popular and Genre.

  • Page 17: Country

    4.1 Country This menu item is localised for each country, for example, ‘UK’, please update accordingly. Presents a sub-menu to search for stations using a variety of categories, for example, local stations, BBC stations, Genres or stations from a specific city. Choose the required category and either a further list of sub categories is shown, or (if there are no further cub-categories) the available stations for the chosen category are listed.

  • Page 18: Location

    4.4 Location To select an Internet broadcast from a particular location, select Menu > Location >. Select a continent from the menu and a list of countries available is presented, select a country and the available internet radio stations are presented. Choose a radio station from the list to tune to that station.

  • Page 19: Spotify Connect

    track information is available, this is also shown. To view further information, press Info . Each time you press Info, another set of information is displayed, cycling through the following details: • Slogan (default; where available) • Language/Location • Codec and sampling rate •...

  • Page 20: Dab Radio Mode (Optional)

    4. Touch the picture of the album at the bottom left of the screen. Then press Connect icon 5. Press MSY3 to select your radio and it will start playing from you MSY3. Note that radio is that " LEMEGAxxxxxxxxxxxx " ( 12-digit number is the MAC address of the radio ) in Spotify app.

  • Page 21: Selecting Stations

    If reception was not good for the original scan (for example the antenna was not up),this may result in an empty or incomplete list of available stations. If you have poor reception of some stations (burbling), you may wish to list only stations with good signal strength.

  • Page 22: Fm Radio Mode

    (for example, classical music while cooking). To change the DRC of the MSY3, select Menu > DRC, and then DRC high, DRC low or DRC off.

  • Page 23: Now Playing Information

    1).Connect the external audio source to the Aux In (RCA) stereo socket. 2). Either press Mode until the display shows AUX in or select Menu> Main menu > AUX in. 3). Adjust the volume of MSY3 (and, if necessary, the audio source device) as required.

  • Page 24: Bluetooth Mode

    You should not have to pair your device again. Depending on your device, you may need to make multiple attempts at Pairing and/or Connecting to the “LEMEGA MSY3”, but please give your device adequate time to Pair or Connect before repeating the process.

  • Page 25: Alarms And Sleep

    “Forget this Device”, then repeat the Pairing process. Depending on your device. You may need to make multiple attempts at Pairing and/or Connecting to the MSY3, but please give your device adequate time to Pair or Connect before repeating the process.

  • Page 26: Sleep

    11 Software upgrades and factory reset 11.1 Software upgrade From time to time, MSY3 may make software upgrades available with bug Fixes and/or additional features. You can either check manually, or set MSY3 to check periodically automatically (this is the default). If MSY3 detects that newer software is available, it asks if you want to go ahead with an update.

  • Page 27: Factory Reset

    permanently damage the unit. To turn automatic checking on or off, select Menu > System settings >Software update >Auto-check setting. 11.2 Factory reset A factory reset resets all user settings to default values, so time/date, network configuration and presets are lost. However, the radio’s current software version is maintained, as is registration with the Internet radio portal.

  • Page 28: Troubleshooting

    Users credentials available on the MSY3 audio system. Connect to the audio system using a Spotify Connect account. ‘Press Play…’ Spotify mode – Waiting for playback information; for example, when the audio playback is moved by the Spotify app to a different audio speaker or the smart device itself.
  • Page 29 Problem Cause Solutions Cannot connect to Internet connection down Check that Internet is working for Internet a computer connected to the same network Firewall preventing access Check the following ports are open: UDP and TCP ports 80 and 123; DNS port 53. Some Internet radio stations may require additional ports to be opened.

  • Page 30: Technical Specifications

    13 Technical Specification： Model: MSY3 ALL-IN-ONE MUSIC SYSTEM Type: WiFi/Spotify/Internet radio/DAB/DAB+/FM/AUX/Bluetooth Music system Speaker: 2 x 3” (full range) Power: RMS 30W Power Supply: 12V/2.5A power adapter Dimension (mm): 350W x 140H x 235D Weight: 3.50 KG Specifications are subject to change without notice If you have any questions or suggestions, please share with us.
  • Page 32 LIFE & ALOUD MSY3 AL L - I N- O NE MUSIC S YS T EM If you have any questions or suggestions, please share with us. info@lemegaaudio.com www.lemegaaudio.com Made in China...
