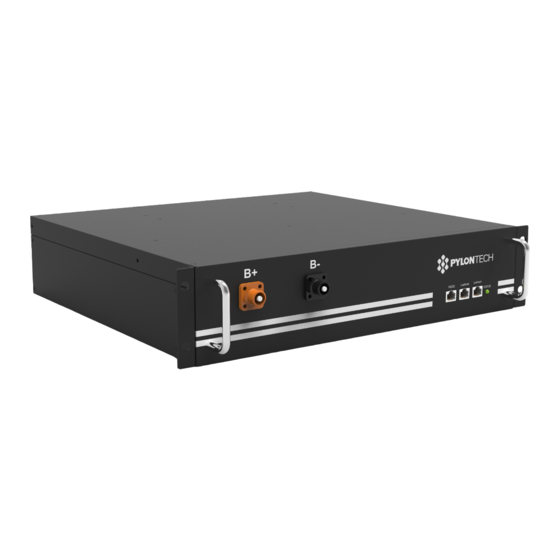

Lithium-Ion Phosphate Battery
Phantom-X1 Product Manual
Information Version: 1.0
No. 73, Lane 887, ZuChongzhi Road, Zhangjiang Hi-Tech Park
Pudong, Shanghai 201203, China Zip Code: 201203
1 / 21
Pylon Technologies Co., Ltd.
Email:
service@pylontech.com.cn
Website:
http://www.pylontech.com.cn
Tel: 021-51317697
Fax: 021-51317698
16BISV0903
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Pylon Technologies Phantom-X1
Summary of Contents for Pylon Technologies Phantom-X1
- Page 1 Lithium-Ion Phosphate Battery Phantom-X1 Product Manual Information Version: 1.0 Pylon Technologies Co., Ltd. No. 73, Lane 887, ZuChongzhi Road, Zhangjiang Hi-Tech Park Pudong, Shanghai 201203, China Zip Code: 201203 Tel: 021-51317697 Fax: 021-51317698 Email: service@pylontech.com.cn Website: http://www.pylontech.com.cn 1 / 21...
-
Page 2: Table Of Contents
This manual introduces Phantom-X1 from Pylontech. Phantom-X1 is an high voltage Lithium-Ion Phosphate Battery storage system. Please read this manual before you install the battery and follow the instruction carefully during the installation process. Any confusion, please contact Pylontech immediately for advice and clarification. -
Page 3: Safe Handling Of Lithium Batteries Guide
1. Safe handling of lithium batteries Guide Warning: This product is a high voltage DC system, operated by authorized person only. Warning Before Connecting 1) After unpacking, please check product and packing list first, if product is damaged or lack of parts, please contact with the local retailer; 2) Before installation, be sure to cut off the grid power and make sure the battery is in the turned-off mode;... - Page 4 Reminded 1) Please read the user manual carefully (in the accessories); 2) If the battery is stored for long time , it is required to charge them every six months, and the SOC should be no less than 80%; 3) Battery needs to be recharged within 12 hours, after fully discharged; 4) Do not expose cable outside;...
-
Page 5: Introduction
2. Introduction Phantom-X1 is an high voltage Battery storage system based on lithium iron phosphate battery, is one of new energy storage products developed and produced by Pylontech, it can be used to support reliable power for various types of equipments and systems. Phantom-X1 is especially suitable for application scene of high power, limited installation space, restricted load-bearing and long cycle life. -
Page 6: Specifications
2.2 Specifications 2.2.1 Battery System PHANTOM-X1 Product Type (384V50AH) Cell Technology Li-ion(LFP) Battery System Capacity (kWh) 19.2 Battery System Voltage (Vdc) Battery System Capacity (AH) Battery Module Quantity (pcs) Battery Module Capacity (kWh) -
Page 7: Battery Module
2.2.2 Battery Module Product Type H48050A-15S Cell Technology Li-ion(LFP) Battery Module Capacity(kWh) Battery Module Voltage(Vdc) Battery Module Capacity(AH) Battery Module Quantity(pcs) Battery Cell Capacity(Wh) Battery Cell Voltage(Vdc) Battery Cell Capacity(AH) Battery Module Cell Quantity in Series(pcs) Battery Module Charge Voltage(Vdc) 53.25 Battery System Charge Current(Standard) Battery Module Charge Current(Normal) -
Page 8: Battery Module Front Interface
Battery Module Front Interface Power Terminal +/- To connect battery power cables in series. Status ● ● ● Status light: to show the battery module’s status (RUN , Alarm and Protection RS232 Terminal Console Communication Terminal: (RJ45 port) follow RS232 protocol, for manufacturer or professional engineer to debug or service. - Page 9 Power Terminal +/- To connect battery power cables in series. System Switch Switch the battery system’s (control module and high voltage DC power) ON/OFF. External Power Terminal +/- Connect battery system with Inverter. Dry Contact Terminal Dry Contact Terminal: provided 2 input and 4 output dry contact signal. Reset Reset Button: Long press this button to restart the battery system.
-
Page 10: Definition Of Rj45 Port Pin
Link Port 1 Link Port 1 Communication Terminal: (RJ45 port) follow CAN protocol, for communication between multiple serial battery modules and control module. Definition of RJ45 Port Pin RS485 RS232 Pin RS485B RS485A CANH CANL RS485A RS485B Status Status light: to show the battery module’s status (RUN , Alarm and Protection ●... - Page 11 Flash Normal Indicate based on Indicate based on capacity Discharge Alarm Light capacity Stop discharging, PRC Protection Light lighting Stop Abnormal Protection Light charging/discharging, PRC lighting Note: The flashing instructions, flash 1 –0.25s light / off 3.75 seconds; flash 2 - 0.5s light / 0.5s off; flash 3 - 0.5s light / 1.5s off.
-
Page 12: Installation
3. Installation 3.1 Tools The following tools are required to install the battery pack Wire cutter Crimping Modular Plier Screw Driver Set NOTE Use properly insulated tools to prevent accidental electric shock or short circuits. If insulated tools are not available, cover the entire exposed metal surfaces of the available tools, except their tips, with electrical tape. - Page 13 Module +) Power Cable - (Connection for Black/1.5m/4AWG/2 Black Surlok Battery Series - to Control Terminal Module -) Power Cable (Battery Module Orange/0.18m/4AWG/1 Orange & Serial Connection) 1 Black Surlok Terminal Battery Cascade Black/0.18m/8 Core Super 5th Communication Cable (0.18m) Class Twisted-pair Wire/RJ45 Battery Cascade Black/1.5m/8 Core Super 5th Class...
- Page 14 Standard) Standard Grounding: The Phantom-X1 modules’ is grounding based on metal direct touch between the module’s surface and rack’s surface. So it needn’t grounding cables at all. If uses normal rack, it can remove the paint at the corresponding place. Or install a grounding cable to the grounding point of the modules.
-
Page 15: Installation Location
3.4 Installation Location Make sure that the installation location meets the following conditions: The area is completely water proof. The floor is flat and level. There are no flammable or explosive materials. The ambient temperature is within the range ... - Page 16 ② Put the control module and the battery modules into the cabinet; ③ Drive the screws, to fasten each module on the rack; ④ Connect the cables between battery modules and the control module; The cables’ installation sequence is as numbers in the right diagram: 16 / 21 16BISV0903...
- Page 17 B. System turn On Double check all the power cables and communication cables. Make sure the voltage of the Inverter is same level with the battery system. (1) Switch battery system switch on. All the control modules and the battery modules’ green LED light (status and capacity) as below will be on: If all the LED light on as normal, which means the battery system is good and working.
- Page 18 C. System turn off (1) Turn off the System Switch. (2) The Power Output Switch normally needn’t switch off. Caution: Before change the battery module for service, must charge/discharge the replaced battery same/similar voltage to the other in system battery modules. Otherwise the system need long time to do the balance for this replaced battery module.
-
Page 19: Trouble Shooting Steps
5. Trouble Shooting Steps Problem determination based on: 1) If the system is turned on, and the status LED of Control Module is red, but the status LED of Battery Module is green. Please check the External Battery Communication Cable (CAN/RS485) connection is right or not. -
Page 20: Emergency Situations
6. Emergency Situations 1) Leaking Batteries If the battery pack leaks electrolyte, avoid contact with the leaking liquid or gas. If one is exposed to the leaked substance, immediately perform the actions described below. Inhalation: Evacuate the contaminated area, and seek medical attention. Contact with eyes: Rinse eyes with flowing water for 15 minutes, and seek medical attention. - Page 21 Pylon Technologies Co., Ltd. No. 73, Lane 887, ZuChongzhi Road, Zhangjiang Hi-Tech Park Pudong, Shanghai 201203, China T+86-21-51317697 | +86-21-51317698 Eservice@pylontech.com.cn Wwww.pylontech.com.cn 21 / 21 16BISV0903...
