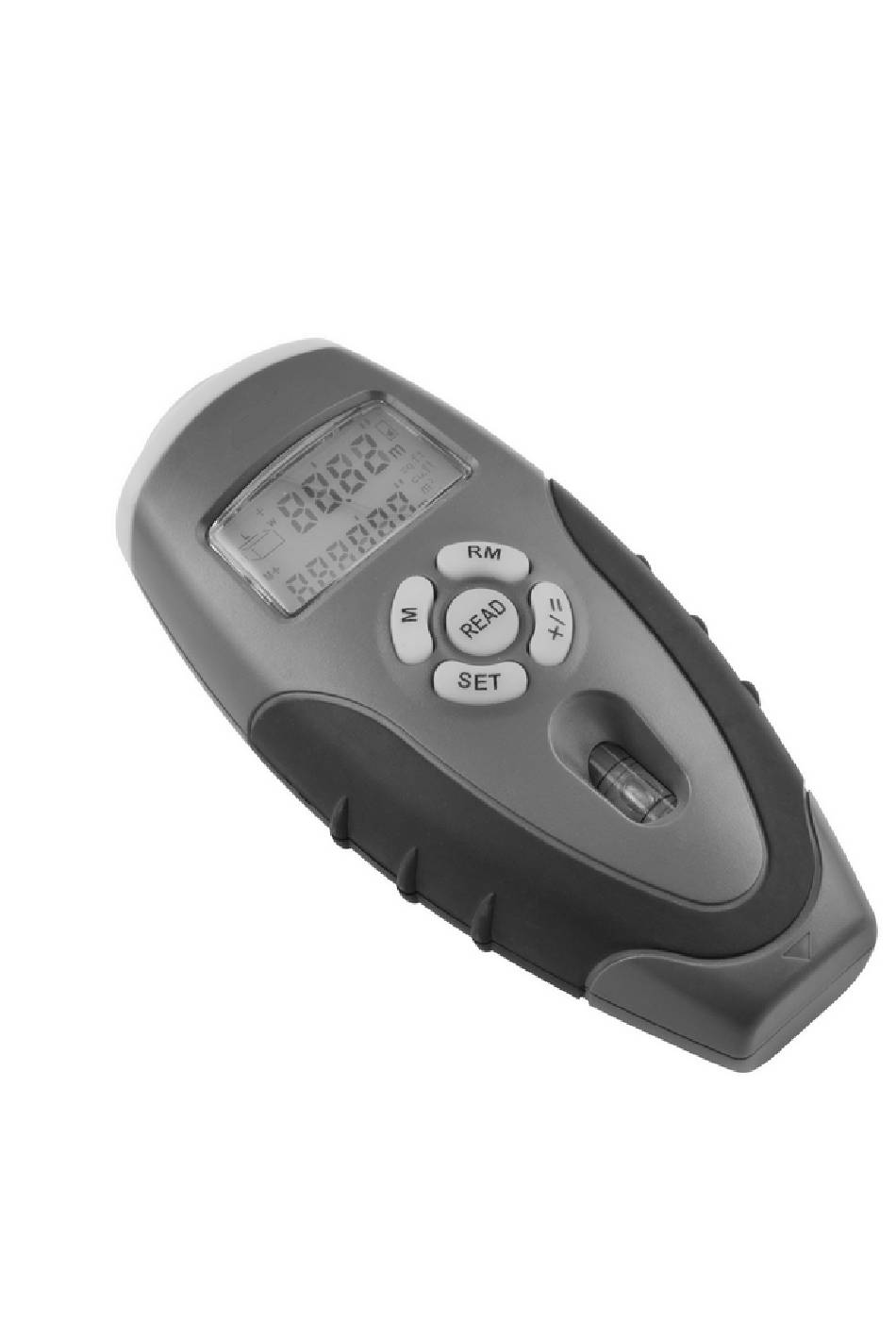

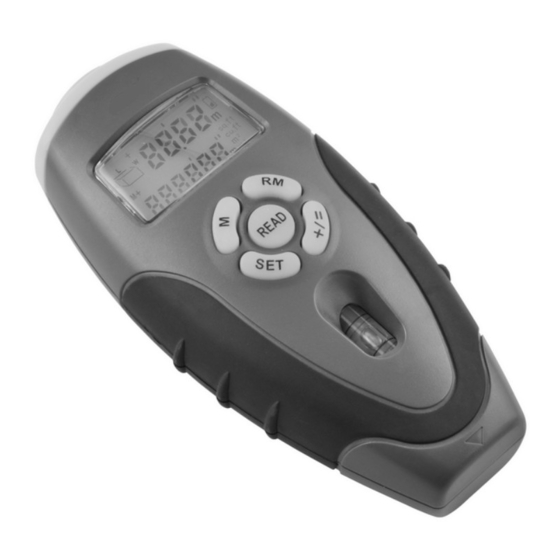

- Page 1 Manifold Electronic Gauge Model: KC-100B Operation Manual...
-
Page 2: Battery Safety Instructions
KC-100B manifold electronic gauge is the Class II laser tool conforming to EN 60825-1 international safety rule. SAFETY INSTRUCTIONS Failure to follow the instructions listed below may cause personal injury. -
Page 3: Tool Components
● Please install the batteries properly as the instructions of the positive and negative charges ● Please dispose the batteries properly. High temperature will cause explosions and do not burn the batteries. Strap insulated tape around the battery charges to avoid unsafe contacts with other objects.Many countries have regulations regarding battery disposal.Please follow the local regulations of battery disposing. -
Page 4: Battery Installation
A．Plus B．Area/volume （L=length；W=width；H=height） C．Memory D．Memory, computing result E．Current measuring result F．Display when lack of electric quantity G．Square foot H．Cubic foot I． Square meter J． Cubic meter OPERATION GUIDE Battery installation Open the battery compartment door on the back of the tool, and plug one 9 Volt block battery onto the battery connector and put the battery back to the compartment and close the door. - Page 5 Press +/= key to enter the addition mode, and the “+” icon will appear on the display and at the same time, the result is displayed on the lower side of the display (press +/= key again to cancel the add operation); Press READ key again for second time measurement, the measured value is displayed on upper portion of the screen;...
- Page 6 Area Press SET key to enter area mode, and the will appear on the display calculation of a room area; The length character “L” on the display will blink showing the length measurement you will be firstly taking. Press READ key to take length measurement that is displayed on upper portion of the screen.
- Page 7 After getting the desired area of the second time computation, press +/= to enter the addition mode. A “+” icon would appear on LCD. Press RM key to recall the first calculated area for the addition. The “M+” icon will disappear and the stored memory will be automatically cleared;...
-
Page 8: Temperature Display
Pressing the READ key again will toggle back and forth between the length, width and height measurement on the upper portion of the screen; Press SET key to clear the data on the portion of the screen, and then can begin the new calculation of volume;... - Page 9 is ℉ if the distance unit is ft/in), and press the READ key again to return the measuring state. OPERATION INSTRUCTION Inaccurate measurement may result from the following: When the battery runs out: at this time, the “ ” icon will continuously appear on LCD to remind you to replace the battery.
-
Page 10: Technical Specifications
TECHNICAL SPECIFICATIONS Name Manifold electronic gauge Type KC-100B Recommended use Indoor Measurement range 2’ to 53’ (0.6 to 16m) Calculation range Length 9999’ 11’’ (9999.99m) Area 99999.9 sq ft (99999.9 ㎡) Volume 999999 cu ft (999999m Resolution 0.01m Wavelength of laser...
