Summary of Contents for KeCheng KC-109A

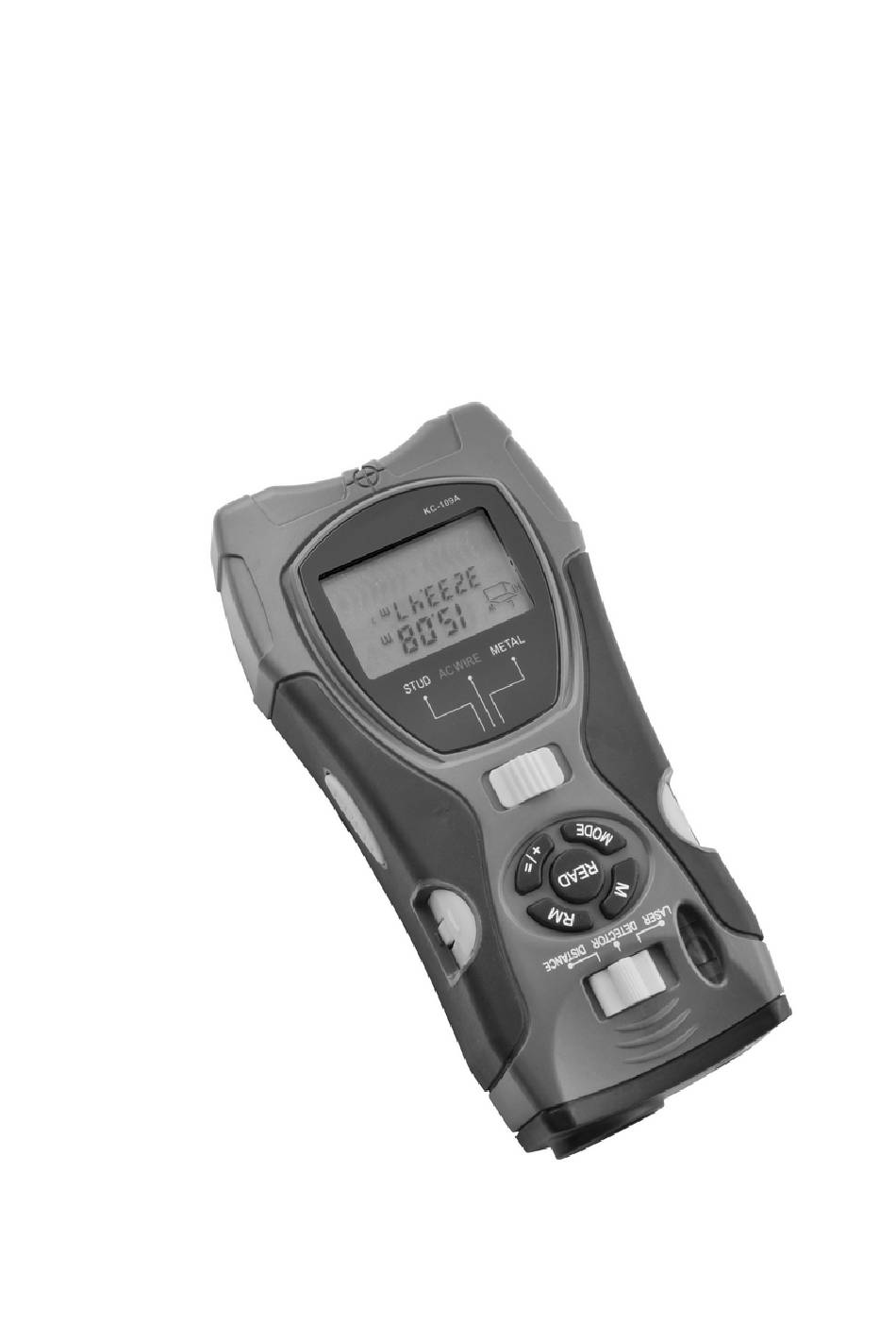

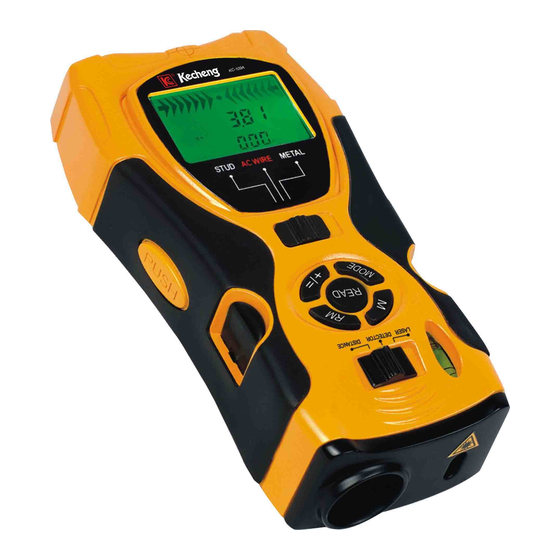

- Page 1 5 in 1 Multifunction Gauge Model: KC-109A Operation Manual...
-
Page 2: Safety Instructions
The tool also has the pin fixation function for using on the wall. KC-109A Multifunction gauge is a Class 2 laser tool conforming to the EN 60825-1：1994+A1： 2002+A2：2001 safety rule. -
Page 3: Battery Safety Instructions
● Do not push the metal pins into material other than dry wall or wood as breakage of the pins and the tool may occur. ● Remove the batteries when storing the tool for an extended time to avoid damage to the tool caused by batteries deteriorate. -
Page 4: Illustration Of Display Screen
hole to assistant fix the tool when laser marking. C. LCD with backlight---Indicates detecting or measuring result. D. Mode switch --- Set the mode for wood joists, AC live wires or metals. E. +/= ---Addition key: Add the measured length, area or volume F. -
Page 5: Battery Installation
H. Measurement units I. Caution symbol for AC live wires---the symbol is light when AC live wire is detected. J. Current measuring result K. Joist detecting indication---the light is on when the current detecting mode is on joist. L. AC detecting indication---the light is on when the current detecting mode is on AC live wire. M. - Page 6 3、The tool will have sound indication when pressing the key. It shows that the pressing key is effective. 4、Inaccurate measurement may result from the following: a. When the battery runs out: at this time, the “ ” icon will continuously appear on LCD to remind you of replacing the battery.
- Page 7 REMARK: A. The measured object must be normatively hard surface and not be blocked by any barriers; B. Select a smooth hard surface with big area to measure for precise result; C. If the measured surface is too small and irregular or with soft surface, chipboard can be used on the surface of the measured object;...
- Page 8 Press the READ key for new measurement; ● Press the +/= key to enter the addition mode, and the “+” will appear on the display; ● Press the RM key to recall previous measurement for the addition (displayed on the ●...
- Page 9 Then the area is automatically displayed on the lower portion of the screen; ● ● Press the READ key again will toggle back and forth between the length and width measurement on the upper portion of the screen; ● Press MODE key to clear the data on the portion of the screen, then can begin the new calculation of area.
- Page 10 Repeat the steps above to keep adding the measured area. ● 6、Volume ● Press MODE key to enter volume mode, and the " "will appear on the display for calculation of a room volume; ● The length character “L” on the screen will blink showing length measurement will be taking. Press READ key to take length measurement, the result will be displayed on upper portion of screen.
- Page 11 ● Press MODE key to clear the current displayed data, then can begin the second time measurement and computation (Follow step 1 to 3 under the volume section); ● After getting the calculated volume of second time, press +/= key to enter the addition mode. A “+” icon would appear on LCD;...
- Page 12 ● Detecting calibration for joist Set the mode switch to the mode for joist, and then lightly adhere the scanner to the detected surface, press the power button to connect to the power supply, the scanner will send out sound indication and be calibrated automatically according to the thickness of the detected wall.
- Page 13 a. Move the tool across the surface of the object in straight line horizontally and slowly, and hold the tool firmly against the surface. b. When the tool moves horizontally and is close to the detected object, the outer side of arrow symbol will illumine and then slow down the moving speed, and the arrow lights of both sides will light in turn towards the center light (if the arrow symbols of both sides go out when moving, reset automatic calibration and detection from another place).
- Page 14 4.Please try to avoid using the tool on wet plate and wall. 5.Sometimes, the scanner cannot detect the slate or mixed plate correctly because the density of the materials change a lot. 6.When tacking, cutting or drilling on the wall, ceiling or floor, please take care to the wires and pipes on the back of them.
-
Page 15: Technical Specifications
Remove the battery when not in use for an extended period of time ● TECHNICAL SPECIFICATIONS Name 5 in 1 Multifunction Gauge Type KC-109A Recommended use Indoor or indirect sunlight Length of laser line Width of laser <5mm Power of laser <1mW... -
Page 16: Warranty
Measurement range 2′to 53′（0.6～16m） Length 9999′11″（9999.99m） Calculation Area 99999.9 sq ft（99999.9m ） range Volume 999999 cu ft（999999m ） Measure Resolution 0.01m distance Temperature range 0℃ to +40℃ Automatic turn-off The tool will be automatically off after 30s disabling. Backlight function Shutdown automatically if there is no action of pressing keyboard in 15s Object of detection...
