- Page 1 VL1-250-SC-DS MASS STORAGE SUBSYSTEM Technical Information Copyright © Phoenix International 2005. All Rights Reserved 812 W. Southern Avenue, Orange, CA 92865...
- Page 2 However, no responsibility is assumed for inaccuracies. Nor does Phoenix International assume any liability arising out of the application or use of any product or circuit described herein. Phoenix International reserves the right to make changes to any product and product documentation in an effort to improve performance, reliability or design.
-
Page 3: Table Of Contents
Hard Drive Hardware Configuration Considerations for Installation VMEbus Slot Requirements VMEbus Backplane Requirements Power Supply Requirements Termination Terminator Power Configuration Installing the VL1-250-SC-DS Drive Software Configuration Hard Drive Software Configuration Operation Chapter 4 Hard Disk Drive Details Scope Introduction Key Features... - Page 4 If You Have a Problem Product Repairs Obtaining an RMA Shipping the Product Providing a Product Defect Report Warranty Repairs Non-warranty Repairs Product Updates Tables Table 2-2 Ultra 320 SCSI Pin Definition Table 2-3 P2 Pin Definition Figures Figure 1-1 VL1-250-SC-DS Front Panel...
-
Page 5: Chapter 1 Manual Organization And Introduction
Chapter 1 Manual Organization and Introduction... - Page 6 This page intentionally left blank.
-
Page 7: Vl1-250-Sc-Ds Introduction

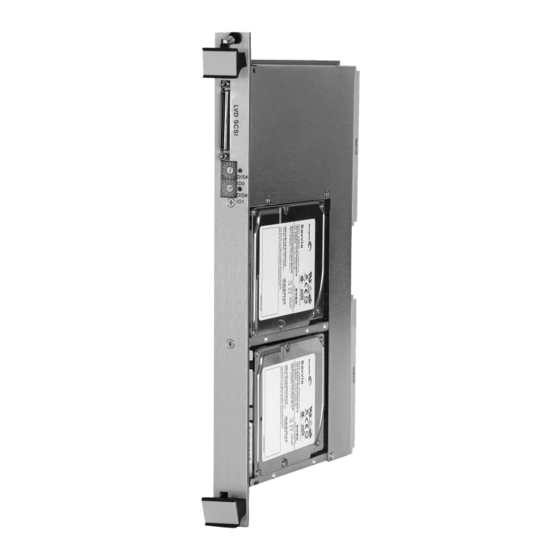

SCSI Host Adapter. Together with the processor, a complete system can be installed in only two standard VMEbus sys- tem slots. The VL1-250-SC-DS provides one or two hard disk drives within the same module making it very convenient to have fixed data storage. The drives used on board the VL1-250-SC-DS were chosen for their compatibility, rugged- ness and reliability. -
Page 9: Chapter 2 Features And Specifications
Chapter 2 Features and Specifications... - Page 10 This page intentionally left blank.
-
Page 11: Scope
This chapter describes the overall features and specifications of the VL1-250-SC-DS . Features The VL1-250-SC-DS incorporates one or two very compact winchester disk drives within a single module. The hard disk drive(s) is a high-performance winchester type with embedded disk drive control electronics. This microprocessor controlled embedded controller is on the hard disk and is compatible with ANSI X3.131-1986 SCSI commands. -
Page 12: Vl1-250-Sc-Ds Specifications
VL1-250-SC-DS Specifications The following table provides the specifications of the complete VL1-250-SC-DS . Individual disk drive specifications are given in their respective chapters. General Model: VL1-250-SC-DS Description: Hard disk drive module compatible with Ultra 320 SCSI commands. Interface: Ultra 320 SCSI Drive Type: Particular type depends on capacity ordered. - Page 13 P2 Connector Pin Definitions Ultra 320 SCSI P2 Signal P2 Pin P2 Pin P2 SIGNAL +DB11 -DB 11 +DB10 -DB 10 +DB9 -DB 9 +DB8 -DB 8 +I/O -I/O +REQ -REQ +C/D -C/D +SEL -SEL +MSG -MSG +RST -RST +ACK -ACK +BSY -BSY...
-
Page 14: Chapter 3 Configuration, Installation, And Operation
Chapter 3 Configuration, Installation, and Operation... - Page 15 This page intentionally left blank.
-
Page 16: Scope
Drive Hardware Configuration The drives on the VL1-250-SC-DS can be configured for normal operation as SCSI units 0-15 by setting the front panel switches with a small screwdriver.(See Figure 1-1) The particular configuration of the Unit ID's required depends upon the software and the application operating system. -
Page 17: Termination
Operation Once the VL1-250-SC-DS has been configured properly and the software has been set up, operation is identical to that of a standard SCSI storage subsystem. No specialized software is required. Configuration, Installation, and Operation... -
Page 18: Chapter 4 Hard Disk Drive Details
Chapter 4 ST973401LC Hard Disk Drive Details... -
Page 19: Scope
Scope This chapter describes the Seagate ST973401LC disk drive in detail. Introduction The ST973401LC is a high performance 2.5" one half inch high 73.4 gigabyte (formatted) disk drive with a 4.7 millisecond average seek time that is designed to operate with a SCSI host adapter or equivalent. The drive features low power requirements and high shock resistance, enabling operation in portable environments. -
Page 20: Power Requirements
Power Requirements + 12 Volt Start-up: 1.58 Amps (Maximum) + 12 Volt Typical: 0.19 Amps + 5 Volt Start-up: 0.70 Amps + 5 Volt Typical: 0.51 Amps Typical Usage: 4.83 Watts Physical Characteristics Height: 1.62 inches Length: 5.75 inches Width: 4.00 inches Weight: 2.20 pounds... -
Page 21: Chapter 5 Product Support, Service And Warranty
Chapter 5 Product Support, Service and Warranty... - Page 22 This page intentionally left blank.
-
Page 23: Scope
If You Have a Problem If you are having a problem with a Phoenix International product, you should call our main number, (714) 283-4800, and ask for Customer Service. Please be prepared to supply as much detail as you can concerning the nature of the problem and the conditions in which the problem appeared. -
Page 24: Providing A Product Defect Report
If a product is found not to be under warranty, we will notify you of the non-warranty situation and provide you with a fixed cost and a schedule for the repair. Non-warranty repairs require that a purchase order be issued to Phoenix International for the amount of the repair before repairs are undertaken.
