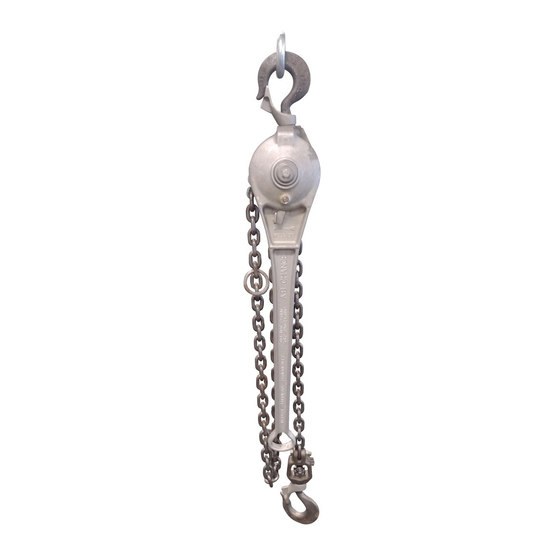

Hubbell CHANCE 3011S Operating And Service Instructions

Rachet link chain hoists
Hide thumbs Also See for CHANCE 3011S:
Table of Contents

Advertisement

Quick Links

RACHET LINK
CHAIN HOISTS
Operating and
Service Instructions
!
IMPORTANT
Keep this manual readily
available for future reference
©Hubbell Incorporated | hubbellpowersystems.com
TD09232E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHANCE 3011S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hubbell CHANCE 3011S

Summary of Contents for Hubbell CHANCE 3011S

  • Page 1 RACHET LINK CHAIN HOISTS Operating and Service Instructions IMPORTANT Keep this manual readily available for future reference ©Hubbell Incorporated | hubbellpowersystems.com TD09232E...

  • Page 2: Introduction

    All information in this publication is based on the latest product information available at the time of printing. Hubbell Power Systems reserves the right to make changes at any time without notice and without incurring any obligation.

  • Page 3: Table Of Contents

    PAGE NO. Introduction Important Safety Information Symbol Index Work Area Safety Maximum Load Ratings Operating Instructions Care and Storage 9-10 Inspection Procedure 10-11 Periodic Routine Maintenance Procedure 11-14 Parts and Disassembly 15-26 Reassembly Instructions Testing ©Hubbell Incorporated | hubbellpowersystems.com TD09232E...

  • Page 4: Important Safety Information

    WARNING NOTICE WARNING NOTICE Indicates a hazardous situation that, if not avoided, Indicates a hazardous situation that, if not avoided, could result in death or serious injury. could result in property damage. ©Hubbell Incorporated | hubbellpowersystems.com TD09232E...

  • Page 5: Symbol Index

    Should additional information and details be desired or specific situations arise which are not covered adequately for the user’s purpose, consult your supervisor and the appropriate rules for safe work practices. If further information is desired, contact Hubbell Power Systems. ©Hubbell Incorporated | hubbellpowersystems.com...

  • Page 6: Work Area Safety

    6. NEVER use a hoist as a load binder. NEVER use a hoist beyond rated capacity. 8. NEVER use replacement parts other than those supplied by Hubbell/ CHANCE®. 9. NEVER use a cheater or extend the handle on the hoist.

  • Page 7: Maximum Load Ratings

    The handle may be operated in one of two positions on this hoist. To move the handle from one side to the other, with no load on the hoist, operate and hold the "RELEASE LEVER" while swinging the handle through the “6 o'clock” position to the other side. ©Hubbell Incorporated | hubbellpowersystems.com TD09232E...
  • Page 8 Check the load and/or rigging before proceeding. If the load is greater than the rating of the hoist, DO NOT LIFT THE LOAD. WARNING Never overload the hoist. Never use a cheater or extend the handle. ©Hubbell Incorporated | hubbellpowersystems.com TD09232E...

  • Page 9: Care And Storage

    6. Keep the chain clean. Inspect the chain and hoist before each use. Do not use a hoist if the chain or hooks show signs of stretching or damage. Care and Storage Continued on page 10 ©Hubbell Incorporated | hubbellpowersystems.com TD09232E...

  • Page 10: Inspection Procedure

    All castings should be inspected closely for cracks or other signs of damage. Replace any parts that do not appear normal. 4. Inspect the hook assemblies for damage, bending, twisting, or opening of the hook throat. Safety latches must be in place and working properly. ©Hubbell Incorporated | hubbellpowersystems.com TD09232E...

  • Page 11: Periodic Routine Maintenance Procedure

    Stop area with Unloader Plate FIG. 1 Handle “STOP” Area FIG. 2 Housing “STOP” Area FIG. 3 Working Dogs FIG. 4 Dog Pin and Unloader Plate Spacing ©Hubbell Incorporated | hubbellpowersystems.com TD09232E...
  • Page 12 3A, part (1). Replace housing if damaged or worn. Adjust screw so that spring does not bind on unloader plate FIG. 5 Inspect Stop Bolt inside FIG. 6 Damaged Screw and Housing due to Self-Ratcheting handle for damage, metal fragments ©Hubbell Incorporated | hubbellpowersystems.com TD09232E...
  • Page 13 “DN” position. Slight marking caused by contact with stop bolt is normal – Check Pin for replace if damaged wear or bending FIG. 8 Shift Key in “Up” Position FIG. 9 Shift Key in “DN” Position ©Hubbell Incorporated | hubbellpowersystems.com TD09232E...
  • Page 14 Working conditions will dictate frequency necessary for lubrication and cleaning. Use in sandy or dusty areas will require frequent servicing. Exposure to salt spray or other corrosive environments will also increase necessity for servicing. Disassemble hoist carefully, refer to disassembly instructions and exploded view of hoist components. ©Hubbell Incorporated | hubbellpowersystems.com TD09232E...

  • Page 15: Parts And Disassembly

    058613P 058614P 056016P P3090325P 019305P P0011485P P3090791P P3090476P 019477P P3090303P 062250P PS056011P E3090354P P3090822P 056013P PSP3090910P 056748P P0010997P P0011563P P3090348P 056014P P3090816P 056010P P3090466P P3090346P P0010924P 056871P 056646P 056646P 019563P 019561P 019562P 3011S PARTS DIAGRAM ©Hubbell Incorporated | hubbellpowersystems.com TD09232E...
  • Page 16 Sub-Assembly+ E3090354P marked with + *New Shift Key (P3090043P) required if handle (or handle assembly) is replacing No. 24433 or UNLOADER PLATE No. 19671 handle assembly, or handle. Sub-Assembly+ E3090356P ©Hubbell Incorporated | hubbellpowersystems.com ©Hubbell Incorporated | hubbellpowersystems.com TD09232E TD09232E...
  • Page 17 10. The shift key (P3090043P) can be removed by backing out the drive-lock pin (059036P) holding the shift key finger (019296P) to the shift key. 11. The Oilite bearings (058613P, 058614P, 019305P) can be removed and replaced by pressing them out and pressing the new ones in. ©Hubbell Incorporated | hubbellpowersystems.com ©Hubbell Incorporated | hubbellpowersystems.com TD09232E TD09232E...
  • Page 18 056010P P0011563P Machine Screw+ 056013P Bolt 019477P Stop Bolt+ 019673P Hex Nut 062250P Spring+ P3090307P Hook 019562P Washer+ 056014P Safety Latch 019561P Lockwasher P0010924P Spring 019563P UNLOADER PLATE Sub-Assembly+ E3090356P ©Hubbell Incorporated | hubbellpowersystems.com ©Hubbell Incorporated | hubbellpowersystems.com TD09232E TD09232E...
  • Page 19 019557P Gear Cover E3090481P Ring 056871P Shift Key Finger+ 019296P Snap Ring P0011558 Washer+ 056689P Washer+ P3090325P Spring+ P3090352P LUBRICANTS AVAILABLE Chance Tool Lube+ M1909 +C3090349 Repair Kit — Includes all items marked with + ©Hubbell Incorporated | hubbellpowersystems.com TD09232E...
  • Page 20 11. The shift key (P3090043P) can be removed by backing out the Driv-Lok pin (059036P) holding the shift key finger (019296P) to the shift key. 12. The oilite bearing (058613P, 058614P) can be removed and replaced in the accepted manner of pressing them out and pressing the new ones in. ©Hubbell Incorporated | hubbellpowersystems.com TD09232E...
  • Page 21 P0011558P 056507P P3090818P 019673P 058614P P3090046P P3090325P 056871P 058613P PS056011P 019555P 019556P 019553P PS056011P PSP3090911P 055354P 056013P E3090354P 056748P P0011465P PSP3090910P P3090348P P3090816P 056510P 056010P P3090346P P3090370P 056014P P0010924P 019565P 019561P 4012 PARTS DIAGRAM P3090866P ©Hubbell Incorporated | hubbellpowersystems.com TD09232E...
  • Page 22 Snap Ring P0011558P Sub-Assembly+ E3090354P Washer+ P3090325P Housing P3090046P LUBRICANTS Bearing (Oilite) 019552P AVAILABLE Bearing 058613P Chance Tool Lube+ M1909 Pin (Driv-Lok Type) 056016P Pin+ P3090347P +C3090349 Repair Kit — Includes all items marked with + ©Hubbell Incorporated | hubbellpowersystems.com TD09232E...
  • Page 23 11. The shift key (P3090043P) can be removed by backing out the Driv-Lok pin (059036P) holding the shift key finger (019296P) to the shift key. 12. The oilite bearing (058613P, 058614P) can be removed and replaced in the accepted manner of pressing them out and pressing the new ones in. ©Hubbell Incorporated | hubbellpowersystems.com TD09232E...
  • Page 24 P3090307P Pinion 019557P Ratchet Wheel 019556P Washer+ 056014P Snap Ring P0011558P Shift Key P3090043P Unloader Plate+ E3090356P Washer+ P3090325P Gear Cover P3090417P Dog Assembly+ E3090354P Spring+ P3090352P Shift Shaft Pin (Driv-Lok Extension P3090384P Type) P3090347P ©Hubbell Incorporated | hubbellpowersystems.com TD09232E...
  • Page 25 Washer, 3 Ton 056510P Chain 3 Ton P3090428P Pin, 3 Ton P0011465P Bottom Block 3 Ton P3090421P LUBRICANTS (2 Chain) AVAILABLE Chance Tool Lube+ M1909 C3090349 Repair Kit — Includes all items marked with + ©Hubbell Incorporated | hubbellpowersystems.com TD09232E...
  • Page 26 11. The shift key (P3090043P) can be removed by backing out the Driv-Lok pin (059036P) holding the shift key finger (019296P) to the shift key. 12. The bearings (058613P, 058614P) can be removed and replaced in the accepted manner of pressing them out and pressing the new ones in. ©Hubbell Incorporated | hubbellpowersystems.com TD09232E...

  • Page 27: Reassembly Instructions

    If the hoist passes the above tests, the hoist may be returned to service. Refer any questions about the use, application, testing, or repair parts of this hoist to: Hubbell / CHANCE, 210 N. Allen St., Centralia, MO 65240 Phone: +1 573-682-5521 ©Hubbell Incorporated | hubbellpowersystems.com...
  • Page 28 Hubbell Power Systems, Inc. is not liable for death, serious injury, or property damage resulting from the use of these products in any manner that is inconsistent with the product installation and operating instructions, your employer’s internal safety guidelines, or recommendations from safety experts hired by your company.

This manual is also suitable for:

Chance c3090438Chance c3090439Chance 4012Chance c3090440096359016243
