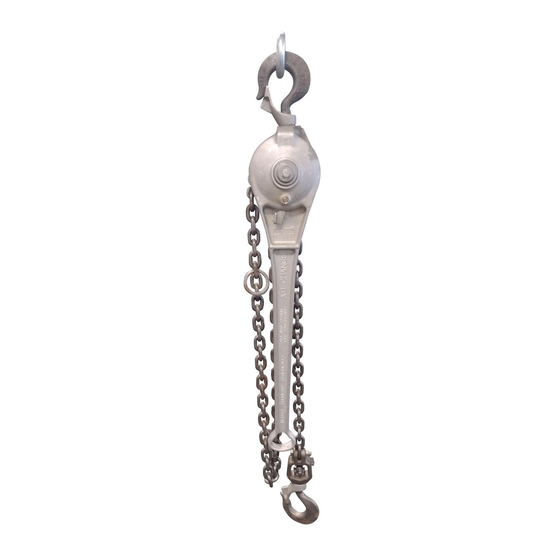

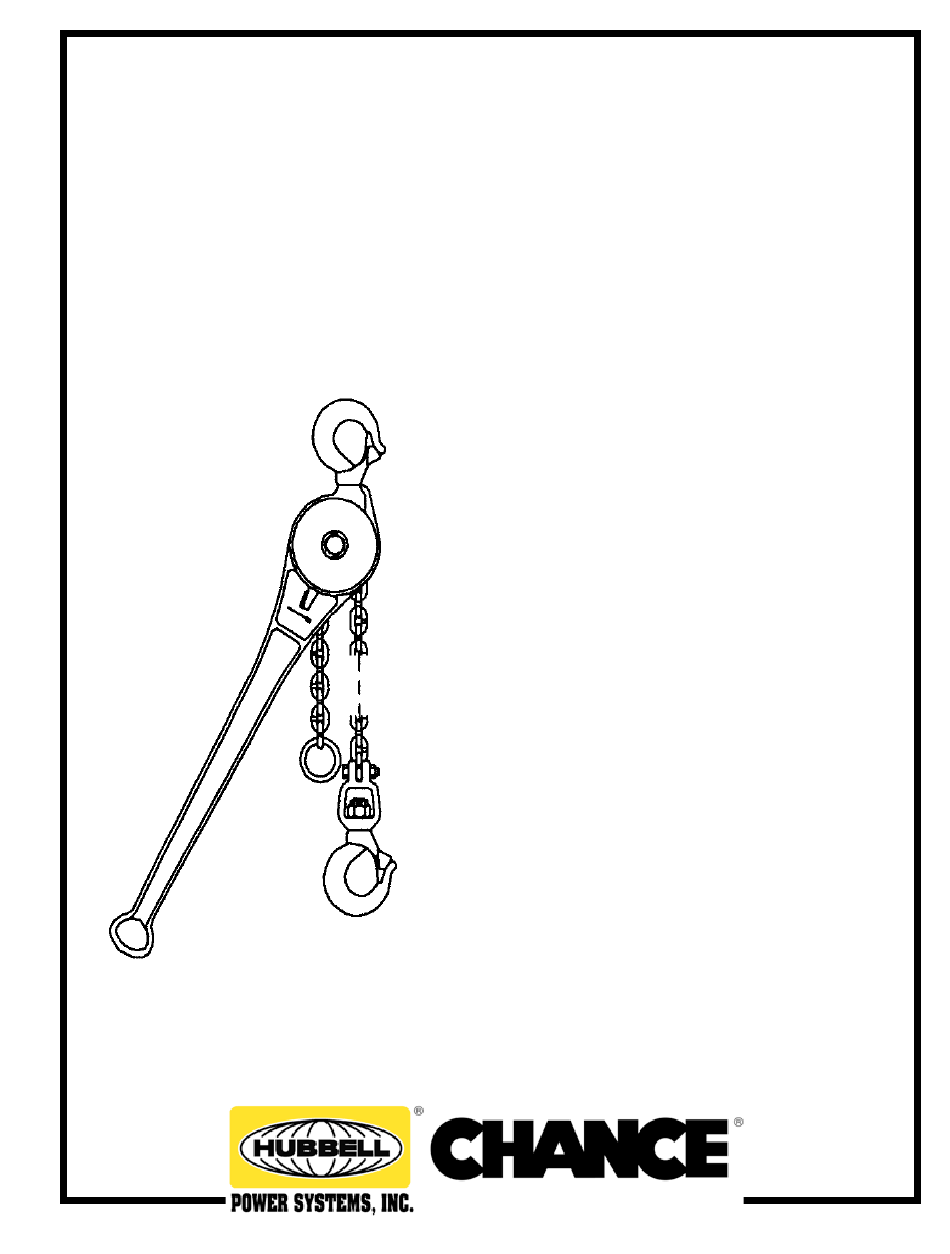

CHANCE HOIST INSTRUCTION MANUAL
OPERATING & SERVICING THE CHANCE
ONE-TON CHAIN HOIST
INDEX
GENERAL SPECIFICATIONS ........ 2
OPERATING INSTRUCTIONS ....... 3
PARTS LIST ................................... 4
EXPLODED VIEW ........................... 4
DISASSEMBLY INSTRUCTIONS ... 5
MAINTENANCE PROCEDURES ... 6
WARRANTY .................................... 8
Part No. P309-0360
© Copyright 2009 Hubbell/Chance
210 N. Allen Centralia, Missouri 65240
Rev. T
Advertisement
Related Manuals for Hubbell CHANCE 3011S
Summary of Contents for Hubbell CHANCE 3011S
- Page 1 GENERAL SPECIFICATIONS ..2 OPERATING INSTRUCTIONS ..3 PARTS LIST ........4 EXPLODED VIEW ......4 DISASSEMBLY INSTRUCTIONS ... 5 MAINTENANCE PROCEDURES ... 6 WARRANTY ........8 Part No. P309-0360 © Copyright 2009 Hubbell/Chance 210 N. Allen Centralia, Missouri 65240 Rev. T...
- Page 2 CHANCE ONE-TON HOIST The One-Ton Hoist is rated to lift loads up to and in- cluding 2,000 pounds. Relatively light in weight, these rugged hoists are well-balanced for easy handling and fast operation. • Simple Controls are Easy to Operate The simple controls can be operated without removing heavy work gloves or rubber gloves.
- Page 3 OPERATING INSTRUCTIONS FOR THE CHANCE ONE-TON HOIST TO POSITION HOIST FOR USE: When placing the hoist in operating position, care must be taken to make sure that the load hook Hoist Hook and the housing hook of the hoist are on the same centerline. If the hoist is restricted from adjusting itself to form a straight line with the direction of Shift Key Finger loading, damage to the hoist could occur. The hoist may be operated in any convenient position and the handle may be operated on either side of chain as shown by the arrows X and Y (above) on the drawings, to provide an upward or downward stroke for lifting or lowering.
- Page 4 Repair Parts List for Chance One-Ton Hoist Part No. Part No. Part No. REMAINING PARTS NOT REQUIRING *HANDLE SUBASSEMBLY ..E309-0819 DOG ASSEMBLY SUBASSEMBLIES *Handle ........P309-0816 Subassembly ......E309-0354+ Oilite Bearing ......058614 Dog (Pawl) ......P309-0353 Shaft ........P309-0791 Pin ..........019486+ Pin ..........P001-1368 Spring ........P309-0307+ Release Key ......P309-0346+ Spring ........056009+ Hex Jam Nut ......056748+ UNLOADER PLATE Spring ........P309-0352+...
- Page 5 Disassembly Instructions for Periodic Inspection and Repair or Replacement of Parts for One-Ton Hoist In order to best visualize these outside, so that it will project The housing dog (E309-0354) can instructions, study and refer to the through the unloader plate, when be removed by unhooking the long exploded view of the hoist. unloader plate is replaced on the extension spring (56009) from the shaft.
- Page 6 INSTRUCTIONS FOR SERVICING THE CHANCE ONE-TON HOIST Procedure damage. Check hooks for bending exploded view of hoist components. Check operation of the hoist thor- or "opening" caused by incorrectly Wash all parts in a suitable cleaner, oughly by lifting and lowering a loading the hook tip, or jamming the remove all oxides and foreign mate- minimum of 500 lb.
- Page 7 Adjust screw so that B. Housing Sub-Assembly Battered spring does not bind (E309-0477) and related parts. "Stop" Area on unloader plate. (1) Examine "stop" surfaces, the mating surfaces to the handle "stops". Reasons for damage and possible malfunctions are the same as outlined in section A, part (1). Replace housing if damaged or worn.
- Page 8 Trouble shooting malfunctions in hoists can also be aided by a cut-away handle. NOTE: Because Hubbell has a policy of continuous product improvement, we reserve the right to change design and specifications without notice. Part No. P309-0360 Rev. T...
