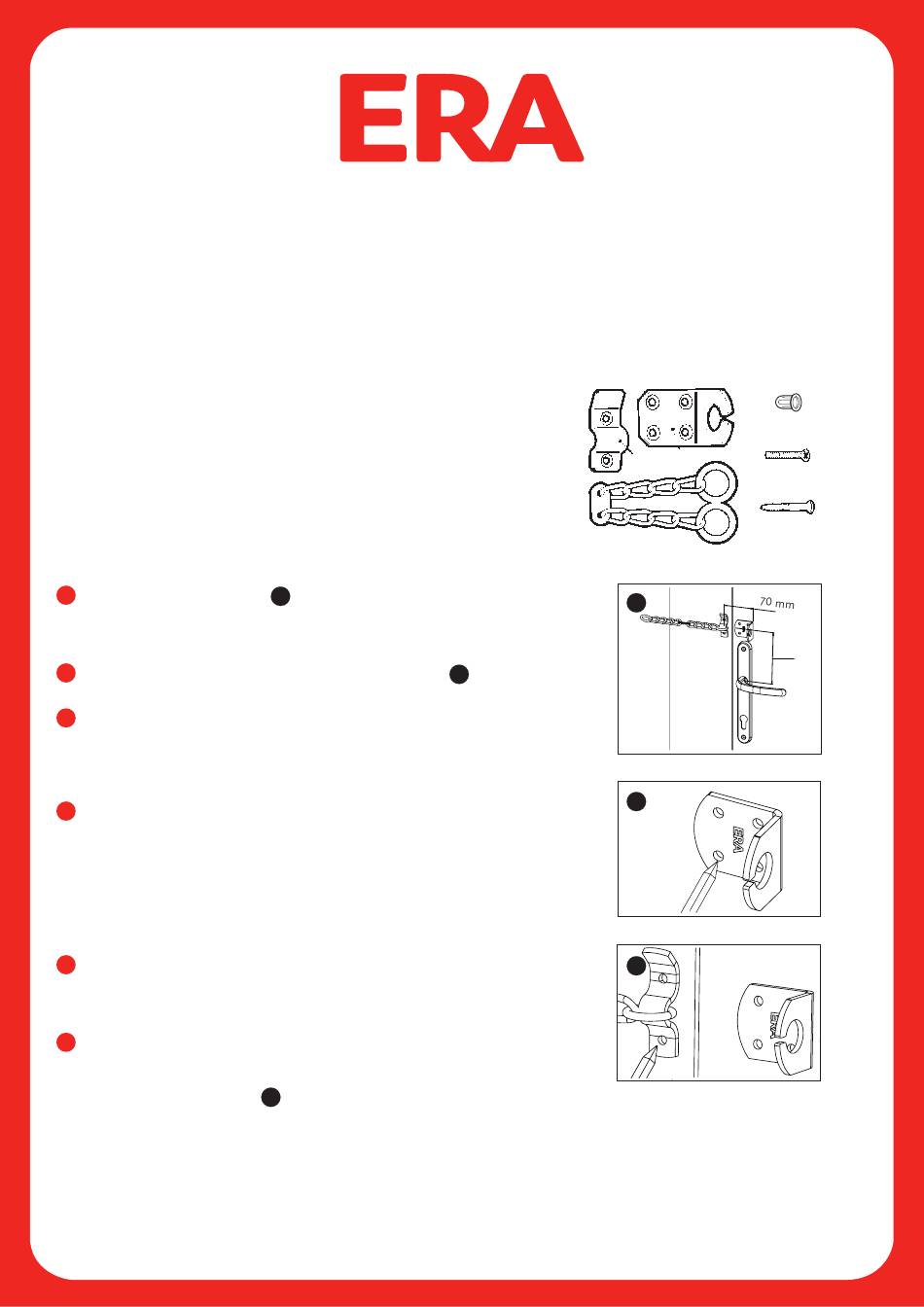

ERA TS003 Fitting Instructions

To fit this Door Chain you will require the following tools:
- Pencil
- Tape Measure
- Power drill
- 2.5mm and 9.5mm (3/8") drill bit
- Pozidriv Screwdriver

Fitting Instructions for PVCu Doors

A
Select position for door chain
is to avoid the risk of drilling through the lock mechanism.
Door chain must be fitted 70mm apart.
B
Mark with a pencil the 4 hole positions of the door anchor
C
Drill 4 pilot holes with 2.5mm drill at 30mm deep. You may encounter
steel reinforcement in the door, simply drill though the reinforcement.
Drill the same 4 holes with the 9.5mm at a 30mm depth.
Insert jack nuts into the holes and tighten each screw to pull the jack
D
nuts into position. As the jack nuts are screwed, the 4 legs will bend
behind, tightly forming a metal claw behind the plastic of the door.
NB: In the event that the jack nut spins, grip the head of the jack nut
with pliers and proceed to tighten. For security, it is essential that all
4 jack nuts are drawn down tightly and fully.
Remove screws and position the door anchor over the jack nuts,
E
re-insert screws and tighten.
Close the door and align the chain hook opposite the anchor plate.
F
Mark the position of the 2 screw holes and follow the same
procedure as detailed in D and E. Remember to slide one end of
the door chain into position
DACCHTS

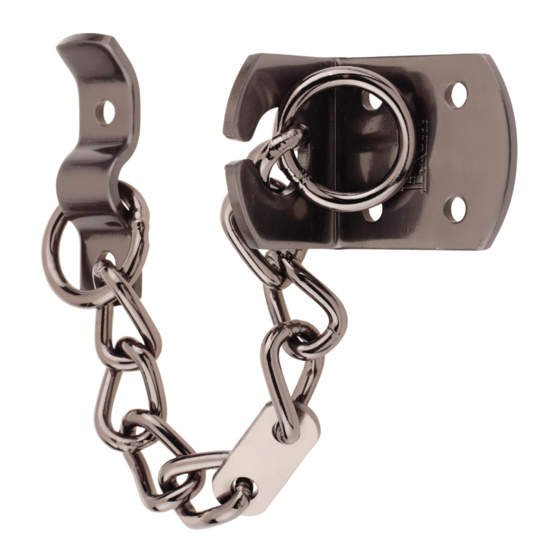

TS003 Heavy Duty Door Chain
Fitting Instructions
A . The position of the anchor shown
C .
ERA, Valiant Way, Wolverhampton, WV9 5GB
Tel: 01922 490 049 Fax: 01922 494 420 Email: info@erahomesecurity.com
www.eraeverywhere.com
Chain
Hook
Chain
.
B
Jack nuts x 6
for PVCu fitting
Chain Anchor
Screws x 6
for PVCu fitting
Wood Screws x
6
A
120 mm
B
C
