ERA 3000 Series Fitting Instructions

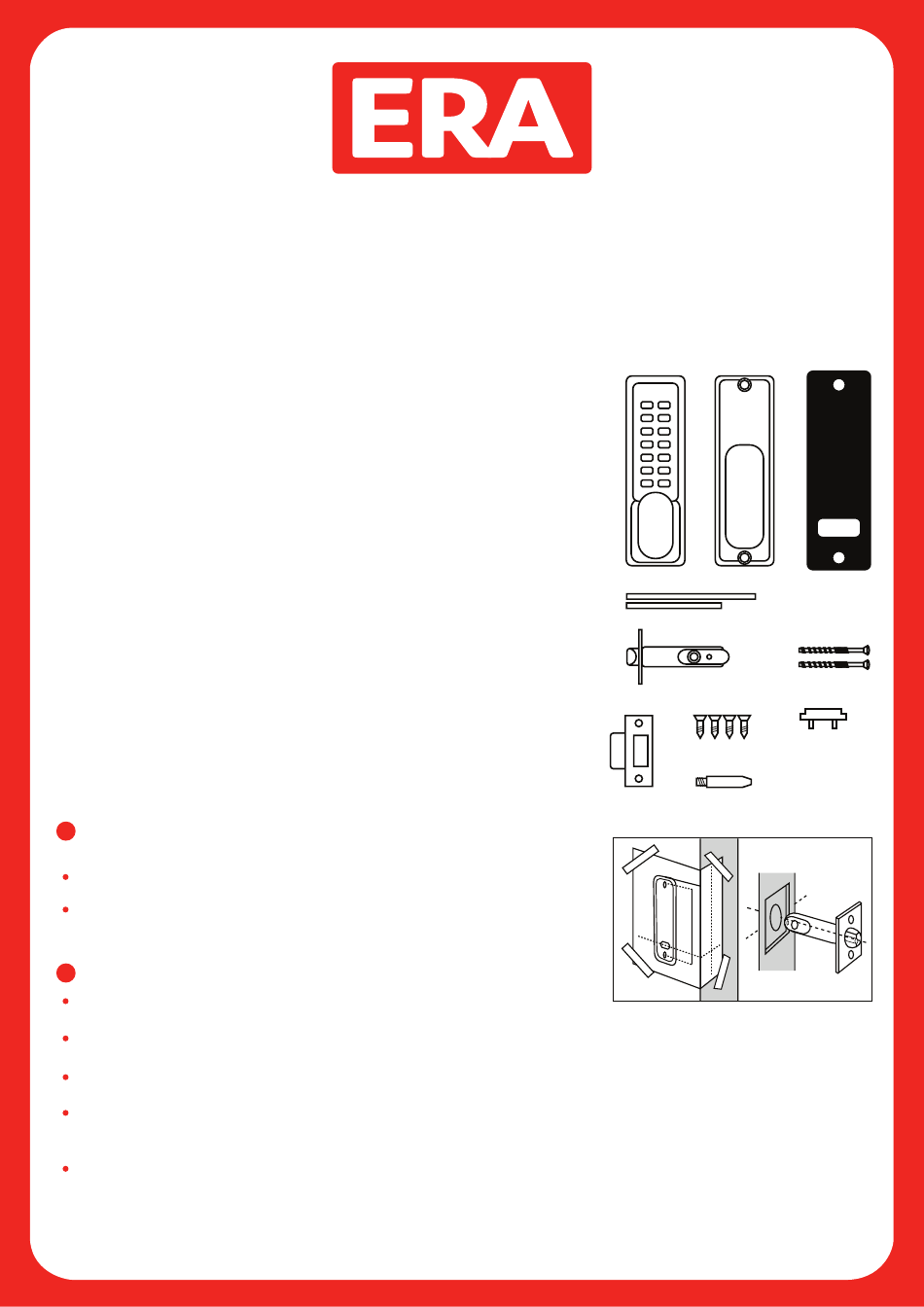

Installing a 3000 Series Digital Door Lock

To fit a Digital Door Lock you will require the following tools:
- Crosshead screwdriver
- Wood chisel
- Ruler / tape measure
- Mallet
Special Notes (for 3001 and 3003 only):
The 'Hold-open' model is equipped with a snib on the backplate. This enables
the latchbolt to be held open when required.
Before commencing installation, check that all parts are working correctly.
Also refer to code change instructions.
Make sure that the lever handle of the backplate moves freely. Check that the
snib will engage, and hold the handle in the 'latch-open' position, if it is a model
with the latch stopper.
Check that the latch bolt moves freely by pressing at the end and also by turning
the flat spindle in the latch cam.

Apply the Template

A
Tape the template to the door making sure you fold it along the appropriate line.
Mark and drill all six holes. Use a chisel to clear the line of 4mm x 8mm holes
into a single slot..

Positioning and fixing the latch

B
Mark central point on the 'centre line of the latch' on the door edge
Drill a 25mm hole at an 85mm depth.
Insert the latch into the hole, and draw around the face plate.
Remove the latch and cut a 3mm rebate so that the face plate will fit flush with
the door.
Secure the latch with the wood screws.
