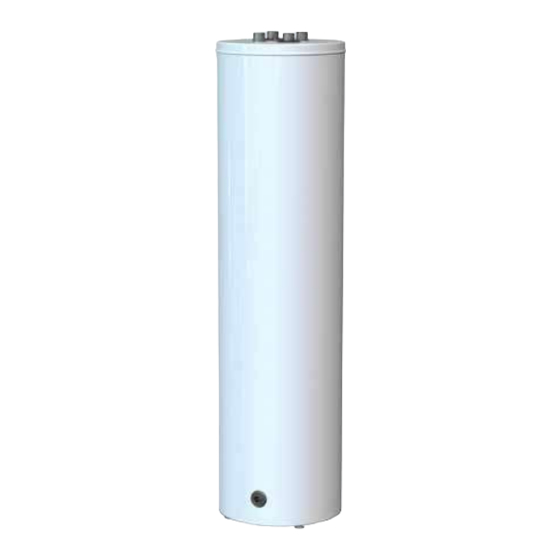

Thermia WT-V Installation Manual

Thermia WT-V Installation Manual

Accumulator tanks
Hide thumbs Also See for WT-V:

Advertisement

Quick Links

Installation Guide
WT-V Accumulator tanks
www.thermia.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the WT-V and is the answer not in the manual?

Questions and answers

Summary of Contents for Thermia WT-V

  • Page 1 Installation Guide WT-V Accumulator tanks www.thermia.com...
  • Page 2 Thermia AB is not liable or bound by warranty if these instructions are not adhered to during installation or service. The English language is used for the original instructions. Other languages are a translation of the original instructions. (Directive 2006/42/EC)
  • Page 3 WT-V FC (Front Connection) ........
  • Page 4: Getting Started

    Installation Guide WT-V Accumulator tanks Getting started Getting started Installation The accumulator tank should stand on a solid surface and be leveled with assistance from the setscrews underneath the tank (not fitted on all models). The tank models that come without setscrews can be leveled with assistance of a shim. This must be done before the tank is connected to the pipes and filled with water.
  • Page 5: Model Specifications

    Installation Guide WT-V Accumulator tanks Model specifications WT-V Technical data WT-V Unit 1000 Storage volume V litres Test pressure Working pressure Max. temperature °C Weight Standing loss S Energy efficiency class Dimensions WT-V Unit 1000 Height 1158 1153 1564 1754...
  • Page 6 Installation Guide WT-V Accumulator tanks 2.1.1 WT-V 100 Connections 1 558 1 Venting (1/8" int.) 1 540 2 Connections (DN25 x 4 int.) 3 Sensor connection (Ø9 int.) 4 Drain tap (DN15 int.) Technical data Storage volume V 102 litres...
  • Page 7 Installation Guide WT-V Accumulator tanks 2.1.2 WT-V 200 Connections 1153 1 Expansion/Venting (DN25 int.) 1126 2 Connections (DN32 x 4 int.) 3 Temperature sensor (2x) 4 Drainage valve (DN15) 5 Teamperature sensor pipe (Ø7 int.) 6 Diffuser 7 Connection (DN50)
  • Page 8 Installation Guide WT-V Accumulator tanks 2.1.3 WT-V 300 Connections 1 564 1 Expansion/Venting (DN25) 1 536 2 Connections (DN32 x 4) 3 Temperature sensor conn. (DN20) 4 Drainage valve (DN15) 5 Teamperature sensor pipe (Ø7 x 5 int.) 6 Immersion heater conn. (DN50)
  • Page 9 Installation Guide WT-V Accumulator tanks 2.1.4 WT-V 500 Connections 1754 1 Venting (DN25 ext.) 1710 2 Connections (DN50 x 6 int.) 3 Temperature sensor conn. (DN20) 1492 4 Immersion heater conn. (DN50 int.) Technical data Storage volume V 473 litres...
  • Page 10 Installation Guide WT-V Accumulator tanks 2.1.5 WT-V 750 Connections 1 809 1 Venting (DN32 ext.) 1 775 2 Connections (DN50 x 4) 3 Temperature sensor (DN20) 1 515 4 Immersion heater (DN50 int.) 1 410 5 Drain tap/expansion (DN20) 1 300...
  • Page 11 Installation Guide WT-V Accumulator tanks 2.1.6 WT-V 1000 Connections 1 913 1 Venting (DN25 ext.) 2 Connections (DN50 x 4) 1 656 3 Temperature sensor conn. (DN20) 1 560 4 Immersion heater conn. (DN50 x 2) 1 380 Technical data...
  • Page 12: Wt-V Fc (Front Connection)

    Installation Guide WT-V Accumulator tanks WT-V FC (Front Connection) Technical data WT-V 500 FC Unit 500 FC (3Bar) 500 FC (6Bar) 500 FC DN80 (3Bar) 500 FC DN80 (6Bar) Storage volume V litres Working pressure Test pressure Max. temperature °C...
  • Page 13 Installation Guide WT-V Accumulator tanks 2.2.1 WT-V 500 FC (3Bar) Connections 1765 1 Venting (DN32) 2 Heat source (DN50, x4) 3 Temperature sensor (DN20, x2) 1505 4 Immersion heater (DN50) 1400 5 Drain tap/Temperature sensor (DN20) 1290 Technical data Storage volume V...
  • Page 14 Installation Guide WT-V Accumulator tanks 2.2.2 WT-V 500 FC (6Bar) Connections 1788 1 Venting (DN32) 1762 2 Heat source (DN50, x4) 3 Temperature sensor (DN20, x2) 1480 4 Immersion heater (DN50) 1375 5 Drain tap/Temperature sensor (DN20) 1265 Technical data...
  • Page 15 Installation Guide WT-V Accumulator tanks 2.2.3 WT-V 500 FC DN80 (3Bar) Connections 1765 1 Venting (DN32) 2 Heat source (DN80, x4) 3 Temperature sensor (DN20, x2) 1495 4 Immersion heater (DN50) 1370 5 Drain tap/Temperature sensor (DN20) 1245 Technical data...
  • Page 16 Installation Guide WT-V Accumulator tanks 2.2.4 WT-V 500 FC DN80 (6Bar) Connections 1788 1 Venting (DN32) 1760 2 Heat source (DN80, x4) 3 Temperature sensor (DN20, x2) 1475 4 Immersion heater (DN50) 1350 5 Drain tap/Temperature sensor (DN20) 1225 1065...
  • Page 17 Installation Guide WT-V Accumulator tanks 2.2.5 WT-V 750 FC (3Bar) Connections 1825 1 Venting (DN32) 1792 2 Heat source (DN50 x 4) 3 Temperature sensor (DN20 x 2) 1529 4 Immersion heater (DN50) 1424 5 Drain tap/Temperature sensor (DN20) 1314...
  • Page 18 Installation Guide WT-V Accumulator tanks 2.2.6 WT-V 750 FC (6Bar) Connections 1837 1 Venting (DN32) 1812 2 Heat source (DN50 x 5) 3 Temperature sensor (DN20 x 2) 1501 4 Immersion heater (DN50) 5 Drain tap/Temperature sensor (DN20) 1396 1286...
  • Page 19 Installation Guide WT-V Accumulator tanks 2.2.7 WT-V 750 FC DN80 (3Bar) Connections 1825 1 Venting (DN32) 1804 2 Heat source (DN80 x 4) 3 Temperature sensor (DN20 x 2) 1525 4 Immersion heater (DN50) 1400 5 Drain tap/Temperature sensor (DN20)
  • Page 20 Installation Guide WT-V Accumulator tanks 2.2.8 WT-V 750 FC DN80 (6Bar) Connections 1837 1 Venting (DN32) 1812 2 Heat source (DN80 x 4) 3 Temperature sensor (DN20 x 2) 1491 4 Immersion heater (DN50) 1366 5 Drain tap/Temperature sensor (DN20)
  • Page 21 Installation Guide WT-V Accumulator tanks 2.2.9 WT-V 1000 FC (3Bar) Connections 1947 1 Venting (DN32) 1894 2 Heat source (DN50 x 4) 3 Temperature sensor (DN20 x 2) 1574 4 Immersion heater (DN50) 1394 5 Drain tap/Temperature sensor (DN20) Technical data...
  • Page 22 Installation Guide WT-V Accumulator tanks 2.2.10 WT-V 1000 FC (6Bar) Connections 1900 1 Venting (DN32) 1875 2 Heat source (DN50 x 4) 3 Temperature sensor (DN20 x 2) 1540 4 Immersion heater (DN50) 1435 5 Drain tap/Temperature sensor (DN20) 1325...
  • Page 23 Installation Guide WT-V Accumulator tanks 2.2.11 WT-V 1000 FC DN80 (3Bar) Connections 1947 1 Venting (DN32) 1886 2 Heat source (DN80, x4) 3 Temperature sensor (DN20, x2) 1555 4 Immersion heater (DN50) 1430 5 Drain tap/Temperature sensor (DN20) 1305 Technical data...
  • Page 24 Installation Guide WT-V Accumulator tanks 2.2.12 WT-V 1000 FC DN80 (6Bar) Connections 1900 1 Venting (DN32) 1870 2 Heat source (DN80, x4) 3 Temperature sensor (DN20, x2) 1530 4 Immersion heater (DN50) 1405 5 Drain tap/Temperature sensor (DN20) 1280 Technical data...
  • Page 25 Installation Guide WT-V Accumulator tanks Thermia AB VIBNE502...
  • Page 26 Installation Guide WT-V Accumulator tanks VIBNE502 Thermia AB...
  • Page 27 Installation Guide WT-V Accumulator tanks Thermia AB VIBNE502...
  • Page 28 Internet: www.thermia.com Thermia can accept no responsibility for possible errors in catalogues, brochures and other printed material. Thermia reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequential changes being necessary in specifications already agreed. All trademarks in this material are property of the respective companies.
