Summary of Contents for UNITED DUE-1237

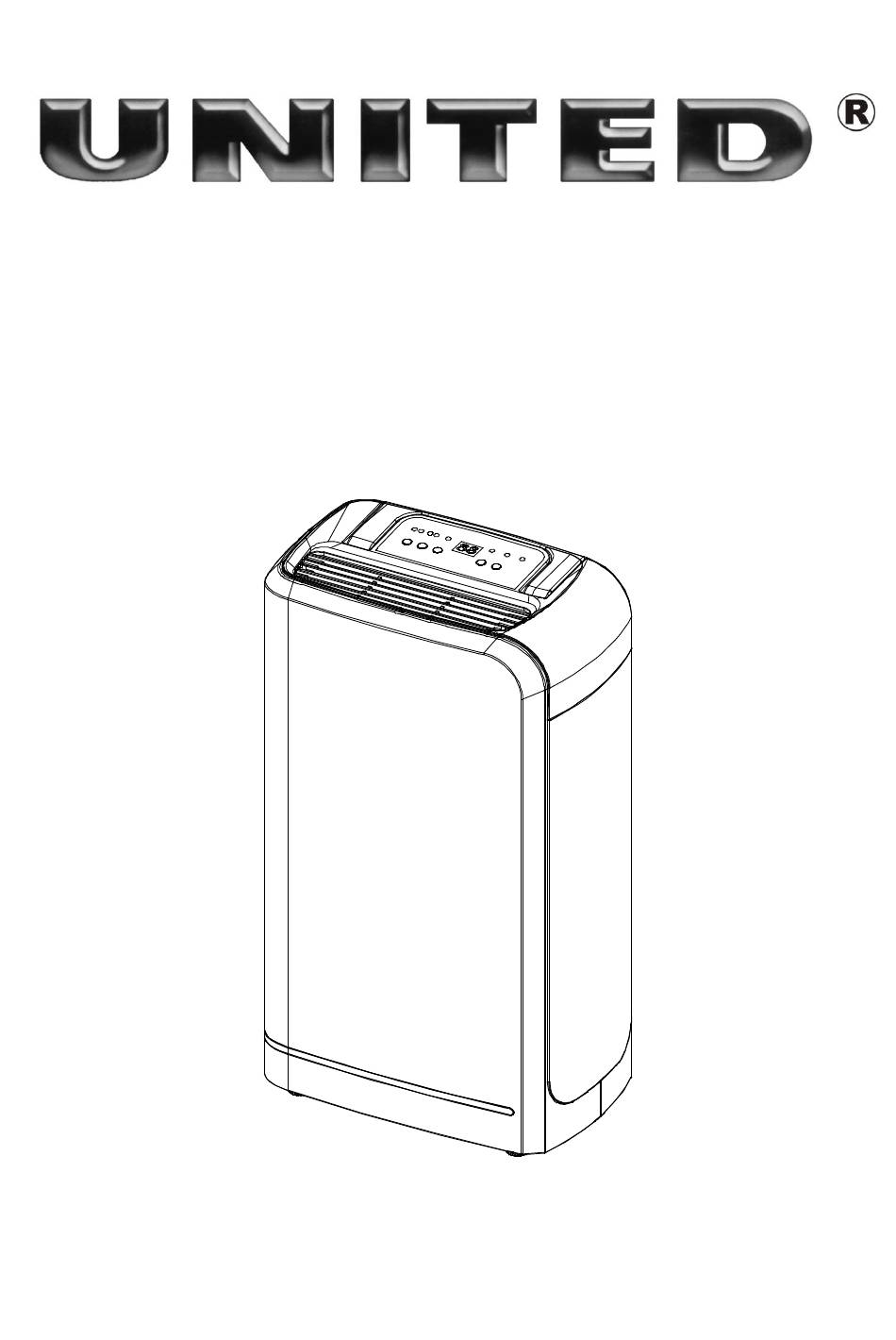

- Page 1 DUE-1237 DEHUMIDIFIER Owner’s Manual KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE...
- Page 2 Thank you for choosing a UNITED Dehumidifier to provide you and your family with your home comfort needs. This owner’s manual will provide you with valuable information necessary for the proper care and maintenance of your new dehumidifier. Please take a few moments to read the instructions thoroughly and familiarize yourself with all the operational aspects of this dehumidifier.
-
Page 3: Safety Warnings
SAFETY WARNINGS When using the unit, please observe the following safety precautions: 1. Unplug the power supply cord before cleaning or storage . 2. DO not submerge the unit in water of place the unit close to water . The appliance shall not be installed in the laundry 3. -
Page 4: Product Diagram
PRODUCT DIAGRAM Parts 1. Side plate 2. Front shell 3. Upper cover 4. Air outlet 5. Handle 6. Control panel 7. Backshell 8. Supply cord 9. Water tank... - Page 5 OPERATING INSTRUCTIONS LED INDICATORS FULL-LED Water full-Led 2. POWER-LED Power Led SET-LED Set-Led TIM-LED Timer-Led LF-LED Low-fan Led HF-LED High-fan Led ION-LED Ioniser-Led...
- Page 6 Humidity Level & Timer 2 digit display The indicator features 3 functions: 1. when the unit is plugged in, it will indicate the room humidity level. 2. when you set the humidity, it will indicate the humidity that you have selected 3.
- Page 7 humidity is equal to or higher than the selected humidity by 2%, compressor will restart once 3-minute compressor protection time over. 5. Press button for the timer setting： Press the button to program the time when the unit turns on and turns off. If you want to cancel the timer programming, press the button to adjust the time at 00, and each time you press the button, it will be circulate from 00-01-02……23-24.
- Page 8 NOTE 1. Do not remove the float from the water tank. The water full sensor will no longer be able to detect the water level correctly without the float and water may leak from the water tank. 2. If the drainage tank is dirty, wash it with cold or lukewarm water. Do not use detergent, scouring pads, chemically treated dust cloths, gasoline, benzene, thinner, or other solvents, as these can scratch and damage the tank and cause water leakage 3.
-
Page 9: Maintenance
MAINTENANCE Cleaning the Dehumidifier To clean the Body Wipe it with a soft damp cloth. To Clean the Air Filter 1. Open the inlet grill firstly and remove the air filter 2. Clean the air filter Run a vacuum cleaner lightly over the surface of the air filter to remove dirt. If the air filter is exceptionally dirty, wash it with warm water and a mild cleanser and dry thoroughly. - Page 10 Storing the Dehumidifier When the unit is not being used for a long period of time and you want to store it note the following steps: 1. Empty any water left in the drainage tank. 2. Fold up the power supply cord and put it in the water tank. 3.
-
Page 11: Troubleshooting
TROUBLESHOOTING If a condition listed below occurs, please check the following items before calling customer service. Problem Possible Cause Solution Has the power cord been Plug the power cord disconnected? into the outlet. Is the tank full indication Empty the water in the The unit doesn't lamp blinking? (The tank is drainage tank and then... - Page 12 ErP Directive 09 / 125 / EC CE Marking: 93 / 68 / EEC RoHS Directive: 11 / 65 / EU The detailed declaration of conformity can be found at www.united-electronics.gr Exclusive importer in Greece: Amiridis – Savvidis S.A. 87A, 17 Noemvriou str, P.C.
