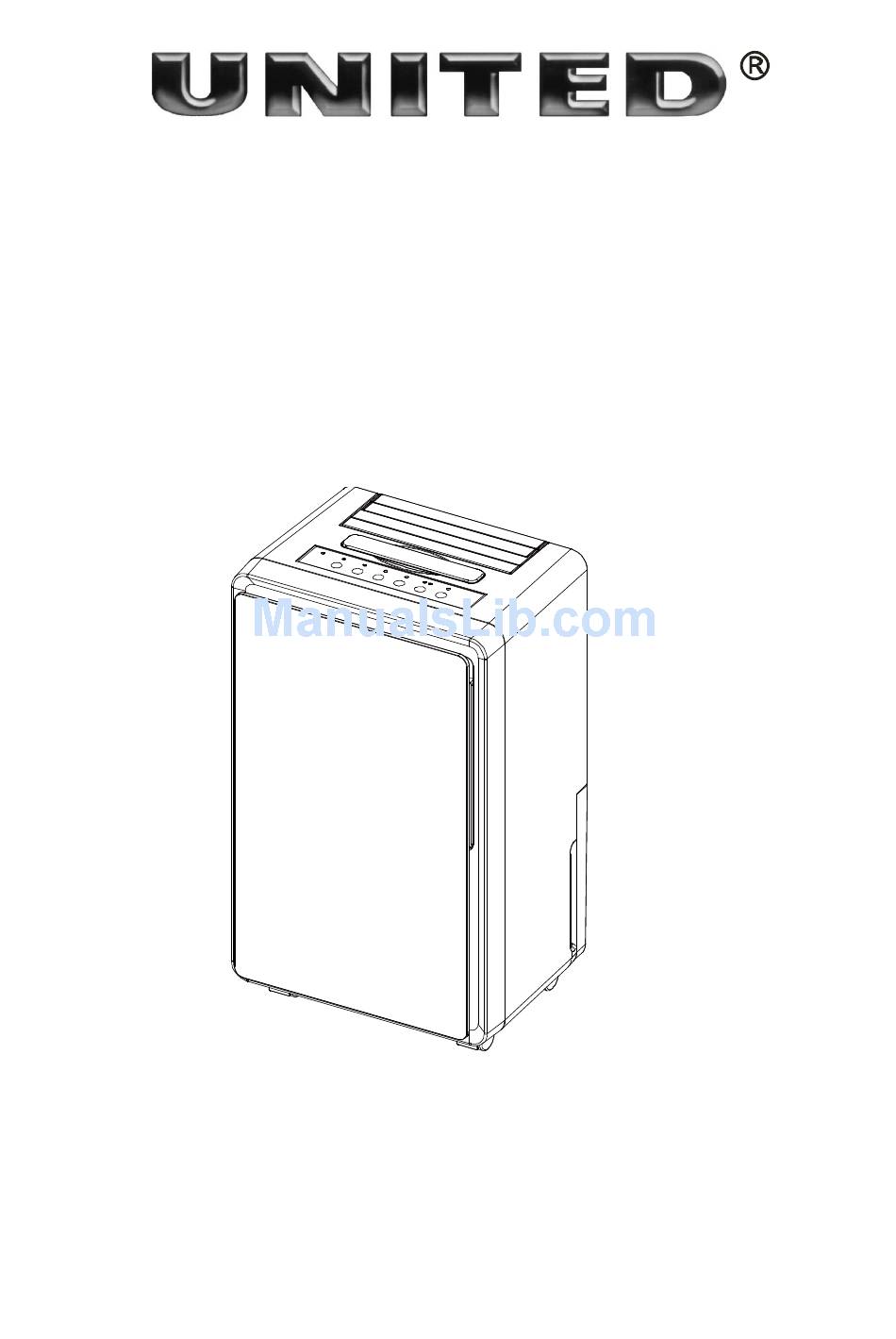

- Page 1 By AMIRIDIS – SAVVIDIS S.A. DEHUMIDIFIER DUE-19 Owner’s Manual KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE...
- Page 2 Thank you for choosing a JHS Dehumidifier to provide you and your family with your home comfort needs. This owner’s manual will provide you with valuable information necessary for the proper care and maintenance of your new dehumidifier. Please take a few moments to read the instructions thoroughly and familiarize yourself with all the operational aspects of this dehumidifier.
- Page 3 FEATURES Powerful Dehumidifying Capability Taking advantage of refrigeration technology, the dehumidifier powerfully removes moisture from the air to decrease the humidity level of the room and keep the indoor air dry and comfortable. Lightweight Portable Design The dehumidifier is built to be compact and lightweight. The casters on the bottom of the unit make it easy to move from room to room.
-
Page 4: Safety Warnings
Energy Efficient The power consumption of the unit is low. SAFETY WARNINGS When using the unit, please observe the following safety precautions: 1. Unplug the power supply cord before cleaning or storage. 2. DO not submerge the unit in water, or place the unit close to water. 3. -
Page 5: Product Diagram
PRODUCT DIAGRAM Parts 1.Front panel 2.Air filter 3.Adjustable humidity setting and timer indication 4.Front 5.Control panel 6. Handle 7.Air outlet 8. Rear panel 9.Water tank 10.Supply cord 11.Wheels OPTIONAL... -
Page 6: Led Indicators
1. Activated carbon filter cloth（Optional） 2. PU filter layer（Optional） OPERATING INSTRUCTIONS LED INDICATORS 1. POWER-LED Green Power Led 2. LF-LED Green Low-fan Led 3. HF-LED Green High-fan Led 4. SET-LED Green Set-Led 5. TIM-LED Green Time-Led 6. SW-LED Green Swing-Led 7. - Page 7 D. Timer Push Button E. Louver settings Button OPERATING INSTRUCTIONS 1. The Power indication light will turn on in green when the unit is plugged in, regardless of whether the unit is operating or not. 2. Press the button once to start operation, the default humidity level is 60%. Press it again to stop operation.
- Page 8 DRAINING THE COLLECTED WATER When the drainage tank is full, the tank full indicator light will turn on, the operation will stop automatically and the buzzer will beep 15 times to alert the user, that the water need to be emptied from the drainage tank . Emptying the Drainage Tank Lightly press on the sides of the tank with both hands and pull the tank out gently.
-
Page 9: Maintenance
Continuous Water Drainage The unit features a continuous drainage port .Using a plastic pipe (with an inner diameter of 10mm) The water in the drainage tank can be continuously drained out from the continuous port on the unit. MAINTENANCE Cleaning the Dehumidifier To clean the Body Wipe it with a soft damp cloth. -
Page 10: Storing The Dehumidifier
is exceptionally dirty, wash it with warm water and a mild cleanser and dry thoroughly. 3. Attach the air filter Insert the filter into the unit in smoothly, and insert the front panel into right place. Storing the Dehumidifier When the unit is not being used for a long period of time and you want to store it note the following steps: 1. - Page 11 Clearance Maintain the minimum clearance around the dehumidifier when the unit is operating as shown in the left drawing.
-
Page 12: Troubleshooting
TROUBLESHOOTING If a condition listed below occurs, please check the following items before calling customer service. Problem Possible Cause Solution Has the power cord been Plug the power cord disconnected? into the outlet. Is the tank full indication Empty the water in the The unit doesn't lamp blinking? (The tank is drainage tank and then... - Page 13 Rohs Directive: 2011/65/EU declare that the DUE- 19 EN 55014-1/A2:2011 EN 55014-2/A2:2008 EN 61000-3-2/A2:2009 EN 61000-3-3:2013 EN 60335-2-40/A13:2012 EN 60335-1:2012 EN 62233: 2008...
