Bohemian Travel Gear 30170 Setup Instructions

12 PERSON INSTANT CABIN TENT - 20 x 10
Before you begin
Read all instructions thoroughly before beginning set up.
• Select a level site clear of rocks, branches, and other hard or sharp objects, to set up your tent.
WARNING: Keep clear of overhead power lines.
• Do not set up your tent under trees because of potential lightning strikes or falling tree limbs
in inclement weather.
• For best results in windy conditions, position narrow end of tent into the wind.
• Secure with all stakes and guylines provided to prevent property damage or personal injury.
• Two people can easily setup this tent in minutes. Scan QR code to view our setup video.
Parts List:
B (2) Canopy Steel Pole
D (2) Divider
A (1) Integrated Frame with Tent Body

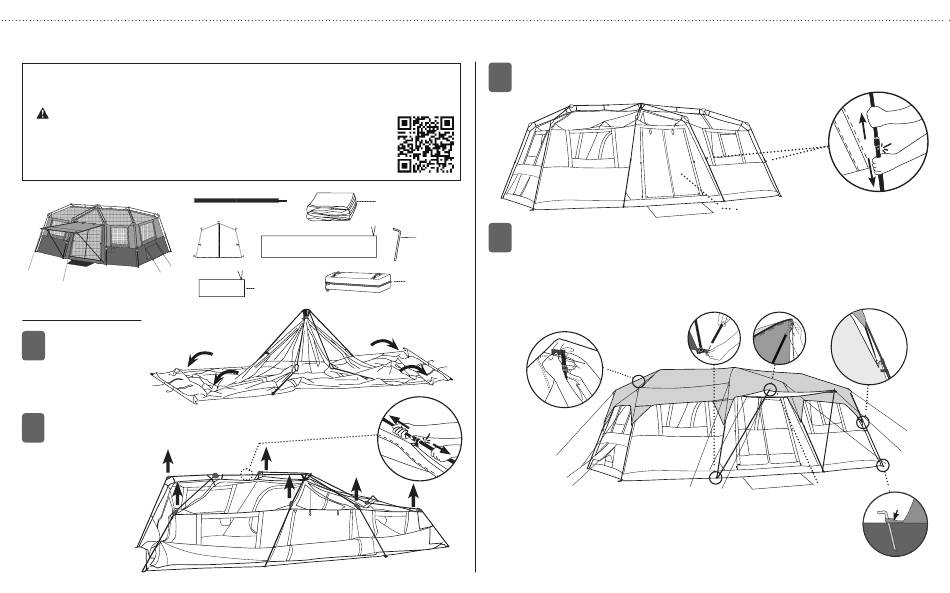

Setup Instructions:
1
• Unfold LEG POLES and spread out tent.
2
NOTE: 2 people will be needed to erect and extend
the tent poles.
• Lift up on ARM JOINTS then extend
UPPER EAVE POLES until
the orange LOCKING
BUTTON "clicks" into
locked position.
• Repeat until all UPPER
EAVE POLES are
extended.
IMPORTANT: Only the
two MAIN ROOF
POLES telescope on
this instant tent.
C (1) Rainfl y w/8 S-hooks
G (22) Stakes
E (1) Pole Bag
H (1) Carry Bag
F (1) Stake Bag
"Click"
STITCH LINE
3
• Extend TELESCOPING LEG POLES until the orange LOCKING BUTTONS "click" into locked position.
NOTE: You can now easily move your tent to its fi nal position before installing the Rainfl y and securing
with stakes and guylines.
4
• Drape RAINFLY over tent then clip HOOK attached to SHOCKCORDS of Rainfl y onto FABRIC LOOPS
on tent.
• Secure RAINFLY to both LEG POLES with HOOK & LOOP FASTENERS (located on underside
of Rainfl y).
• Extend both AWNING SUPPORT POLES then insert into metal ring of AWNING FLAP.
• Insert METAL PIN on each side of DOOR into bottom of AWNING POLE.
NOTE: In inclement weather be sure to close all WINDOW FLAPS; then remove the AWNING POLES
and secure the AWNING FLAP to avoid
possible damage to the tent fabric.
Stake Tent
• Locate WEBBING LOOPS sewn into the corners at the base of your tent.
• Slide STAKE through WEBBING LOOP at each location; then extend out before securing.
NOTE: Floor of tent should be taut when staked properly.
Item No. WMT-201080
Model No. 30170
"Click"
FRONT DOOR/AWNING FLAP
AWNING FLAP
WEB
LOOP
(continued on other side)
