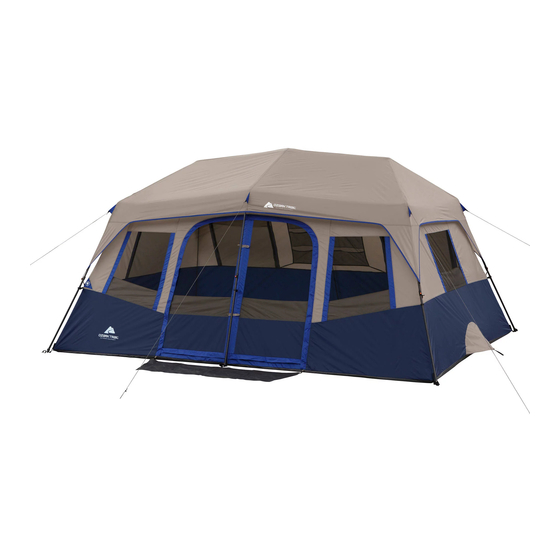

10 PERSON INSTANT TENT - 14 x 10
Before you begin
Read all instructions thoroughly before beginning set up.
• Select a level site clear of rocks, branches, and other hard or sharp objects, to set up your tent.
WARNING: Keep clear of overhead power lines.
• Do not set up your tent under trees because of potential lightning strikes or falling tree limbs in
inclement weather.
• For best results in windy conditions, position narrow end of tent into the wind.
• Secure with all stakes and guylines provided to prevent property damage or personal injury.
• Two people can easily setup this tent in 60 seconds or less. Scan QR code to view our
setup video.
Parts List:
A (1) Integrated Frame with Tent Body
Setup Instructions:
1
• Unfold LEG POLES and spread out tent.
2
NOTE: 2 people will be needed to erect the tent.
• Lift up on each ARM JOINT
as shown. (Detail 1)
B (1) Rainfl y w/6 S-Hooks
D (1) Storage Pocket
E (1) Welcome Mat
G (14) Stakes
F (1) Stake Bag
H (1) Carry Bag
DOOR
STITCH LINE
3
• Extend TELESCOPING LEG POLES until the orange LOCKING BUTTONS
"click" into locked position. (Detail 3)
NOTE: You can now
easily move your tent
to its fi nal position
before installing
the Rainfl y and
securing with stakes
and guylines.
C (1) Divider
4
• Drape RAINFLY over tent as shown.
• Clip HOOK attached to SHOCKCORD of Rainfl y onto FABRIC LOOP on tent. (Detail 4)
• Secure RAINFLY to both LEG POLES with HOOK & LOOP FASTENERS
(located on underside of Rainfl y). (Detail 5)
5
To Secure Tent:
Stake Tent
• Locate WEBBING LOOPS sewn into the corners at the base of
your tent.
1
• Slide STAKE through GUYLINE at each location; then extend
out before securing.
NOTE: Floor of tent should be taut when staked properly.
Secure Tent Guylines
• Locate GUYLINES attached to the Rainfl y and vent fl ap on tent.
• Slide STAKE through loop at each location, extend out and drive in to secure.
NOTE: GUYLINES should extend out at a 45º angle from tent .
• Tighten GUYLINES as needed by adjusting the SLIDER up the cord.
Item No. WMT-141078
Model No. 30169
3
"Click"
4
SLIDER
WEB
LOOP
(continued on other side)
