Bohemian Travel Gear 30166 User Manual

6 PERSON INSTANT DOME TENT - 10 x 9
Before you begin
Read all instructions thoroughly before beginning set up.
• Select a level site clear of rocks, branches, and other hard or sharp objects, to set up your tent.
WARNING: Keep clear of overhead power lines.
• Do not set up your tent under trees because of potential lightning strikes or falling tree limbs in
inclement weather.
• For best results in windy conditions, position narrow end of tent into the wind.
• Secure with all stakes and guylines provided to prevent property damage or personal injury.
• Two people can easily setup this tent in 60 seconds or less. Scan the QR code to view our
30 second setup video.

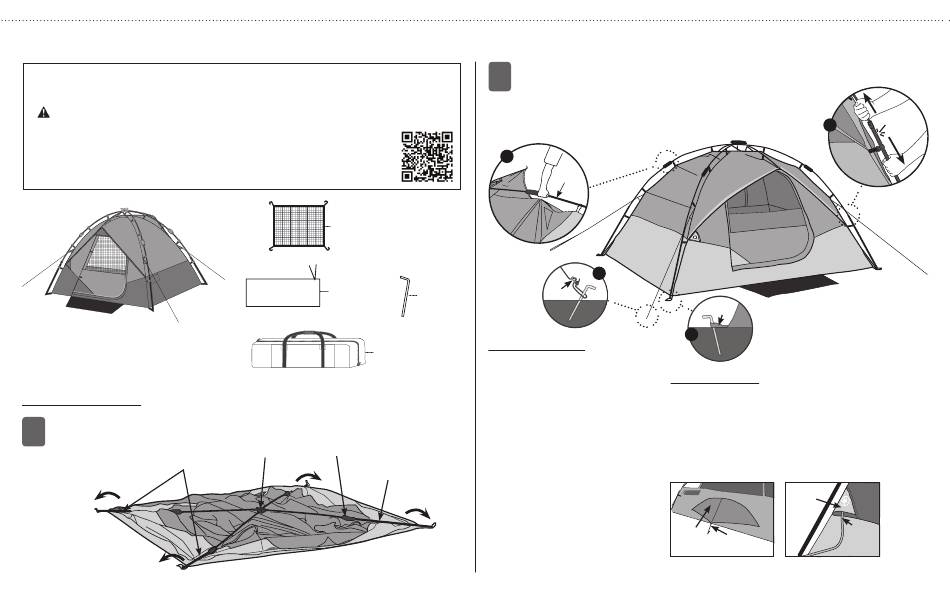

Parts List:
A (1) Integrated Frame with Tent Body
Setup Instructions:
1
• Unfold LEG POLES and spread out tent.
STEEL POLES
B (1) Gear Loft
C (1) Stake Bag
E (1) Carry Bag
ARM JOINTS
HUB ASSEMBLY
STEEL POLE
STITCH LINE
2
• Lift up on the STEEL POLE below ARM JOINT. (Detail 1)
NOTE: Do not lift up on UPPER FIBERGLASS LEG POLES above ARM JOINTS.
• Extend TELESCOPING LEG POLE until the silver LOCKING BUTTON "clicks"
into locked position. (Detail 2)
• Repeat preceeding step for the remaining STEEL LEG POLES.
NOTE: You can now easily move your tent to its fi nal position before securing
with stakes and guylines.
1
STEEL
POLE
SLIDER
D (9) Stakes
To Secure Tent:
Stake Tent
• Locate WEBBING LOOPS sewn into the
corners at the base of your tent.
• Slide STAKE through WEBBING LOOP at
each location; then extend out before
securing. (Detail 3)
NOTE: Floor of tent should be taut when
staked properly.
Secure Tent Guylines
• Locate GUYLINES attached to the
Rainfl y.
• Slide STAKE through loop at each loca-
tion, extend out and drive in to secure.
(Detail 4)
NOTE: GUYLINES should extend out at a
45º angle from tent .
• Tighten GUYLINES as needed by adjust-
ing the SLIDER up the cord. (Detail 4)
4
WEB
LOOP
3
Tent Features:
Rear Vent Flap
• Stretch WEBBING LOOP to open VENT FLAP and secure with
stake. (Fig.1)
Electrical Cord Access
• Insert electrical cord through access panel through access
panel midway up the right front panel of the tent. (Fig. 2)
NOTE: Use only UL approved cords rated for outdoor usage.
REAR
WEBBING
VENT FLAP
LOOP
Fig. 1
Item No. WMT-10964
Model No. 30166
"Click"
2
ACCESS
PANEL
POWER
CORD
Fig. 2 Fig. 2
(continued on other side)
