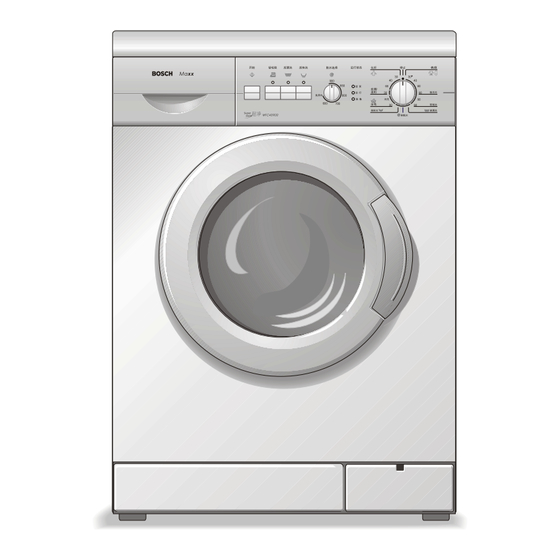

- Page 1 洗衣机使用及安装说明书 Operating and Installation Instructions...
-
Page 2: Table Of Contents
Table of Contents Disposal Information......Operating Instructions Environmental Protection/Conservation Issues..Safety Precautions and Warnings....Product Standard. - Page 3 Operating Instructions Disposal Information The new machine s packaging Dispose of packing materials in a responsible manner. Keep packing materials out of the reach of children. Packing mater -ials are not toys. Reprocessing and re-using materials saves raw materials and reduces waste. All packing materials used are environment friendly and re-usable.
- Page 4 Operating Instructions Precautions and Before using for the first time: Warnings Please read the enclosed documents carefully before using the washing machine for the first time. They contain impor -tant information on the installation, use and safety of the machine. The manufacturer does not accept liability if these instruc- tions are not followed.
- Page 5 Operating Instructions When the programme has ended: When the programme has ended: End indicator comes on. The buzzer of machine sounds (the duration is 10 minutes) to remind the user that the washing programme has ended. Open the loading door after cutting the power of machine.
- Page 6 Operating Instructions Your New Washing Machine Filling laundry detergent and/or additive dispensers. Chamber I: Detergent for pre-wash,starch, or pre-soaking agent. Chamber II: Detergent for main washing period, water softener, blench and stain- removing salt. Chamber Additives, e.g. fabric softener or former(Do not exceed Max ) and close it Open the loading door...
- Page 7 Operating Instructions Control Panel (WFC40900 panel as example) Start button Programme selector For starting the wash cycle For switching the machine on and off and (programme must have been for selecting the programme. Can be rotated selectd). in either direction. If rotate it during the washing, the programme will be stoped.
- Page 8 Operating Instructions Basic program Select the desired programme (refer to Programme table ). 30, 40, 60 C Cottons/coloureds For hard-wearing fabrics. 60 C Intensive Cottons/coloureds For very dirty ,hard-wearing fabrics. Select this programme can remove stain as protein and so on. 90 C Cottons/coloureds An energy-intensive programme for heat-resistant fabrics made from cotton or linen.
- Page 9 Spin speed selector (only for WFC40900) For your clothes, there are different spin speeds in different washing programme of BOSCH washing machines. In the Cottons/Coloureds programme the fabrics will be spun at the maximum possible spin speed. In the Easy-care, Silk/Delicates and Wool programmes a...
- Page 10 Operating Instructions Program duration While the programme is running, the programme duration ｉ may be extended or reduced for the following reasons. Reductions in time occur because of : small loads, reduced heating times, e.g. If the water is very hot. Increases in time occur because of: additional rinse cycle if excessive foam is in the laundry, multiple spinning if the laundry is distributed poorly in the...
- Page 11 Operating Instructions First Wash Cycle The installation of the washing machine is finished. (See page 27-33) Each machine has been tested in the factory. A little bit of water can be left in the drum during the test. Please carry out the first wash cycle without laundry to remove any water left over from the factory tests.
- Page 12 Operating Instructions Make sure that the wire-cup bras are machine washable. Make sure that wire-cup bras in a pillow case which can be securely closed with a zip or buttons. If the wire works itself out of the cup it may fall through the holes of the drum and cause extensive damage.
- Page 13 Operating Instructions Intensive dirt Dirt and/or staining reconizable. - Kitchen hand towels that have been used for up to one week. - Fabric napkins. - Children's outer clothing or football shirts and shorts with grass and soil stains. - working clothes such as overalls or baker's and butcher's coats.
- Page 14 Operating Instructions Loading the laundry ！ Risk of explosion Items of clothing that have been pretreated with solvent-bas- ed cleaning agents, e.g. Stain remover and dry cleaning spirit, represent an explosion hazard once loaded into the washing machine. Therefore, these items must be rinsed thoroughly by hand. Risk of explosion Loose debris in the washing machine drum can damage the laundry.
- Page 15 Operating Instructions ！ Risk of explosion Laundry Detergents and Additives Do not use solvent-based cleaning agents in fully automatic washing machines. Explosion hazard. Keep detergents and additives out of the reach of children. You can use any standard powder or liquid detergent which is suitable for automatic washing machines.
-
Page 16: Washing
Operating Instructions Filling laundry detergent and/or additive dispensers - Do not fill beyond the Max mark, otherwise will be flushed into the machine together with the detergent at the start of the program. - If the liquid addtive is thick, mix with a little water before dis -pensing (prevents clogging of the overflow). - Page 17 Operating Instructions 4. If required, press the button(s) for additional option(s). The indicator light of the selected button is on. 5. Press the Start button. Active indicator light comes on, and the programme starts. The Active indicator light remains lit for the entire duration of the programme.
- Page 18 Operating Instructions A pause in active programme If you want to add/remove the laundry during active pro- gramme and the set programme sequence will not be changed. Remove the plug from the sockeet. Wait about 2 minutes, open the loading door. Add/Remove the laundry Reconnect the power supply, the memory function of the washing machine will continue the interrupted programme.
- Page 19 Operating Instructions Programme table Detergent and Additional Always follow the fabric softener functions manufacture s care label instructions Programme 130(56)* 30 C Cottons/ 130(61)* 40 C coloureds 130(71)* 60 C 60 C 135(78)* Intensive 90 C 130(97)* 157(98)* 60 C +prewash 30 C 78(40)*...
-
Page 20: When The Programmme Has Ended
Operating Instructions When the Programme has ended End indicator light comes on. The buzzer sounds (only for WFC40900). Turn the programme selector to Off . and, where required: Select a programme option Drain , Spin or Rinse. Press the Start button. -
Page 21: Cleaning And Care
Operating Instructions ！ Risk of electric shock! Cleaning and Care Always disconnect the appliance from the mains before cleaning. Never clean the washing machine with a jet of water. ！ Risk of explosion! Never use solvents to clean the appliance. Cleaning the appliance housing and control panel As required:... - Page 22 Operating Instructions Clean the detergent dispenser In the event that residual detergents or additives have accumulated. Pull out the detergent dispenser up to the end stop. Press down the hollow on the insert and remove the detergent dispenser completely. Pull up the insert. Rinse the detergent dispenser under hot running water.
- Page 23 Operating Instructions ！ Risk of Scalding Allow the hot washing solution to cool. Turn the programme selector to Off . Fold down the cover panel. Fold down the cover panel. Carefully remove the pump cap. But do not fully remove it and allow a little more residual water flow into the suitable container.
- Page 24 Operating Instructions Cleaning the strainer at the water tap Disconnect the hose from the water tap. Rinse the strainer under flowing water. Reconnect the hose. Cleaning the strainer on the washing machine Disconnect the hose from the back of the washing machine.
-
Page 25: Troubleshooting Minor Faults
Operating Instructions ！ Trouble Shooting Risk of electric shock Minor Faults Repairs must only be carried out by our Customer Service or an authorized technician. If repairs are needed, and assuming that you cannot elim- inate the fault youself with the aid the following table: Turn the programme selector to Off . - Page 26 Operating Instructions Fault Possible cause Action Water tap not turned on. Turn on water tap. Water does not enter the machine or detergent is Strainer in supply hose Clean the strainer not wash away. clogged. (refer to Page 23) The Active indicator light comes on and the buzzer sounds.
- Page 27 Operating Instructions Fault Possible cause Action The programme takes longer This is not a fault. Wash large and small items than usual. The imbalance compensat- together to reduce imbalances. ion system is attempting to balance the load by distrib- uting the laundry more evenly.
-
Page 28: Installation, Connection And Transport
Operating Instructions Safety information Installation, Connection and Transport ！ Risk of injury The washing machine is heavy. Take care when lifting it. Caution Frozen hoses can tear/burst. Do not install the washing ma- chine outdoors or in an area prone to frost. Take care not to damage the washing machine . - Page 29 Operating Instructions Installation location To ensure the proper operation of the machine, please pay attention to the following when you install the machine. The floor should be solid and flat, never put the machine on the soft carpet or on the wood floor. Keep the environment dry and vented.
- Page 30 Operating Instructions Insert the covers. Hose and cable lengths Left-hand connection Right-hand connection...
- Page 31 Operating Instructions Water connection Water supply For the water connection a standard cold-water line with a minimum water pressure of 0.1MPa is required (with tap full ON, at least 8 litres of water must flow out in one minute). If the water pressure exceeds 1MPa, a pressure reducing valve must be added.
- Page 32 Operating Instructions Water Drainage Water Drainage Caution Do not bend or pull the water drainage hose. Height between the placement area and drainage point: maximum 100cm, minimum 60cm. Drainage into a wash basin( The hose elbow is in the drum). Caution The plug must not block the drain of the wash basin.
- Page 33 Operating Instructions Transport e.g. when moving Before transporting the washing machine: Turn off the water tap, Drain any residual washing solution (refer to Page 21), Release the water pressure in the supply hose(refre to Page 22), Disconnect the washing machine from the mains, Dismantle the supply and drainage hose, Install the transport bolts.
- Page 34 Operating Instructions Electrical connection When heating, the maximum current of the washing mach- ine is 10A, so please make suer that the power supply sys- tem (voltage, current and cable) is applicable to the load of the applied appliance. The machine must only be connect to an alternating curr- ent supply via a correctly installed earthed socket.
-
Page 35: Technical Data
Technical Data & Package Sheet Technical Data Models WFC40700 WFC40900 Items Rated voltage: 220V~ 220V~ Rated frequency: 50Hz 50Hz Washing capacity: 4.5kg 4.5kg Spinning capacity: 4.5kg 4.5kg Water pressure: 0.1~1MPa 0.1~1MPa Water proof: IPX4 IPX4 Washing power: 200W 200W Spinning power: 450W... -
Page 36: Warranty
Customer Service Warranty According to the Regulations of Responsibility concerning Repair, Exchange and Return of some commodities, war- ranty period of appliance purchased for home use purpose is one year for the complete unit and three years for the functional parts. Warranty period of appliances purchased for business, commercial or company use is 3 months for complete unit and functional parts unless otherwise speci- fied in the contract. -
Page 37: Service Assurance
Customer Service Service Assurance 24 hours hotline service Door to door service within 24 hours within city boundary Free of charge installation except additional material cost Free of charge consulting Be responsible for service a lifetime long... -
Page 38: Warranty Card
Customer Service Warranty card Customer Name Contact telepone Address Purchase date Product code Invoice no. Station telephone Maintenance station Record sheet 5 Address Customer Name Invoice no. Purchase date Product code Production date Maintenance date Serial number Record sheet 4 Address Customer Name Invoice no. - Page 39 5120 004598 (PD 84 09 17) 800免费咨询电话：8008280088 全国统一客户服务专线：4008855888 未开通800地区拨打：0550-3062800 传真：0550-3072600 客户服务电子信箱E-mail: Careline.China@BSHG.com...
