Electriflame VR Electric Stoves
Electriflame VR Arundel - B-1009096 - CEVRSARE
Electriflame VR Luxima - B-1009097 - CEVRSLRE
Electriflame VR Rochester - B-1009098 - CEVRSRRE
Packing Checklist
Electric Fire
Remote Control Handset*
Log Set
Ember Ice Set
Instruction Manual
*THIS PRODUCT REQUIRES 2 X AAA BATTERIES FOR USE IN THE HANDSET (NOT SUPPLIED)
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE
INSTALLATION AND USE OF THIS ELECTRIC FIRE AND RETAIN
Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3
years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its
intended normal operating position and they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall
not plug in, regulate and clean the appliance or perform user maintenance.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or
learning disabilities, or lack of experience and knowledge, unless given supervision or instruction concerning use of
the appliance by a person responsible for their safety.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
ELECTRISTOVES
BY
IMPORTANT
FOR FUTURE REFERENCE.
Model No's:
Page 1
Advertisement
Table of Contents
Related Manuals for Celsi Electriflame VR Arundel B-1009096
Summary of Contents for Celsi Electriflame VR Arundel B-1009096

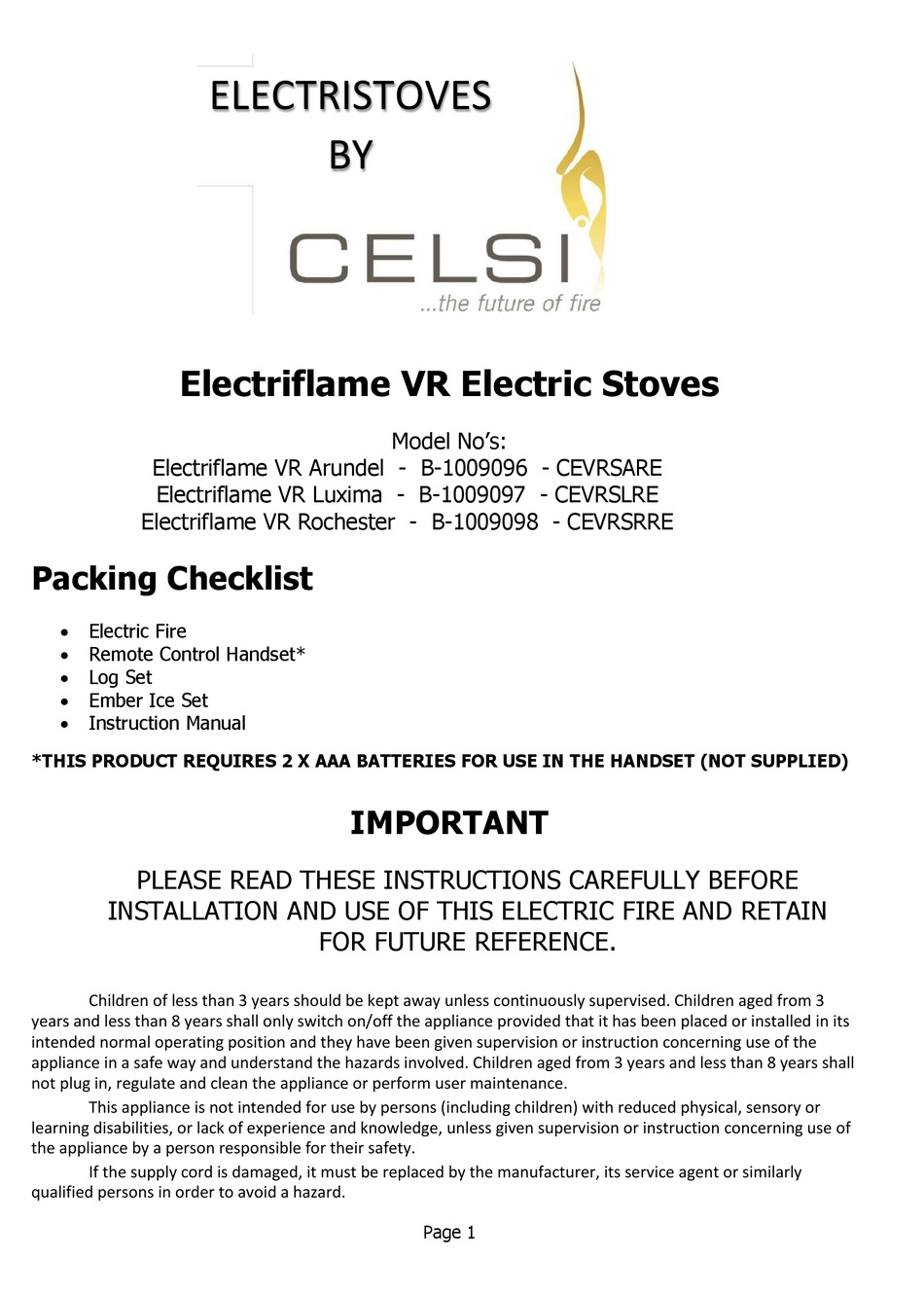

- Page 1 ELECTRISTOVES Electriflame VR Electric Stoves Model No’s: Electriflame VR Arundel - B-1009096 - CEVRSARE Electriflame VR Luxima - B-1009097 - CEVRSLRE Electriflame VR Rochester - B-1009098 - CEVRSRRE Packing Checklist Electric Fire Remote Control Handset* ...
-
Page 2: Important Safety Advice
IMPORTANT SAFETY ADVICE WHEN USING AN ELECTRICAL APPLIANCE, BASIC PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND INJURY TO PERSONS, INCLUDING THE FOLLOWING IMPORTANT SAFETY ADVICE. DO NOT cover the heater, to avoid overheating of the product. DO NOT leave the heater unattended while it is in use. -
Page 3: Fire Dimensions
Product Technical Data Sheet Supplier Name / Trademark CELSI Supplier Model Identifier B-1009096, B-1009097, B-1009098 ELECTRIFLAME VR ARUNDEL, LUXIMA, ROCHESTER Voltage 230v AC 50HZ Fuse 13 Amp Nominal Heat Output (Measured) 2.0 kW Minimum Heat Output (Indicative) 1.0 kW Maximum Continuous Heat Output 2.0 kW... -
Page 4: Choosing A Suitable Location
ROCHESTER Unpacking Remove and discard the plastic bag. Be responsible when handling the packing materials. Keep the original packaging for future transportation and/or storage. Check all accessories are removed from the packaging before storing it away for future use. KEEP PLASTIC BAGS AWAY FROM CHILDREN! Choosing a suitable location The stove must have a minimum clearance of 50mm to combustible material on all sides. - Page 5 2000 watts (2kw). This appliance must be earthed. Allow sufficient flex to enable the fire to be removed from the wall. Do not use an extension lead This appliance must be earthed. Always ensure that all electrical work complies with the relevant Building Regulations and the Electrical Code of Practice.
- Page 6 Page 6...
-
Page 7: Operating The Fire
Operating the Fire Manual Control This appliance can be operated manually using the controls situated on the right-hand underside of the upper canopy or by the included remote-control handset. ON / OFF Power Switch This switch is used to turn the mains supply to the appliance ON or OFF. When the switch is in the ON position an indicator light located in the centre of the screen will glow amber to indicate the appliance is switched on and in standby mode. -
Page 8: Remote Control
Remote Control Remove the battery / control panel cover by sliding completely down and insert 2 x AAA batteries ensuring the batteries are fitted correctly. Refit the cover by sliding back up to the original position. Please ensure old batteries are disposed of responsibly by contacting your local authority about recycling schemes. - Page 9 Smart Control functions The Smart Control panel reveals additional buttons to allow the following functions Set the Time of day Thermostatic temperature adjustment from 16 to 30°C Set 7-day timer with up to 3 programmable periods per day ...
- Page 10 To set Timer 2 & 3 or alter timer programme. 8. Repeatedly pressing the TIMER button will cycle through the 3 available timer programmes displaying the set parameters. To change or set an additional timer programme choose the Timer number required and press the SELECT button. 9.
-
Page 11: Maintenance Instructions
IMPORTANT This appliance is fitted with an automatic thermal cut-out safety feature to reduce the risk of damage to appliance due to overheating. If the appliance overheats the heater element will cut out whilst the fan will still continue to run to allow the fire to cool down sufficiently. Once the appliance has cooled down the thermal cut-out will reset itself and switch the heater back on. -
Page 12: Warranty
Warranty In the unlikely event of a problem occurring due to a manufacturing fault within 24 months from the date of purchase of the appliance it will be repaired or replaced free of charge. This warranty does not cover consumable items which have a limited lifespan. If a problem should occur, the nature of the problem together with the date of purchase and installer information should be immediately reported to the retailer that the appliance was purchased from.
