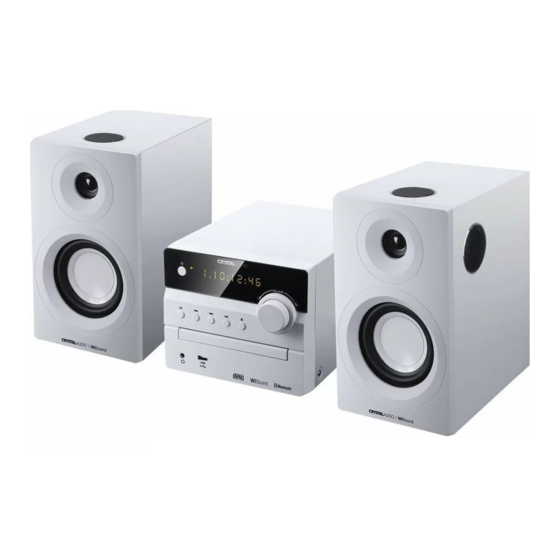

Thank you for purchasing Crystal Audio 3D-HIFI360 system
This mini Hi-Fi system is the answer to today's demand for great sound, offering deep and powerful bass with incredible dispersion.
Small yet powerful Hi-Fi system, it produces excellent sound with realistic height from a wide sound stage.
TECHNICAL SPECIFICATIONS:
Power Output (RMS):
50W (2x 25W)
Max. Power Output:
75W
Woofer:
2x 4"
Tweeter:
6x 2"
Freq. Response:
20Hz - 20KHz
Impedance:
4Ω
S/N:
80dB
Frequency Ranges:
87.5 - 108MHz
MP3/WMA Bit Rate:
32-320Kbps (MP3)
40-320Kbps (WMA)
Rated Voltage:
AC 110-240V, 50/60Hz
Power Consumption:
75W
Standby Consumption:
< 0.5W
Dimensions (Main unit):
170x215x145mm
Dimensions (Speakers):
142x210x245mm
Front View
3D-HIFI360
CONNECTIVITY FEATURES:
• Bluetooth® v5.0
• USB2.0 port
up to 32Gb, FAT16/32 file system
NTFS, ext. HDD, USB hubs/extension cables
• AUX In
• Headphones
OTHER FEATURES:
• CD/CD-R/CD-RW/MP3/WMA
• FM Radio
• LED Display
(each)
ON/OFF
Standby button
CD
tray
USB
port
Phones
USB
www.CrystalAudio.gr
- Quick Guide -
IN THE BOX:
• 3D-HIFI360 mini Hi-Fi system
• User Manual
• Remote Control
• AUX cable (3.5mm-RCA type)
• FM Antenna cable
Control
buttons
IR
Remote
sensor
Volume
knob
Advertisement
Related Manuals for Crystal Acoustics 3D-HIFI360
Summary of Contents for Crystal Acoustics 3D-HIFI360

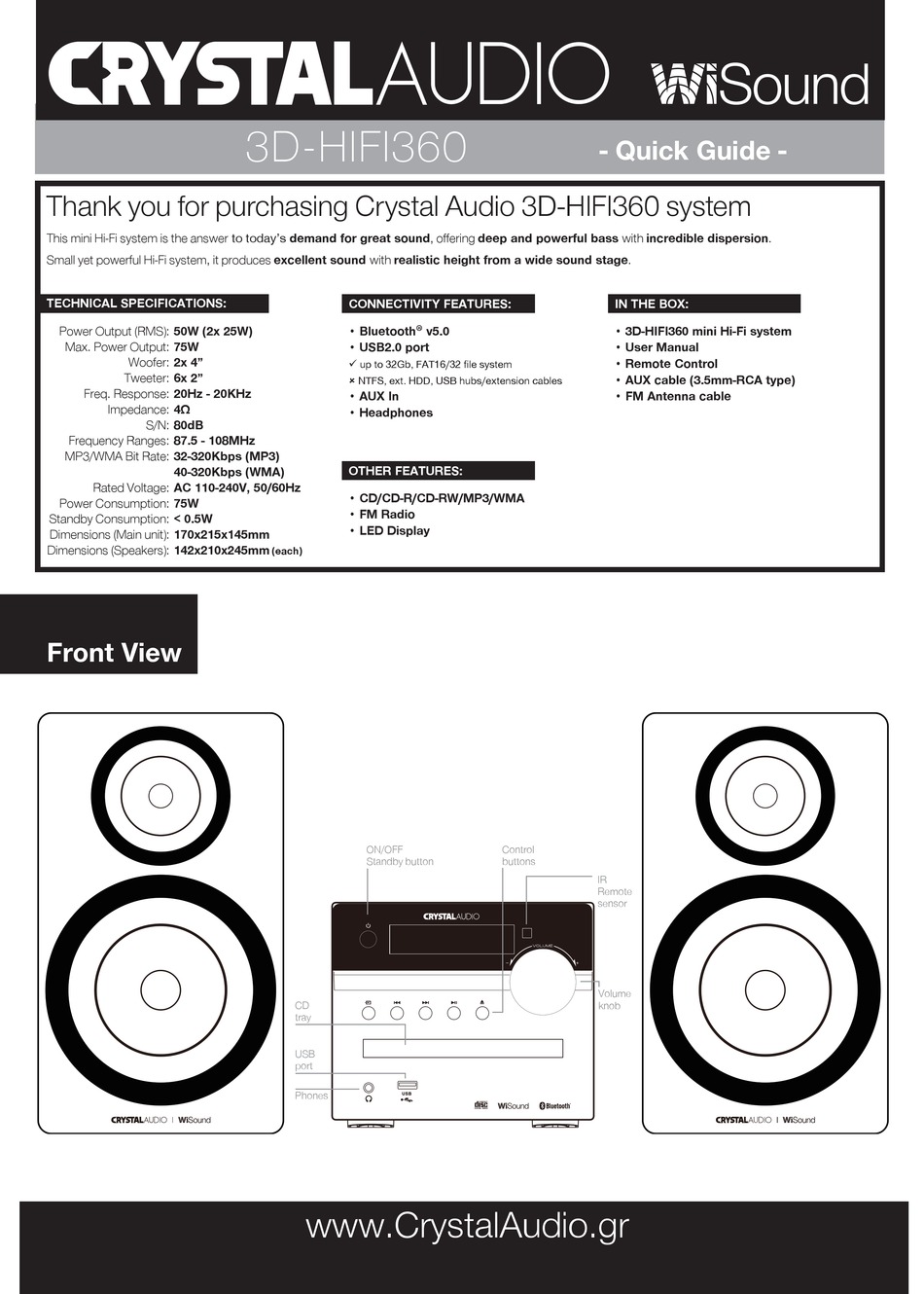

- Page 1 3D-HIFI360 - Quick Guide - Thank you for purchasing Crystal Audio 3D-HIFI360 system This mini Hi-Fi system is the answer to today’s demand for great sound, offering deep and powerful bass with incredible dispersion. Small yet powerful Hi-Fi system, it produces excellent sound with realistic height from a wide sound stage.
- Page 2 Connect the mains plug into the electrical outlet. Pair it (wireless connection) You can pair 3D-HIFI360 with any Bluetooth® enabled device (phone, tablet etc). 1. Press the SOURCE button to select BT 2. On your device, (Bluetooth Mode). The indication on the LED...
- Page 3 Program it (create a playlist, up to 9 songs) 1. In CD mode: Load a disc and press STOP. Press PROG and enter the first track number. Press PROG again to confirm. Enter the second number and follow the same procedure to set your playlist. 2.
- Page 4 The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG Inc. and any Crystal Audio hereby declares that the product, 3D-HiFi360, is in conformity with provisions of the Directive 2014/53/ΕU. use of such marks by Crystal Audio is under license. Other trademarks and trade names are those of The complete text of the Declaration of conformity can be found on the following webpage: www.CrystalAudio.com...
