VP249 Series
LCD Monitor
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VP249HE and is the answer not in the manual?

Questions and answers

Summary of Contents for Asus VP249HE

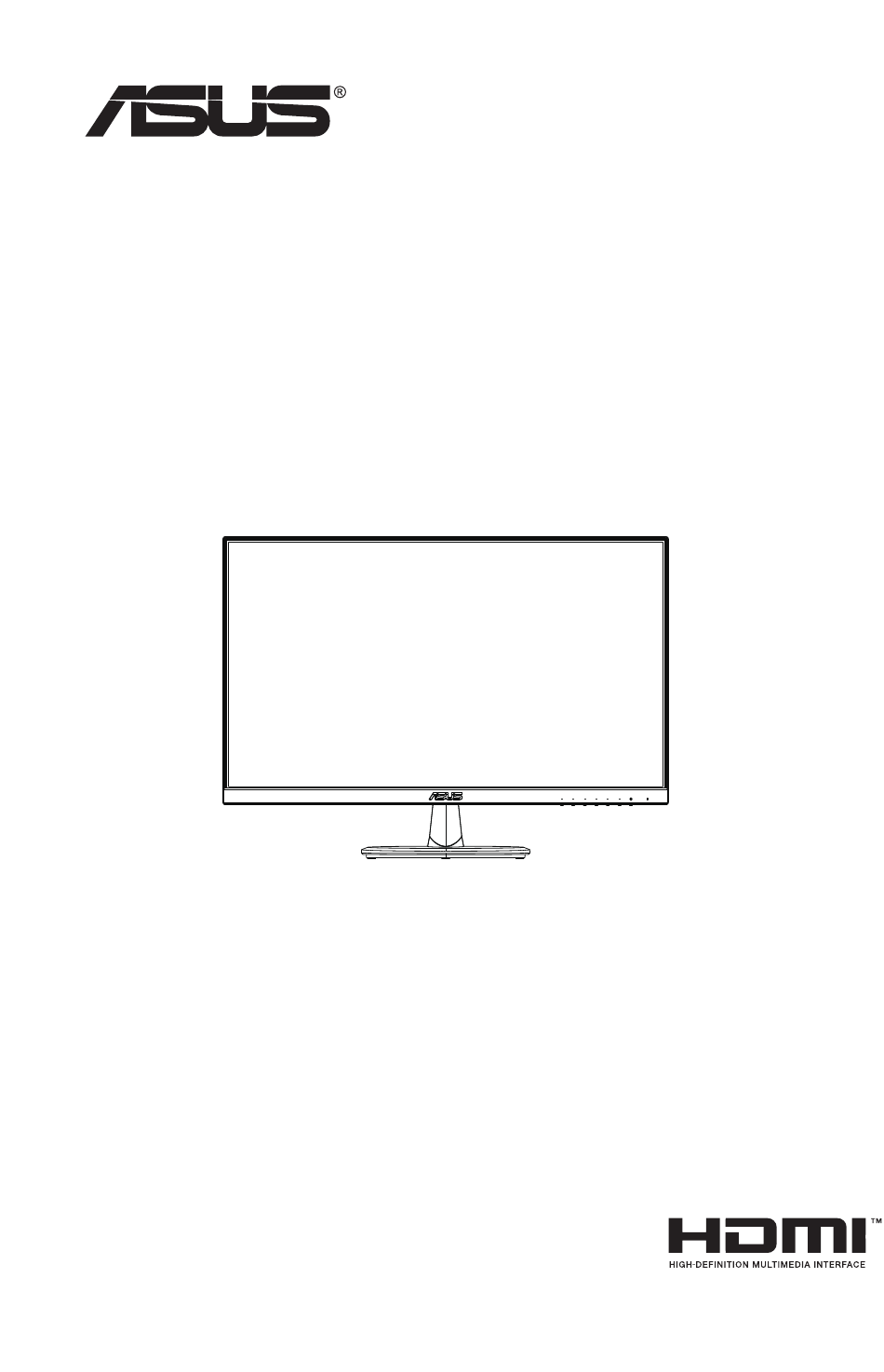

  • Page 1 VP249 Series LCD Monitor User Guide...
  • Page 2: Table Of Contents

    Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.
  • Page 3: Notices

    Notices Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation.
  • Page 4 Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury.
  • Page 5 WARNING Usage of other than specified head- or earphones can result in hearing loss due to excessive sound pressures.
  • Page 6: Care & Cleaning

    Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord. • Cleaning.
  • Page 7 Refer to the following sources for additional information and for product and software updates. ASUS websites The ASUS websites worldwide provide updated information on ASUS hardware and software products. Refer to http://www.asus.com Optional documentation Your product package may include optional documentation that may have been added by your dealer.
  • Page 8: Welcome

    ® Thank you for purchasing the ASUS LCD monitor! The latest widescreen LCD monitor from ASUS provides a crisper, broader, and brighter display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual...
  • Page 9: Assembling The Monitor

    Assembling the monitor To assemble the monitor: Place the display flat on a cloth on the table, Then attach the base to the arm and fix with the screw to join them tightly. You can easily tighten the screw by fingers. Adjust the monitor to the angle that is most comfortable for you. -5 ~ 20 Outline dimension Unit: mm [inch] Chapter 1: Product Introduction...
  • Page 10: Connect Cables

    Connect cables 1.5.1 Rear of the LCD monitor HDMI VP249HR HDMI VP249HE AC-IN Port HDMI Port VGA Port Audio - in Port Kensington Lock ASUS LCD Monitor VP249 Series...
  • Page 11: Monitor Introduction

    Monitor introduction 1.6.1 Using the Controls button Use the control button on the back of the monitor to adjust the image settings. Power Indicator: • The color definition of the power indicator is as the below table. Status Description White Amber Standby mode Power Button:...
  • Page 12 Shortcut key1 • This is a Shortcut key. The default setting is Brightness. Shortcut key2 • This is a Shortcut key. The default setting is Blue Light Filter. ASUS LCD Monitor VP249 Series...
  • Page 13: Quickfit Function

    1.6.2 QuickFit Function The QuickFit function contains three patterns: (1) Grid (2) Paper size (3) Photo size. Grid pattern: Facilitates designers and users to organize content and layout on one page and achieve a consistent look and feel. Alignment Grid 1 Alignment Grid 2 Paper size: Provides users to view their documents in real size on the screen.
  • Page 14: Detaching The Arm/Stand (For Vesa Wall Mount)

    Hold the stand of the monitor while removing the screws. • The VESA wall mount kit ( 100 x 100 mm) is purchased separately. • Use only the UL Listed Wall Mount Bracket with minimum weight/load 12 kg (Screw size: M4 x 10 mm). ASUS LCD Monitor VP249 Series...
  • Page 15: Adjusting The Monitor

    Adjusting the monitor • For optimal viewing, we recommend that you look at the full face of the monitor, then adjust the monitor to the angle that is most comfortable for you. • Hold the stand to prevent the monitor from falling when you change its angle.
  • Page 16: Osd (On-Screen Display) Menu

     or  buttons, according to the indicators on the menu, to make your changes. Select the to return to previous menu or to accept and return to previous menu. ASUS LCD Monitor VP249 Series...
  • Page 17: Osd Function Introduction

    In the sRGB, the Saturation, Color Temp., SkinTone, Sharpness, Brightness, Contrast and ASCR functions are not user-configurable. • In the Reading Mode, the Saturation, SkinTone, Sharpness, ASCR, contrast, and Color Temp functions are not user-configurable. ASUS LCD Monitor VP249 Series...
  • Page 18 Blue Light Filter Adjust the energy level of blue light emitted from LED backlight. ASUS VP249 Blue Light Filter Standard Mode VGA 1920x1080@60Hz Level 0 Level 1 Level 2 Level 3 Level 4 • Level 0: No change. • Level 1~4: The higher the level,the more blue light will be reduced.
  • Page 19 • Skin Tone: Contains three color modes including Reddish, Natural, and Yellowish. • In the User Mode, colors of R (Red), G (Green), and B (Blue) are user- configurable; the adjusting range is from 0 ~ 100. ASUS LCD Monitor VP249 Series...
  • Page 20 0 to faster 100. • Aspect Control: Adjusts the aspect ratio to “Full”, “4:3”, “Overscan(Only For HDMI)”. • VividPixel: ASUS Exclusive Technology that brings lifelike visuals for crystal-clear and detail-oriented enjoyment. The adjusting range is from 0 to 100.
  • Page 21 Select the input source from VGA, HDMI input signal. ASUS VP249 Input Select Standard Mode VGA 1920x1080@60Hz HDMI System Setup Adjusts the system configuration. ASUS VP249 System Setup Standard Mode VGA 1920x1080@60Hz Splendid Demo Mode Volume GamePlus ECO Mode OSD Setup Language Key Lock More ASUS LCD Monitor VP249 Series...
  • Page 22 ASUS VP249 System Setup Standard Mode VGA 1920x1080@60Hz Back Information Power Indicator Power Key Lock All Reset • Splendid Demo Mode: Activate the demo mode for the Splendid function. • Volume: Adjusts the output volume level.(VP249HR Only) • GamePlus: The GamePlus Function provides a toolkit and creates a better gaming environment for users when playing different types of games.
  • Page 23 The default setting is Brightness. • Shortcut 2: User can select from “Blue Light Filter” “Splendid”, “Brightness”, “Auto Adjust”, “Contrast”, “Color Temp.”, “Volume(VP249HR Only)”, “GamePlus”, and set as shortcut key. The default setting is Blue Light Filter. ASUS LCD Monitor VP249 Series...
  • Page 24: Specifications

    3.2 Specifications Model VP249HR VP249HE Panel Size 23.8’’W(60.45cm) Max. Resolution 1920x1080 Brightness (Typ.) 250cd/m Intrinsic Contrast Ratio 1000:1 (Typ.) Viewing Angle (CR>10) 178°(H) /178°(V) Display Colors 16.7 M(6bit+FRC) Response Time 5ms (G To G ) Satellite Speaker 2W x 2 stereo...
  • Page 25: Troubleshooting (Faq)

    • Adjust the volume settings of both your monitor and computer. • Make sure the computer sound card driver is properly installed and activated. • Make sure the audio source is correct on the OSD. ASUS LCD Monitor VP249 Series...
  • Page 26: Supported Timing List

    Supported Timing List PC Supported Primary Timing Resolution Refresh Rate Horizontal Frequency 640x480 60Hz 31.469kHz 640x480 72Hz 37.861kHz 640x480 75Hz 37.5kHz 800x600 56Hz 35.156kHz 800x600 60Hz 37.879kHz 800x600 72Hz 48.077kHz 800x600 75Hz 46.875kHz 1024x768 60Hz 48.363kHz 1024x768 70Hz 56.476kHz 1024x768 75Hz 60.023kHz 1152x864...
  • Page 27 59.94 / 60Hz 67.433 / 67.5kHz * The modes not listed in the above tables may not be supported. For optimal resolution, we recommend that you choose a mode listed in the above tables. ASUS LCD Monitor VP249 Series 3-11...
