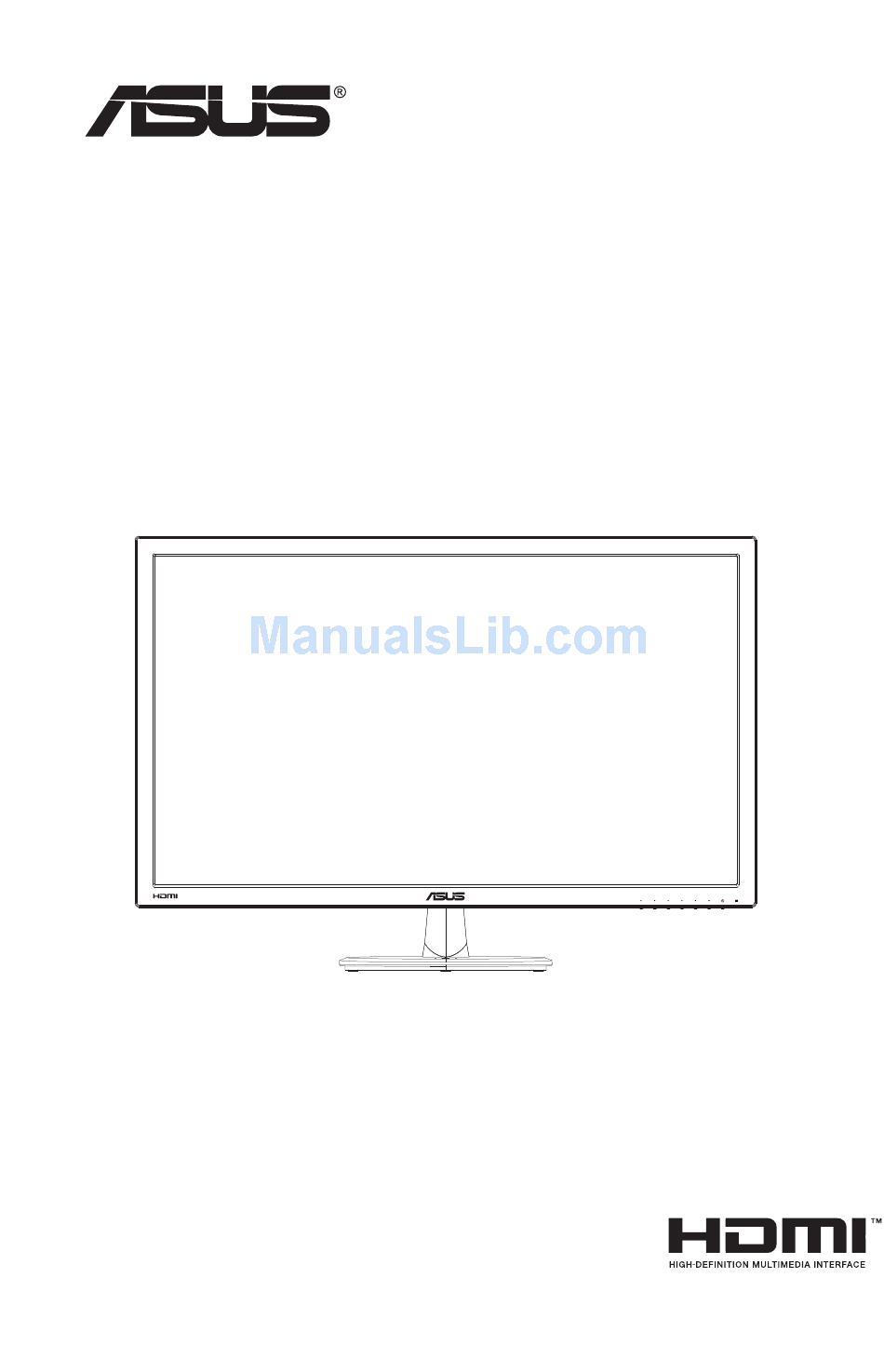

Page 1: User Guide
VP247 Series LCD Monitor User Guide... -
Page 2: Table Of Contents
Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing. -
Page 3: Notices
Notices Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation. - Page 4 TCO Information Congratulations! This display is designed for both you and the planet! The display you have just purchased carries the TCO Certified label. This ensures that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world.
-
Page 5: Safety Information
Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury. - Page 6 WARNING Usage of other than specified head- or earphones can result in hearing loss due to excessive sound pressures.
-
Page 7: Care & Cleaning
Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord. • Cleaning. - Page 8 Refer to the following sources for additional information and for product and software updates. ASUS websites The ASUS websites worldwide provide updated information on ASUS hardware and software products. Refer to http://www.asus.com Optional documentation Your product package may include optional documentation that may have been added by your dealer.
-
Page 9: Welcome
® Thank you for purchasing the ASUS LCD monitor! The latest widescreen LCD monitor from ASUS provides a crisper, broader, and brighter display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual... -
Page 10: Assembling The Monitor
Assembling the monitor To assemble the monitor: Place the display flat on a cloth on the table, Then attach the base to the arm and fix with the screw to join them tightly. You can easily tighten the screw by fingers. Adjust the monitor to the angle that is most comfortable for you. -5 ~ 20 Chapter 1: Product Introduction... -
Page 11: Connect Cables
Connect cables 1.4.1 Rear of the LCD monitor HDMI VP247H VP247T AC-IN Port HDMI Port DVI Port VGA Port Audio - in Port Kensington Lock ASUS LCD Monitor VP247 Series... -
Page 12: Monitor Introduction
Monitor introduction 1.5.1 Using the Controls button Use the control button on the back of the monitor to adjust the image settings. VP247H VP247T Auto Power Indicator: • The color definition of the power indicator is as the below table. - Page 13 • Press this button to enter the OSD menu. Close Button • Exit the OSD menu. Input Select Button: • Use this hotkey to switch from VGA, DVI, HDMI(VP247H Only) input signal. QuickFit Button: • This is a hotkey to activate the QuickFit function designed for alignment.
-
Page 14: Quickfit Function
1.5.2 QuickFit Function The QuickFit function contains three patterns: (1) Grid (2) Paper size (3) Photo size. Grid pattern: Facilitates designers and users to organize content and layout on one page and achieve a consistent look and feel. Alignment Grid 1 Alignment Grid 2 Paper size: Provides users to view their documents in real size on the screen. -
Page 15: Detaching The Arm/Stand (For Vesa Wall Mount)
Hold the stand of the monitor while removing the screws. • The VESA wall mount kit ( 100 x 100 mm) is purchased separately. • Use only the UL Listed Wall Mount Bracket with minimum weight/load 12 kg (Screw size: M4 x 10 mm). ASUS LCD Monitor VP247 Series... -
Page 16: Adjusting The Monitor
Adjusting the monitor • For optimal viewing, we recommend that you look at the full face of the monitor, then adjust the monitor to the angle that is most comfortable for you. • Hold the stand to prevent the monitor from falling when you change its angle. -
Page 17: Osd (On-Screen Display) Menu
or buttons, according to the indicators on the menu, to make your changes. Select the to return to previous menu or to accept and return to previous menu. ASUS LCD Monitor VP247 Series... -
Page 18: Osd Function Introduction
Splendid This function contains eight sub-functions that you can select for your preference. Each mode has the Reset selection, allowing you to maintain your setting or return to the preset mode. ASUS VP247 Splendid Standard Mode VGA 1920x1080@60Hz Scenery Mode... - Page 19 • Between Level 1 to Level 3, the Brightness function is user-configurable. • Level 4 is optimized setting. It is compliance with TUV Low Blue Light Certification. The Brightness function is not user-configurable. ASUS LCD Monitor VP247 Series...
- Page 20 Color Select the image color you like from this function. ASUS VP247 Color Standard Mode VGA 1920x1080@60Hz Brightness Contrast Saturation Color Temp. Skin Tone Smart View • Brightness: The adjusting range is from 0 to 100. • Contrast: The adjusting range is from 0 to 100.
- Page 21 0 to faster 100. • Aspect Control: Adjusts the aspect ratio to “Full”, “4:3”, “Overscan(Only For HDMI)”. • VividPixel: ASUS Exclusive Technology that brings lifelike visuals for crystal-clear and detail-oriented enjoyment. The adjusting range is from 0 to 100.
-
Page 22: Input Select
Clock (pixel frequency) controls the number of pixels scanned by one horizontal sweep. If the frequency is not correct, the screen shows vertical stripes and the image is not proportional. Input Select Select the input source from VGA, DVI, HDMI(Only For VP247H) input signal. ASUS VP247 Input Select... - Page 23 • Select ON to enter the GamePlus main menu. • Press to select between Crosshair and Timer function. • Press to confirm the function you choose. Press to go back. Press to go off, and exit. ASUS LCD Monitor VP247 Series...
- Page 24 GamePlus main menu GamePlus-Crosshair GamePlus Crosshair Timer (Practice Mode) GamePlus main-Timer GamePlus main-Timer-Position Position • ECO Mode: Activate the ecology mode for power saving. • OSD Setup: Adjusts the OSD Timeout, DDC/CI, and Transparency of the OSD screen. • Language: Select OSD language. The selections are: English, French, German, Spanish, Italian, Dutch, , Russian, Poland, Czech, Croacia, Hungary, Romania, Portugal, Turkey, Simplified Chinese, Traditional Chinese, Japanese, Korean, Persian, Thai, Indonesian.
- Page 25 Brightness Shortcut 2 • Shortcut 1: User can select from “Blue Light Filter” “Splendid”, “Brightness”, “Auto Adjust(Only For VP247H)”, “Contrast”, “Color Temp.”, “Volume”, “GamePlus”, and set as shortcut key. The default setting is Brightness. • Shortcut 2: User can select from “Blue Light Filter” “Splendid”, “Brightness”, “Auto Adjust(Only For VP247H)”, “Contrast”, “Color...
-
Page 26: Specifications
3.2 Specifications Model VP247H VP247T Panel Size 24”W (60 cm) Max. Resolution 1920x1080 Brightness (Typ.) 250cd/m Intrinsic Contrast Ratio (Typ.) 1000:1 Viewing Angle (CR>10) 170°(V) /160°(H) Display Colors 16.7 M(6bit+FRC) Response Time 1ms (G To G ) Satellite Speaker 1.5W x 2 stereo... -
Page 27: Troubleshooting (Faq)
• Adjust the volume settings of both your monitor and computer. • Make sure the computer sound card driver is properly installed and activated. • Make sure the audio source is correct on the OSD. Supported Timing List ASUS LCD Monitor VP247 Series 3-11... - Page 28 PC Supported Primary Timing Resolution Refresh Rate Horizontal Frequency 640x480 60Hz 31.469kHz 640x480 72Hz 37.861kHz 640x480 75Hz 37.5kHz 800x600 56Hz 35.156kHz 800x600 60Hz 37.879kHz 800x600 72Hz 48.077kHz 800x600 75Hz 46.875kHz 1024x768 60Hz 48.363kHz 1024x768 70Hz 56.476kHz 1024x768 75Hz 60.023kHz 1152x864 75Hz 67.5kHz 1280x960...
- Page 29 59.94 / 60Hz 67.433 / 67.5kHz * The modes not listed in the above tables may not be supported. For optimal resolution, we recommend that you choose a mode listed in the above tables. ASUS LCD Monitor VP247 Series 3-13...
