Air Conditioner Product Manual

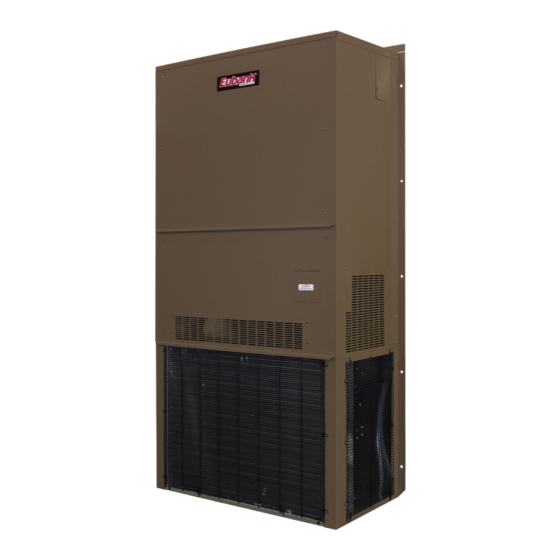

Vertical Wall-Mount Air Conditioners
with Front Control Box Panel
Installation & Operation Manual
11 EER Vertical Wall-Mount Air Conditioners
MODELS:
7AA1024A-7AA1060A (Single Stage)
7AA2036A7AA2060A (2-Stage)
IMPORTANT
This manual may include information for options and features which may not be
included on the unit being installed. Refer to the unit data label or Model Identification
to determine which features and options this unit is equipped with.
INSTALLER: Affix the instructions on the inside of the building adjacent to the thermostat.
END USER: Retain this manual for future reference.
Manufactured By:
A Division of the AIRXCEL
Commercial Group
®
P.O. Box 400 • Cordele, Georgia 31010 • 156 Seedling Drive • Cordele, Georgia 31015
(229) 273-3636 • Fax (229) 273-5154
E-mail: eubanksales@airxcel.com • Internet: www.EubankWallmount.com
The most current version of this manual can be found at www.EubankWallmount.com.
Eubank 7AA1024A-1060A & 8AA2036A-2060A I&O Manual 03/2021 Rev.2
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Eubank 7AA1024A
Summary of Contents for Eubank 7AA1024A
- Page 1 P.O. Box 400 • Cordele, Georgia 31010 • 156 Seedling Drive • Cordele, Georgia 31015 (229) 273-3636 • Fax (229) 273-5154 E-mail: eubanksales@airxcel.com • Internet: www.EubankWallmount.com The most current version of this manual can be found at www.EubankWallmount.com. Eubank 7AA1024A-1060A & 8AA2036A-2060A I&O Manual 03/2021 Rev.2...
- Page 2 How To Use This Manual This manual is intended to be a guide to the Eubank Wall Mount family of vertical air conditioners. It contains installation, troubleshooting, maintenance, warranty, and application information. The information contained in this manual is to be used by the installer as a guide only.
-
Page 3: Table Of Contents
INSTALLER: Affix the instructions on the inside of the building adjacent to the thermostat. END USER: Retain these instructions for future reference. Table of Contents Chapter 1 Eubank Wall Mount Air Conditioner Description & Specifications General Description ..........................5 Serial Number Date Code ........................5 Air Flow, Weights and Filter Sizes ......................5 Model Identification ..........................6... - Page 4 MODBUS Network Address DIP Swith Positions ..............25 Table 6a. MODBUS Discrete Registers ....................29 Table 6b. MODBUS Registers........................30 Table 7 Minimum Clearances .........................32 Table 8 Voltage Limitations ........................32 Table 9 Maximum Static Pressure ......................35 Eubank 7AA1024A-1060A & 8AA2036A-2060A I&O Manual 03/2021 Rev.2...
-
Page 5: General Description
All units have internal disconnects. Follow local codes for external disconnect requirements. Eubank wall mount air conditioners have a 0-15% manual outside air damper as standard equipment. All models are available with an optional factory installed economizer for 100% free cooling with outside air. -
Page 6: Model Identification
$ = Special Configuration Not Covered by + = None Model Nomenclature $ = Special Note: Not all options are available with all configurations. Contact your Eubank sales representative for configuration details and feature compatibility. Eubank 7AA1024A-1060A & 8AA2036A-2060A I&O Manual 03/2021 Rev.2... -
Page 7: General Operation
Table 4. Ambient Temperature Operating Range Refrigerant Cycle (Cooling Mode) Eubank air conditioners use R-410A refrigerant in a conventional vapor-compression refrigeration cycle to transfer heat from air in an enclosed space to the outside. A double blower assembly blows indoor air across the evaporator. -
Page 8: Optional Controls And Packages
The fan cycle control is standard on all Eubank air conditioners and operates based upon the liquid line pressure. The outside thermostat closes whenever the outside temperature is below 50°F (10°C) and opens when the outside temperature is 50°... - Page 9 20°F (-7°C) or minus 20°F (-29°C). Please refer to Hot Gas Bypass Application Bulletin for details. Electric Reheat Dehumidification A humidity controller allows electric heat and cooling to operate simultaneously. Eubank air conditioners ® equipped with the dehumidification option allow the indoor humidity of the controlled environment to be maintained at or below a certain humidity set point.
-
Page 10: Electrical Operation
(TXV), crankcase heater, hard start kit, and an outdoor thermostat and fan cycle switch. The fan cycle control is standard on all Eubank air conditioners and operates based upon the liquid line pressure. The outside thermostat opens whenever the outside temperature is below 50°F (10°C) and closes when the outside temperature is 50°F (10°C) -
Page 11: Figure 1A. Typical Electrical Schematic - Non-Economizer
TEST IBMSEL OFMSEL 0-10V 0-10V IBMSEL OFMSEL Figure 1a. Typical Electrical Schematic - Non-Economizer) Eubank 7AA1024A-1060A & 8AA2036A-2060A I&O Manual 03/2021 Rev.2... -
Page 12: Figure 1B. Typical Electrical Schematic - W/Economizer
TEST IBMSEL OFMSEL 0-10V 0-10V IBMSEL OFMSEL Figure 1b. Typical Electrical Schematic - w/Economizer Eubank 7AA1024A-1060A & 8AA2036A-2060A I&O Manual 03/2021 Rev.2... -
Page 13: Figure 1C. Typical Electrical Schematic - W/Economizer (Alternate Construction)
Figure 1c. Typical Electrical Schematic - w/Economizer (Alternate Construction) Eubank 7AA1024A-1060A & 8AA2036A-2060A I&O Manual 03/2021 Rev.2... -
Page 14: Figure 1D. Typical Electrical Schematic - W/Economizer (Alternate Construction)
Figure 1d. Typical Electrical Schematic - w/Economizer (Alternate Construction) Eubank 7AA1024A-1060A & 8AA2036A-2060A I&O Manual 03/2021 Rev.2... -
Page 15: Figure 1E. Typical Electrical Schematic - W/Economizer (Alternate Construction)
Figure 1e. Typical Electrical Schematic - w/Economizer (Alternate Construction) Eubank 7AA1024A-1060A & 8AA2036A-2060A I&O Manual 03/2021 Rev.2... -
Page 16: Economizer Components
The sensor has eight set points. The factory setting is 58°F (14.5°C). These set points can be changed by moving the dip switches on the top of the dry bulb sensor. See Fig. 2. Eubank 7AA1024A-1060A & 8AA2036A-2060A I&O Manual 03/2021 Rev.2... -
Page 17: Figure 2. Dry Bulb Sensor
NO outside air will be brought into the building. Setting the potentiometer to MAX means that the damper stays in the full OPEN position at all times. Factory setting is 50%. Eubank 7AA1024A-1060A & 8AA2036A-2060A I&O Manual 03/2021 Rev.2... -
Page 18: Figure 3. Enthalpy Sensor Temperature Control Points
Jumper W3 allows us to use alternative brands at a future date. On all current air conditioners, pins 1 & 2 are jumpered on W3. See item 4 in Figure 4. Figure 3. Enthalpy Sensor Temperature Control Points Marvair Economizer Controller Figure 4. Electrical Controls, 7AA Alternate Construction Eubank 7AA1024A-1060A & 8AA2036A-2060A I&O Manual 03/2021 Rev.2... -
Page 19: Figure 5. Economizer Control Board
9. Enthalpy Dip Switches (MAR) terminal Set points are same as previous Honeywell controller. Factory setting is 4 (63°F/17.2°) 1=A (73°F/23.8°C) 2=B (70°F/21.1°C) 3=C (67°F/19.4°C) 4=D (63°F/17.2°) Figure 5. Economizer Control Board Eubank 7AA1024A-1060A & 8AA2036A-2060A I&O Manual 03/2021 Rev.2... -
Page 20: Chapter 2 Electronic Control Board
Lockout contacts are also provided along with the alarms being transferred via MODBUS. This chapter provides the necessary information for installing and operating the Marvair PCB. The diagram below identifies the inputs, outputs and connections for the Marvair PCB. Eubank 7AA1024A-1060A & 8AA2036A-2060A I&O Manual 03/2021 Rev.2... -
Page 21: Installation And Replacement
Low pressure switch has opened twice Status 2 3 Blinks Freeze stat (optional) - Indoor coil temperature is below 35°F (1°C) Continuous Flash of Both LEDs Insufficient voltage to the board. Less than 20 Volts Eubank 7AA1024A-1060A & 8AA2036A-2060A I&O Manual 03/2021 Rev.2... -
Page 22: Figure 6A. Setting The Speed For The Y1 And Y2 Operation For Indoor Motor
Use the potentiometer marked “IBM SPEED” to set the required speed. Bridge Jumper Position For Setting Y2 Speed IBM SPEED Potentiometer Figure 6b. Second Stage Cooling Speed Eubank 7AA1024A-1060A & 8AA2036A-2060A I&O Manual 03/2021 Rev.2... -
Page 23: Figure 7. Output Termination For Indoor Motor Control Signal
Outdoor Motor PWM Signal Output. One Wire Connected to “GND” and the Other Connected to “PWM” Outdoor Motor 0-10V Signal Output. One Wire Connected to “GND” and the Other Connected to “0-10V” Figure 9. Output Termination for Outdoor Motor Control Signal Eubank 7AA1024A-1060A & 8AA2036A-2060A I&O Manual 03/2021 Rev.2... -
Page 24: Figure 10. Communications Setup
MODBUS Network Address DIP switches. See Addressing Table Baud Rate - 19200 BPS: Between Upper and Middle Pin Baud Rate - 9600 BPS: Between Lower and Middle Pin Figure 10. Communications SetUp Eubank 7AA1024A-1060A & 8AA2036A-2060A I&O Manual 03/2021 Rev.2... -
Page 25: Sequence Of Operation
5.1 High Pressure Lockout 5.2 Low Pressure Lockout 5.3 Low Voltage 5.4 Anti-short Cycle 6.0 Additional Features 6.1 MODBUS communication 6.2 Modulating Head Pressure Control 6.3 Freeze Stat Operation 6.4 Onboard Thermostat Eubank 7AA1024A-1060A & 8AA2036A-2060A I&O Manual 03/2021 Rev.2... - Page 26 “Y1” speed setting on the board or via MODBUS. It also outputs a request dependent (based on FCC IN) control signal for the Outdoor Fan Motor. In Stage 1 Cooling operation, the compressor Eubank 7AA1024A-1060A & 8AA2036A-2060A I&O Manual 03/2021 Rev.2...
- Page 27 “FCC IN” input is High. The board continues to produce these outputs until the Dehumidification request is dropped. Once this request is dropped, the Indoor Fan Motor continues to run for 90 seconds. Eubank 7AA1024A-1060A & 8AA2036A-2060A I&O Manual 03/2021 Rev.2...
- Page 28 The sequence of operation is the same as described above for the various operation, but Indoor Motor speeds for various operation, Outdoor Motor Speed, Heating Setpoint and Cooling Setpoint (if applicable) has to be configured via MODBUS. See MODBUS register tables at the end of this section. Eubank 7AA1024A-1060A & 8AA2036A-2060A I&O Manual 03/2021 Rev.2...
-
Page 29: Table 6A. Modbus Discrete Registers
0 = Off, 1 = Energized 0 = Modbus only Enables or disables reading the thermostat inputs in Modbus 1 Bit 1 = Read thermostat Inputs mode Default is 0 Table 6a. MODBUS Discrete Registers Eubank 7AA1024A-1060A & 8AA2036A-2060A I&O Manual 03/2021 Rev.2... -
Page 30: Table 6B. Modbus Registers
12 = Future Use 13 = Freeze Fault 1 14 = Freeze Fault 2 15 = Y1 Locked Out 16 = Y2 Locked Out 17 = Low Voltage Table 6b. MODBUS Registers Eubank 7AA1024A-1060A & 8AA2036A-2060A I&O Manual 03/2021 Rev.2... -
Page 31: Chapter 3 Installation
National Fire ® Protection Association Standards 90A and 90B before designing and installing duct work. The duct system must be engineered to insure sufficient air flow through the unit to prevent over-heating of Eubank 7AA1024A-1060A & 8AA2036A-2060A I&O Manual 03/2021 Rev.2... -
Page 32: Table 7 Minimum Clearances
Electrical Rating Designations* Nominal Voltage 208/230 208/230 Phase Minimum Voltage Maximum Voltage * Letters refer to model number code designations. Refer to page 5. Table 8. Voltage Limitations Eubank 7AA1024A-1060A & 8AA2036A-2060A I&O Manual 03/2021 Rev.2... -
Page 33: Installation Materials
Installation Materials Installation Kits Eubank air conditioners are shipped with one 12 Ga. "L" shaped bottom bracket. If you have not yet unpacked the unit, follow the instructions in section 2.1. All units have built-in full length mounting flanges. Therefore, use of mounting brackets is not required. -
Page 34: Porting And Duct Work
Attach the perimeter flange of the wall sleeve to the framed opening with appropriately sized screws. Since electric heat can be added after the unit has been installed, Eubank recommends that all installations have the 1” (25.4 mm) clearance around the wall sleeve. -
Page 35: Fresh Air Hood Installation
(no fresh air). To provide fresh air, remove the two screws on either side of the hood and reposition as desired. Figure 11. Fresh Air Hood Damper, Models 24-72 Eubank 7AA1024A-1060A & 8AA2036A-2060A I&O Manual 03/2021 Rev.2... -
Page 36: Bracket Installation
For units with electric heat, a one inch clearance is required around the duct extensions. The duct extensions must be constructed of galvanized steel with a minimum thickness of .019” as per the NFPA standards 90A & 90B. Figure 12. Eubank A/C Wall Mount Detail Eubank 7AA1024A-1060A & 8AA2036A-2060A I&O Manual 03/2021 Rev.2... -
Page 37: Electrical Connections
Note: Power supply service must be within allowable range (+10% - 5%) of rated voltage stamped on the unit rating plate. To operate nominal 230/208V unit at 208V, change the transformer line tap from 240V to 208V following the instruction on wiring label in unit. Eubank 7AA1024A-1060A & 8AA2036A-2060A I&O Manual 03/2021 Rev.2... - Page 38 Continuous fan operation: For continuous indoor fan operation on single units, install a jumper between terminals 8 and 3. For continuous indoor fan operation on dual units using the older LL357D4, install jumper between 8 and 3 and remove jumper between 1 and 3. Eubank 7AA1024A-1060A & 8AA2036A-2060A I&O Manual 03/2021 Rev.2...
-
Page 39: Figure 13A. Humidistat Wiring Details
If desired, each of the set points can be quickly and easily changed in the field by the installer. It can be used with Eubank's unique vertical packaged wall mount air conditioners or other environmental control units. See CommStat 3 Product Data Sheet for installation and programming instructions. -
Page 40: Figure 13D. Commstat™ 3 Hvac Controller Wiring Detail
Figure 13c. CommStat 3 Wiring Diagram Eubank 7AA1024A-1060A & 8AA2036A-2060A I&O Manual 03/2021 Rev.2... -
Page 41: Chapter 4 Start-Up
Important: Be sure that the crankcase heater (if used) has been energized for at least 24 hours before starting the unit(s). Double-check all electrical connections before applying power. Eubank air conditioners with scroll compressors running on 3Ø power must be checked for proper rotation during the initial start-up. -
Page 42: Chapter 5 Troubleshooting
Please read the Chapter 1 for basic information about the unit. Eubank air conditioners are thoroughly tested before they are shipped from the factory. Although unlikely, it is possible that a defect may escape undetected, or damage may have occurred during transportation. -
Page 43: Compressor Troubleshooting
NOTE: Feel the top of the compressor to see if it has overheated. If it is hot, the internal overload may be open. You may have to wait several hours for it to reset. Eubank 7AA1024A-1060A & 8AA2036A-2060A I&O Manual 03/2021 Rev.2... -
Page 44: Control Board Diagnosis
The unit must be in the cooling mode (compressor contactor Closed) before a fault condition can occur. Eubank 7AA1024A-1060A & 8AA2036A-2060A I&O Manual 03/2021 Rev.2... -
Page 45: Chapter 6 Maintenance
Oiling of the condenser fan motor or the evaporator blower motor is not recommended. DANGER Sever hazard. The economizer contains moving parts capable of causing serious injury or death. Disconnect power before removing the covering panel. Eubank 7AA1024A-1060A & 8AA2036A-2060A I&O Manual 03/2021 Rev.2... -
Page 46: Chapter 7 Warranty
Marvair, ICE, Eubank Products 90 Days w/Flat Rate Labor (See Marvair, ICE, Eubank Flat Rate Labor Guidelines) 1 Year Parts 5 Years Compressor If any part of your Marvair, Inc. unit fails within 90 days of the commencement of the warranty, Marvair, Inc. will furnish without charge, EX Works, Cordele, Georgia, the required replacement part and pay for the labor to replace the part in accordance with the Marvair, Inc. -
Page 47: Chapter 8 Start-Up Checklist
Has water been placed in drain pan to confirm proper drainage? ❒Yes ❒No Are correct filters in place? ❒Yes ❒No Refrigerant Piping If leaks are found, report any leaks to Marvair Warranty Service Dept. Eubank 7AA1024A-1060A & 8AA2036A-2060A I&O Manual 03/2021 Rev.2... - Page 48 L1 & L3 = 243 Volts = 717 / 3 = 239 Average Voltage L2 & L3 = 233 Volts 239 - 233 = 6 100 x 6/239 =2.5% Voltage Unbalance Three phase units only check fan & compressor rotation. Eubank 7AA1024A-1060A & 8AA2036A-2060A I&O Manual 03/2021 Rev.2...
- Page 49 Measured Line to Line Volts L1&L2_______V. L1&L3 ________V. L2&L3______V. (L1&L2 + L1&L3 + L2&L3)/3 = Avg. Voltage = _______________ Max. Deviation from avg. voltage = ______________volts Voltage imbalance = (100 x Max. Deviation)/avg. Voltage = ___________% Eubank 7AA1024A-1060A & 8AA2036A-2060A I&O Manual 03/2021 Rev.2...
- Page 50 Evap. Leaving Air WB Temp ________ ________ Compressor Amps (L1) ________ ________ Compressor Amps (L2) ________ ________ Compressor Amps (L3) ________ ________ Notes: _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ Eubank 7AA1024A-1060A & 8AA2036A-2060A I&O Manual 03/2021 Rev.2...
-
Page 51: Installation Instructions For Field Installed Electric Heaters
(25.4 mm) clearance must extend on all sides of the supply duct for the first 3 feet (1 meter) from the unit. IMPORTANT: Eubank requires a minimum of 1" (25.4 mm) from the surface of any supply ducts to combustible material for the first 3 feet (1 meter) of the duct. - Page 52 15. Place the wiring diagram provided with the heater kit inside the zip lock bag which is affixed to the back side of the control box cover. 16. Replace the control box cover, the bottom front cover and the top front panel. Eubank 7AA1024A-1060A & 8AA2036A-2060A I&O Manual 03/2021 Rev.2...
- Page 53 Eubank 7AA1024A-1060A & 8AA2036A-2060A I&O Manual 03/2021 Rev.2...
