Eubank EAA1020A Product Manual

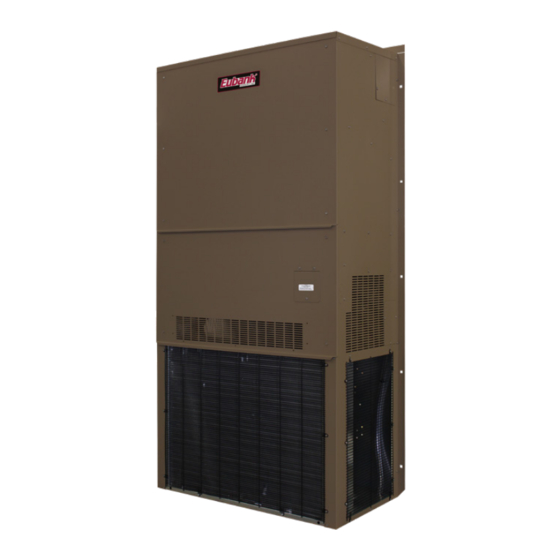

Vertical wall-mount air conditioners with front control box panel
Hide thumbs Also See for EAA1020A:
Table of Contents

Advertisement

Quick Links

Download this manual
Installation & Operation Manual
11 EER Vertical Wall-Mount Air Conditioners
EAA1020A-EAA1060A
This manual may include information for options and features which may not be
included on the unit being installed. Refer to the unit data label or Model Identification
to determine which features and options this unit is equipped with.
INSTALLER: Affix the instructions on the inside of the building adjacent to the thermostat.
END USER: Retain this manual for future reference.
P.O. Box 400 • Cordele, Georgia 31010 • 156 Seedling Drive • Cordele, Georgia 31015
E-mail: eubanksales@airxcs.com • Internet: www.EubankWallMount.com
The most current version of this manual can be found at www.EubankWallMount.com.
MODELS:
EGA1072A
IMPORTANT
Manufactured By:
Eubank, An AirX Climate Solutions Brand
(229) 273-3636 • Fax (229) 273-5154
Air Conditioner Product Manual
Vertical Wall-Mount Air Conditioners
with Front Control Box Panel
Eubank EAA/EGA Wall Mount AC Installation & Operation Manual
05/2023 Rev.8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EAA1020A and is the answer not in the manual?

Questions and answers

Related Manuals for Eubank EAA1020A

Summary of Contents for Eubank EAA1020A

  • Page 1 P.O. Box 400 • Cordele, Georgia 31010 • 156 Seedling Drive • Cordele, Georgia 31015 (229) 273-3636 • Fax (229) 273-5154 E-mail: eubanksales@airxcs.com • Internet: www.EubankWallMount.com The most current version of this manual can be found at www.EubankWallMount.com. Eubank EAA/EGA Wall Mount AC Installation & Operation Manual 05/2023 Rev.8...
  • Page 2 How To Use This Manual This manual is intended to be a guide to the Eubank Wall Mount family of vertical air conditioners. It contains installation, troubleshooting, maintenance, warranty, and application information. The information contained in this manual is to be used by the installer as a guide only.

  • Page 3: Table Of Contents

    INSTALLER: Affix the instructions on the inside of the building adjacent to the thermostat. END USER: Retain these instructions for future reference. Table of Contents Chapter 1 Eubank Wall Mount Air Conditioner Description & Specifications General Description ..........................5 Model Identification ..........................6 Serial Number Date Code ........................6 Air Flow, Weights and Filter Sizes ......................7...
  • Page 4 Shipping Weights .........................7 Table 4 Ambient Temperature Operating Range ..................7 Table 5 Refrigerant Charge ........................7 Table 6 Minimum Clearances .........................34 Table 7 Voltage Limitations ........................34 Table 8 Maximum Static Pressure ......................37 Eubank EAA/EGA Wall Mount AC Installation & Operation Manual 05/2023 Rev.8...

  • Page 5: General Description

    EAA modes are available with cooling capacities of 20,000 to 60,000 BTUH and EER’s of 11.00 to 11.50. EGA models have 72,000 BTUH (6 ton) capacity and are 10 EER. The Eubank Product Data Sheets have detailed information on the capacities and efficiencies for each model.

  • Page 6: Model Identification

    2 = Low Ambient w/FCC & EFS 3 = CCH w/Hot Gas Bypass + = None Note: Not all options are available with all configurations. Contact your Eubank sales representative for configuration details and feature compatibility. Serial Number Date Code...

  • Page 7: Air Flow, Weights And Filter Sizes

    Air Flow, Weights and Filter Sizes Complete electrical and performance specifications and dimensional drawings are in the Eubank Wall Mount Air Conditioner Product Data Sheets. Note: Follow local codes and standards when designing duct runs to deliver the required airflow.

  • Page 8: Optional Controls And Packages

    Refrigerant Cycle (Cooling Mode) Eubank air conditioners use R-410A refrigerant in a conventional vapor-compression refrigeration cycle to transfer heat from air in an enclosed space to the outside. A double blower assembly blows indoor air across the evaporator. Cold liquid refrigerant passing through the evaporator is boiled into gas by heat removed from the air.
  • Page 9 20°F (-7°C) or minus 20°F (-29°C). Please refer to Hot Gas Bypass Application Bulletin for details. Electric Reheat Dehumidification A humidity controller allows electric heat and cooling to operate simultaneously. Eubank air conditioners ® equipped with the dehumidification option allow the indoor humidity of the controlled environment to be maintained at or below a certain humidity set point.

  • Page 10: Electrical Operation

    (TXV), crankcase heater, hard start kit, and an outdoor thermostat and fan cycle switch. The fan cycle control is standard on all Eubank air conditioners and operates based upon the liquid line pressure. The outside thermostat opens whenever the outside temperature is below 50°F (10°C) and closes when the outside temperature is 50°F (10°C)

  • Page 11: Figure 1A. Typical Electrical Schematic - Model Eaa

    Figure 1a. Typical Electrical Schematic - (Non-Economizer) Model EAA Eubank EAA/EGA Wall Mount AC Installation & Operation Manual 05/2023 Rev.8...

  • Page 12: Figure 1B. Typical Electrical Schematic - Model Eaa

    Figure 1b. Typical Electrical Schematic - (Economizer) Model EAA Eubank EAA/EGA Wall Mount AC Installation & Operation Manual 05/2023 Rev.8...

  • Page 13: Figure 1C. Typical Electrical Schematic - Model Eaa (Alternate Construction)

    Figure 1c. Typical Electrical Schematic - (Economizer) Model EAA (Alternate Construction) Eubank EAA/EGA Wall Mount AC Installation & Operation Manual 05/2023 Rev.8...

  • Page 14: Figure 1D. Typical Electrical Schematic - Model Eaa (Alternate Construction)

    Figure 1d. Typical Electrical Schematic - (Economizer) Model EAA (Alternate Construction) Eubank EAA/EGA Wall Mount AC Installation & Operation Manual 05/2023 Rev.8...

  • Page 15: Figure 1E. Typical Electrical Schematic - Model Ega (Alternate Construction)

    Figure 1e. Typical Electrical Schematic - (Economizer), Model EGA (Alternate Construction) Eubank EAA/EGA Wall Mount AC Installation & Operation Manual 05/2023 Rev.8...

  • Page 16: Chapter 2 Electronic Control Board

    Lockout contacts are also provided along with the alarms being transferred via Modbus. This chapter provides the necessary information for installing and operating the Eubank PCB. The diagram below identifies the inputs, outputs and connections for the Eubank PCB. See I/O table. Eubank EAA/EGA Wall Mount AC Installation & Operation Manual...

  • Page 17: Installation And Replacement

    Low Pressure Lockout Compressor Circuit 2 HP-1 High Pressure Lockout Compressor Circuit 1 HP-2 High Pressure Lockout Compressor Circuit 2 Low Voltage "Brownout" 16VAC or Less for 10 Minutes Eubank EAA/EGA Wall Mount AC Installation & Operation Manual 05/2023 Rev.8...
  • Page 18 Available Baud Rates 9.6 = 9600, 19 = 19200 Modbus timeout 21916 Communications Timeout in minutes Test Y, n When set to “Y” all timers are reduced for testing SW version number Displays the current version software Eubank EAA/EGA Wall Mount AC Installation & Operation Manual 05/2023 Rev.8...
  • Page 19 The selections for the SCKT Set are Y (yes) or N (no). When set to N (no, Default) the electric heat will be allowed to operate with the compressor in heat-pump mode upon a call Eubank EAA/EGA Wall Mount AC Installation & Operation Manual 05/2023 Rev.8...
  • Page 20 17. Dehum Speed: This is an independent setting for the speed at which the Indoor blower will operate upon a request for HUM (Dehumidification) via Digital Input or Modbus. The default setting for Eubank EAA/EGA Wall Mount AC Installation & Operation Manual 05/2023 Rev.8...

  • Page 21: Operation

    Operation Power The Eubank PCB requires 24 VAC to operate. When the board is sufficiently powered, the “PWR” status light on the PCB illuminates “Green.” When the power supply voltage is 16vac or less for 10 seconds the control board will de-energize all outputs. This is considered a voltage brownout (low voltage) condition and the display of the control board will show “03”...
  • Page 22 2. Normal Operating Mode describes a mode in which there are no active faults which would interrupt the operation of the system. Eubank EAA/EGA Wall Mount AC Installation & Operation Manual 05/2023 Rev.8...
  • Page 23 CC1 (Partial Capacity) Stage 2 Cooling (2 Fixed Compres-sors) Y1 + Y2 CC1 + CC2 (Full Capacity) Stage 2 Cooling (2 Staged Compres-sors) Y1 + Y2 CC1 + CC2 (Full Capacity) Eubank EAA/EGA Wall Mount AC Installation & Operation Manual 05/2023 Rev.8...
  • Page 24 “Stage1 Cooling” Y1 + O signal via Digital input or Modbus), energizes the Reversing Valve Output (RV) and Compressor 1 Relay Output (CC1) on the PCB. The controller provides a continuous control signal associated to the Indoor Fan Motor, that is proportional Eubank EAA/EGA Wall Mount AC Installation & Operation Manual 05/2023 Rev.8...
  • Page 25 Note: Selecting N=No in configuration setting 12 will disable economizer operation. DANGER Sever hazard. The economizer contains moving parts capable of causing serious injury or death. Disconnect power before removing the covering panel. Eubank EAA/EGA Wall Mount AC Installation & Operation Manual 05/2023 Rev.8...

  • Page 26: Figure 2. Enthalpy Sensor Temperature Control Points

    63°F. This setpoint can be adjusted in 1F increments from 20F to 105F in the control board configuration menu setting 14. Example of the dry bulb sensor is shown below. Note: Selecting N=No in configuration setting 12 will disable economizer operation. Eubank EAA/EGA Wall Mount AC Installation & Operation Manual 05/2023 Rev.8...

  • Page 27: Figure 3. Dry Bulb Sensor

    (no staging). The Heater will remain on until the Heating setpoint is satisfied and the request is dropped. Once the heating setpoint is satisfied, the Indoor motor continues to run based Eubank EAA/EGA Wall Mount AC Installation & Operation Manual 05/2023 Rev.8...
  • Page 28 Once the Heater output is energized, the Heater comes on at full capacity (no staging). The Heater will remain on until the Heating setpoint is satisfied and the request is dropped. Once Eubank EAA/EGA Wall Mount AC Installation & Operation Manual 05/2023 Rev.8...
  • Page 29 When the liquid line temperature is below 80F the outdoor fan will shut off. A liquid line temperature above 115F will force the outdoor fan to operate at the maximum speed Eubank EAA/EGA Wall Mount AC Installation & Operation Manual 05/2023 Rev.8...
  • Page 30 6.2 Low Pressure Lockout / Freeze Protection – A10K Nominal NTC Thermistor is connected to the “LPS 1” and “LPS2” inputs of the control board for circuit 1 and circuit 2 respectively. Eubank EAA/EGA Wall Mount AC Installation & Operation Manual 05/2023 Rev.8...
  • Page 31 “Emergency Ventilation” (EV-signal via Digital input or Modbus), the system will run the Indoor Motor at the “Y2” speed setting on the board or via Modbus and provide a Eubank EAA/EGA Wall Mount AC Installation & Operation Manual 05/2023 Rev.8...
  • Page 32 8.0 Smoke / Fire Shutdown 8.1 System Shutdown Contact Wiring – Add Normally Closed Dry contacts as shown for immediate shutdown of HVAC upon contacts opening. Eubank EAA/EGA Wall Mount AC Installation & Operation Manual 05/2023 Rev.8...

  • Page 33: Chapter 3 Installation

    Protection Association Standards 90A and 90B before designing and installing duct work. The duct system must be engineered to insure sufficient air flow through the unit to prevent over-heating of Eubank EAA/EGA Wall Mount AC Installation & Operation Manual 05/2023 Rev.8...

  • Page 34: Table 6 Minimum Clearances

    Electrical Rating Designations* Nominal Voltage 208/230 208/230 Phase Minimum Voltage Maximum Voltage * Letters refer to model number code designations. Refer to page 5. Table 7. Voltage Limitations Eubank EAA/EGA Wall Mount AC Installation & Operation Manual 05/2023 Rev.8...

  • Page 35: Installation Materials

    Installation Materials Installation Kits Eubank air conditioners are shipped with one 12 Ga. "L" shaped bottom bracket. If you have not yet unpacked the unit, follow the instructions in section 2.1. All units have built-in full length mounting flanges. Therefore, use of mounting brackets is not required.

  • Page 36: Porting And Duct Work

    Attach the perimeter flange of the wall sleeve to the framed opening with appropriately sized screws. Since electric heat can be added after the unit has been installed, Eubank recommends that all installations have the 1” (25.4 mm) clearance around the wall sleeve.

  • Page 37: Fresh Air Hood Installation

    (no fresh air). To provide fresh air, remove the two screws on either side of the hood and reposition as desired. Figure 4. Fresh Air Hood Damper, Models 1024-1072 Eubank EAA/EGA Wall Mount AC Installation & Operation Manual 05/2023 Rev.8...

  • Page 38: Bracket Installation

    For units with electric heat, a one inch clearance is required around the duct extensions. The duct extensions must be constructed of galvanized steel with a minimum thickness of .019” as per the NFPA standards 90A & 90B. Figure 5. Eubank A/C Wall Mount Detail Eubank EAA/EGA Wall Mount AC Installation & Operation Manual 05/2023 Rev.8...

  • Page 39: Electrical Connections

    To operate nominal 230/208V unit at 208V, change the transformer line tap from 240V to 208V following the instruction on wiring label in unit. Eubank EAA/EGA Wall Mount AC Installation & Operation Manual 05/2023 Rev.8...
  • Page 40 Remote Signalling: Terminals 5 & 7(N.O.) and 6 & 7 (N.C.) on the terminal board are dry contacts which can be used for remote signalling in the event of a/c cutoff on low or high pressure limit. Eubank EAA/EGA Wall Mount AC Installation & Operation Manual 05/2023 Rev.8...

  • Page 41: Figure 6A. Humidistat Wiring Details

    Please refer to the Product Data sheet for the Commstat 4 controller for complete instructions on installing and programming this controller. Figure 6a. Humidistat Wiring to a Eubank Air Conditioner with Reheat. Figure 6b. Thermostat Connection Diagram Eubank EAA/EGA Wall Mount AC Installation & Operation Manual...

  • Page 42: Figure 6C. Commstat™ 3 Hvac Controller Wiring Detail

    . t l A " " 1 A " " 2 n i l n i l n i l Figure 6c. CommStat 4 Wiring Diagram Eubank EAA/EGA Wall Mount AC Installation & Operation Manual 05/2023 Rev.8...

  • Page 43: Chapter 4 Start-Up

    Important: Be sure that the crankcase heater (if used) has been energized for at least 24 hours before starting the unit(s). Double-check all electrical connections before applying power. Eubank air conditioners with scroll compressors running on 3Ø power must be checked for proper rotation during the initial start-up.

  • Page 44: Chapter 5 Troubleshooting

    Please read the Chapter 1 for basic information about the unit. Eubank air conditioners are thoroughly tested before they are shipped from the factory. Although unlikely, it is possible that a defect may escape undetected, or damage may have occurred during transportation.

  • Page 45: Failure Symptoms Guide

    3. Check relay for proper operation. Replace if defective. Compressor Troubleshooting NOTE: It is important to rule out other component failures before condemning the compressor. The following electrical tests will aid diagnosis: Eubank EAA/EGA Wall Mount AC Installation & Operation Manual 05/2023 Rev.8...

  • Page 46: Control Board Diagnosis

    The unit must be in the cooling mode (compressor contactor Closed) before a fault condition can occur. Eubank EAA/EGA Wall Mount AC Installation & Operation Manual 05/2023 Rev.8...

  • Page 47: Chapter 6 Maintenance

    Chapter 6 Maintenance Scheduled Maintenance Eubank strongly recommends that the air conditioner be serviced a minimum of twice a year – once prior to the heating season and once prior to the cooling season. At this time the filters, evaporator coil, condenser coil, the cabinet, and condensate drains should be serviced as described below.

  • Page 48: Chapter 7 Warranty

    THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE-TO- STATE. Some states do not allow limitations or exclusions, so the above limitations and exclusions may not apply to you. Eubank EAA/EGA Wall Mount AC Installation & Operation Manual 05/2023 Rev.8...

  • Page 49: Chapter 8 Start-Up Checklist

    Chapter 8 Start-Up Check List Start-Up & Commissioning Form Please complete the information on this form and return to Eubank by mail or fax. The mailing address and fax number can be found at the end of the form. A. Equipment Information...
  • Page 50 L1 & L3 = 243 Volts = 717 / 3 = 239 Average Voltage L2 & L3 = 233 Volts 239 - 233 = 6 100 x 6/239 =2.5% Voltage Unbalance Three phase units only check fan & compressor rotation. Eubank EAA/EGA Wall Mount AC Installation & Operation Manual 05/2023 Rev.8...
  • Page 51 L1&L3 ________V. L2&L3______V. (L1&L2 + L1&L3 + L2&L3)/3 = Avg. Voltage = _______________ Max. Deviation from avg. voltage = ______________volts Voltage imbalance = (100 x Max. Deviation)/avg. Voltage = ___________% Eubank EAA/EGA Wall Mount AC Installation & Operation Manual 05/2023 Rev.8...
  • Page 52 ________ Compressor Amps (L1) ________ ________ Compressor Amps (L2) ________ ________ Compressor Amps (L3) ________ ________ Notes: _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ Eubank EAA/EGA Wall Mount AC Installation & Operation Manual 05/2023 Rev.8...

  • Page 53: Installation Instructions For Field Installed Electric Heaters

    (25.4 mm) clearance must extend on all sides of the supply duct for the first 3 feet (1 meter) from the unit. IMPORTANT: Eubank requires a minimum of 1" (25.4 mm) from the surface of any supply ducts to combustible material for the first 3 feet (1 meter) of the duct.
  • Page 54 15. Place the wiring diagram provided with the heater kit inside the zip lock bag which is affixed to the back side of the control box cover. 16. Replace the control box cover, the bottom front cover and the top front panel. Eubank EAA/EGA Wall Mount AC Installation & Operation Manual 05/2023 Rev.8...
  • Page 55 Eubank EAA/EGA Wall Mount AC Installation & Operation Manual 05/2023 Rev.8...
