- Page 1 TR1403 6v MOTORBIKE SERVICE GUIDE...
- Page 2 Please follow the directions in the attached service guide to check the connections on your ride on. Most times it is a loose plug or switch that causes electric ride’s to stop working. Keep in mind the ride will not operate if the power adaptor/charger cable is plugged into the ride, this is a safety feature to ensure a child does not take off while it’s plugged in and damage it.

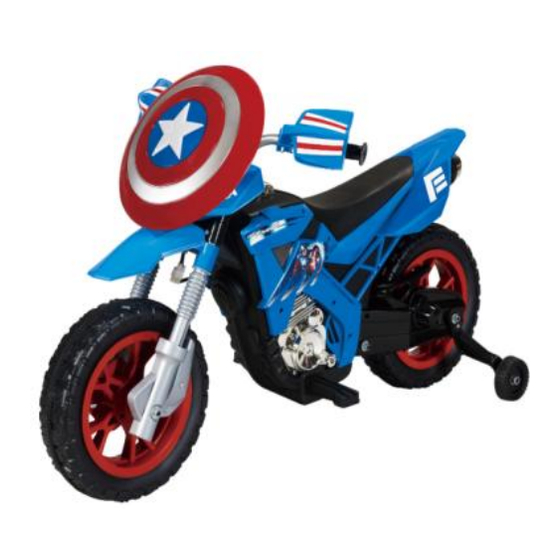

- Page 3 Item #: 2499 MODEL:TR1403 description :Captain America Bike with shield 、 step1 step2 step3 step8 1.per above steps pls check if the power switch is conntected like image shown step4 step5...
- Page 4 step1 step2 step3 2.per above steps to open the battery compartment...
- Page 5 step1 step2 step3 step4 step5 step6 step7 step8 3. turn over the vehicle ,then unlock the screws to check if the plug is conntected step3 step4...
- Page 6 step1 step2 step3 4.Per the above step ,then check the auto-set fuse connection...
- Page 7 step1 step2 step3 step4 step5 step6 step7 5.per steps to unlock the screw before checking the gear box...
- Page 8 step1 step2 step3 step4 6.replace the gear box a.Per the above step ,unlock the 4pcs screws b.disconnect the plug of the battery and gear box c.disconnect the battery wire.the disassemble the driving wheel and rear wheel ,then pull out the rear axle d.unlock the screws of the grey plastic box ,then open it to get the gear box...
- Page 9 MOTOR PLUG – PIN TROUBLESHOOT No. Pin pushed to side. Yes. Pin is central. When plugged together the pin is not connecting with other plug.
