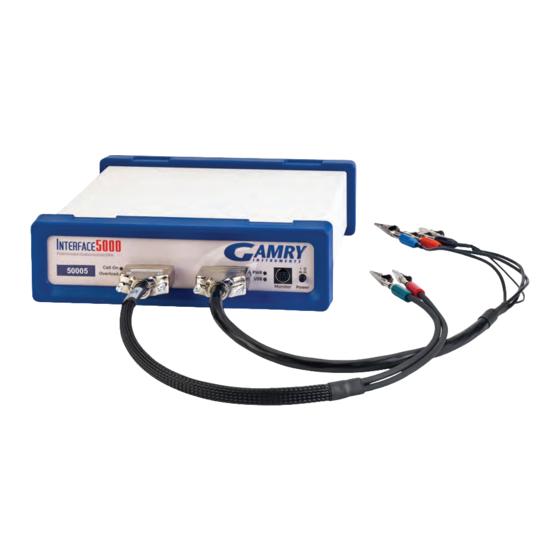

Gamry Interface 5000 Calibration Cell Instructions

Installing standard cable on reference 600+

Hide thumbs Also See for Interface 5000 Calibration Cell:

Instructions for installing Standard Cable

on Reference 600+

Hardware Deliverables



Calibration Cell (Interface 5000 Calibration Cell/200 Ohm)



60cm Standard Cell Cable (PN 985-00071)



IE Correction file (REF600P_CID14.IECOR)

Install the Gamry software as described in the normal documentation. Copy the REF600P_CID14.IECOR

to the following location: C:\ProgramData\Gamry Instruments\Framework\IE Corrections. This folder

may be hidden on some computer, but pasting the above italicized name into Explorer should make it

visible. Please note that for international versions of Windows, the ProgramData folder may be named

slightly different.

Connect the 25 pin male end of the 60cm cell cable to the 25 pin female connector on the front of the

Reference 600+. Connect the cell leads of the 60cm cable to the Calibration cell as shown in Figure 1.

Figure 1: Calibration cell showing proper connections.

Table of Contents

Do you have a question about the Interface 5000 Calibration Cell and is the answer not in the manual?

Page 1 IE Correction file (REF600P_CID14.IECOR) Software Setup Install the Gamry software as described in the normal documentation. Copy the REF600P_CID14.IECOR to the following location: C:\ProgramData\Gamry Instruments\Framework\IE Corrections. This folder may be hidden on some computer, but pasting the above italicized name into Explorer should make it visible.
Page 2 Once the calibration cell is properly connected inside the grounded calibration shield, you may run calibration as normal. Start the Gamry Framework software and select the Experiment menu, then select the Utilities sub-menu, and finally click on Calibration. Once the calibration dialog box is shown, you will simply select the instrument and select Both as the calibration type as shown in Figure 3.
