UROVO SR5600 Simple Operation Manual

SR5600,SR5660,SR5680,SR70
Bluetooth Scanner Simple
Operation Guide
3.01.200.XXXXXX

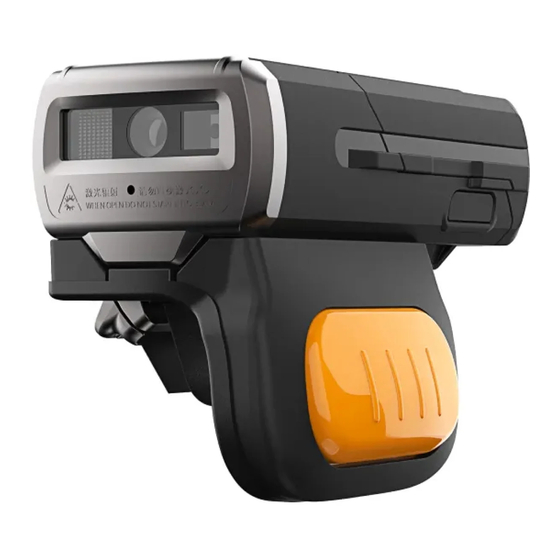

Device Appearance and Commonly Used Buttons
Battery
Scanning head
Battery buckle
Host code
scanning button
NFC
Indicator light
Cord buckle
Tape buckle
Finger tape
Comfort
cushion
Ring buckle
Direct charger
POGO PIN
Packing List
Device x 1 Battery x1 Charger x1 Data cable x 1
Direct charger x 1
Simple Operation Guide&Warranty Instructions&
Certificate of Conformity x 1
Unpacking Instructions
Battery installation instructions
Align the battery with the top of the SR5600 and insert it into the battery
compartment. Slide the battery all the way into the SR5600 locking slot
to ensure that the battery matches with SR5600.
Battery lock catch
POGO PIN
Power button
Ring code scanning button
Ring installation instructions
Align one end of the SR5600 lock catch and push the other end down
until it clicks into place. The ring can be installed as required. The
following figure 1 is for the right finger, and figure 2 is for the left finger.
Press the sliding buckle to remove the ring.
Sliding buckle
Type-C
Figure1
Direct charger installation instructions
Insert the bottom of the SR5600 into the direct charger until it clips into
place. Connect the Type-C interface at the end of the direct charger
with the data cable and charger. Normal charging starts when the
indicator light indicates that the red light is always on.
（Direct charger）
Product Instructions
I. Press and hold the power button and then release it. After booting,
SR5600 Bluetooth scanner (hereinafter referred to as SR5600)
automatically enters the Bluetooth Standby Pairing mode, and the
blue light keeps flashing;
II. Connect the SR5600 with the main device Bluetooth, there are
three connection methods as follows:
1. Search for the corresponding Bluetooth name SR5600-XXXX
(representing the last four digits of the Bluetooth Mac address) from
the Bluetooth list of the main device.
2. Connect via SR5600 NFC touch (press the NFC switch of the main
device, contact the main device with the SR5600 NFC, and follow the
steps prompted by the main device to successfully set up);
3. Connect by scanning the setting code (as described in Product
Instructions IV).
III. After successful connection, the blue light is always on,the buzzer
buzz twice, and the device starts working;
IV. To change the code system and other settings, download the
setting code APK or WeChat setting code applet from the official
account of "UROVO". After installation, set according to actual
requirements and the QR code will be generated. Scan the QR code
with SR5600, and the buzzer buzz twice, which indicates successful
setting.
Instructions for Status Light
Status light
Red indicator light is always on
Figure2 Red indicator light flashes once
Green indicator light flashes once
Green indicator light is always on
Blue indicator light keeps flashing
Blue indicator light is always on
Type-C
Description
Scanning code or charging
Setup failure
Scan code successfully
Battery fully charged
Bluetooth enters pairing mode
the Bluetooth is connected successfully
