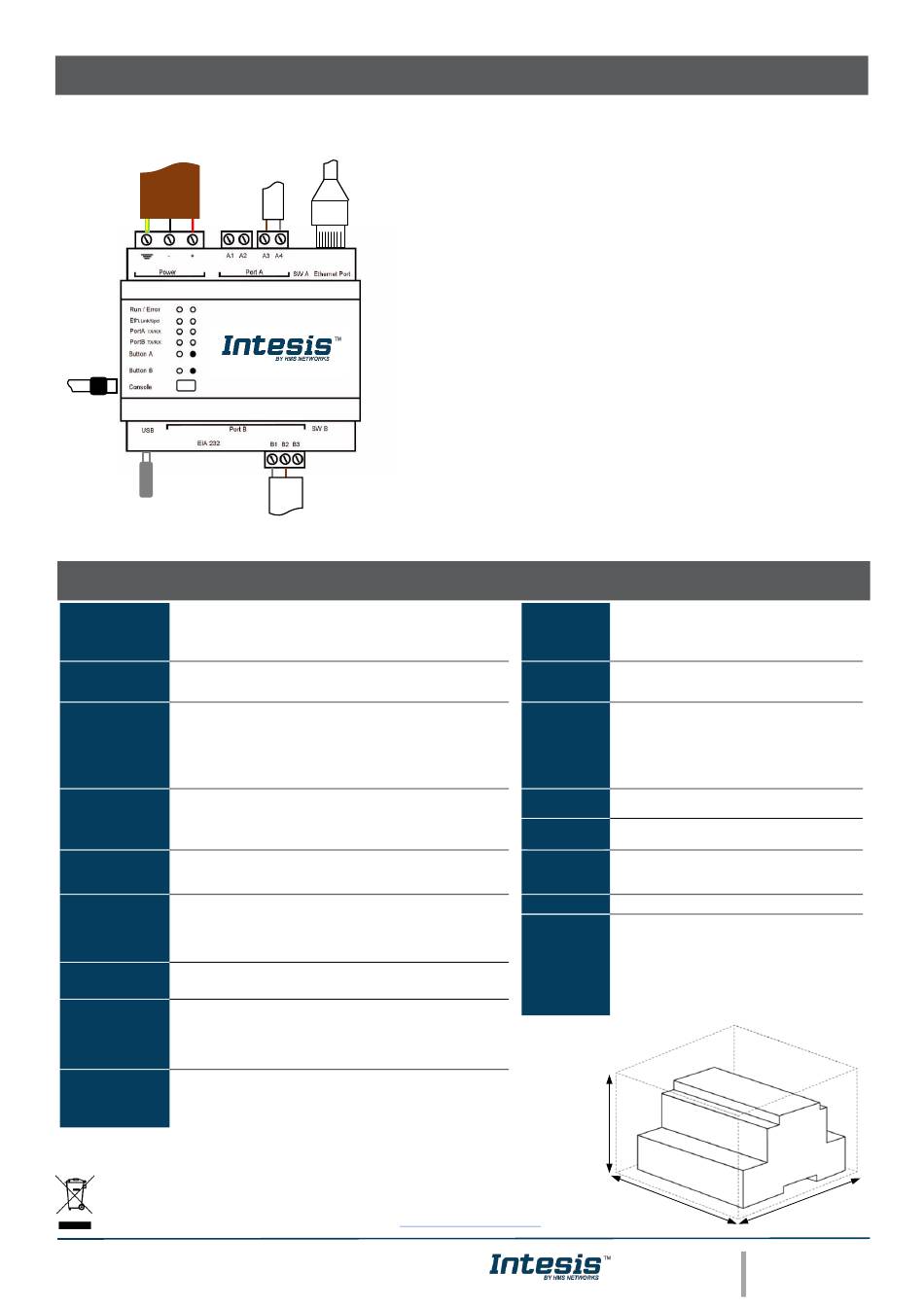

CONNECTIONS
Power Supply
Console
Port
USB
storage
ELECTRICAL & MECHANICAL FEATURES
Plastic, type PC (UL 94 V-0)
Net dimensions (d
Enclosure
Recommended space for installation (d
Color: Light Grey. RAL 7035
Wall.
Mounting
DIN rail EN60715 TH35.
Per terminal: solid wires or stranded wires (twisted or with
ferrule)
Terminal Wiring
1 core: 0.5mm
(for power supply and
2 cores: 0.5mm
low-voltage signals)
3 cores: not permitted
If cables are more than 3.05 meters long, Class 2 cable is required.
1 x Plug-in screw terminal block (3 poles)
9 to 36VDC +/-10%, Max.: 140mA.
Power
24VAC +/-10% 50-60Hz, Max.: 127mA
Recommended: 24VDC
1 x Ethernet 10/100 Mbps RJ45
Ethernet
2 x Ethernet LED: port link and activity
1 x P-Link 1 Plug-in screw terminal block orange (2 poles)
1500VDC isolation from other ports
Port A
1 x Plug-in screw terminal block green (2 poles)
Reserved for future use
1 x DIP-Switch for PORTA configuration:
Switch A
Reserved for future use (leave OFF, default)
(SWA)
1 x Serial EIA232 (SUB-D9 male connector)
Reserved for future use
PORT B
1 x P-link 2 Plug-in screw terminal block (3 poles)
1500VDC isolation from other ports
(except PORT B: EIA232)
1 x DIP-Switch for PORTB configuration:
Switch B
Reserved for future use (leave OFF, default)
(SWB)
This marking on the product, accessories, packaging or literature (manual) indicates that the product contains electronic
parts and they must be properly disposed of by following the instructions at
Rev.1.0
© HMS Industrial Networks S.L.U - All rights reserved
This information is subject to change without notice
Power Supply
Ethernet
Panasonic
Must use NEC Class 2 or Limited Power Source (LPS) and SELV rated power supply.
BACnet IP
P-Link 1
Ethernet / BACnet IP (UDP) / Console (UDP & TCP)
Connect the cable coming from the IP network to the connector ETH of the gateway. Use an Ethernet CAT5
cable. If communicating through the LAN of the building, contact the network administrator and make sure traffic
on the port used is allowed through all the LAN path (check the gateway user manual for more information).
With factory settings, after powering up the gateway, DHCP will be enabled for 30 seconds. After that time, if no
IP is provided by a DHCP server, the default IP 192.168.100.246 will be set.
PortA / P-Link 1 Panasonic
Connect the P-Link terminals of Panasonic Outdoor Unit to the connectors A3 and A4 of gateway's PortA. There
is no polarity to be respected.
PortB / P-Link 2 Panasonic
Connect the P-Link terminals of Panasonic Outdoor Unit to the connectors B1 and B2 of gateway's PortB. There
is no polarity to be respected.
Console Port
Connect a mini-type B USB cable from your computer to the gateway to allow communication between the
Configuration Software and the gateway. Remember that Ethernet connection is also allowed. Check the user
manual for more information.
USB
Connect a USB storage device (not a HDD) if required. Check the user manual for more information.
Panasonic
P-Link 2
w
h): 90x88x56 mm
x
x
w
h): 130x100x100mm
x
x
... 2.5mm
2
2
... 1.5mm
2
2
https://intesis.com/weee-regulation
If using DC power supply:
Respect polarity applied of terminals (+) and (-). Be sure the voltage applied is within the range admitted
(check table below). The power supply can be connected to earth but only through the negative terminal,
never through the positive terminal.
If using AC power supply:
Make sure the voltage applied is of the value admitted (24 Vac). Do not connect any of the terminals of the
AC power supply to earth, and make sure the same power supply is not supplying any other device.
Battery
Console
Port
USB port
Push Button
Operation
Temperature
Operational
Humidity
Protection
LED
Indicators
100 mm (h)
Size: Coin 20mm x 3.2mm
Capacity: 3V / 225mAh
Type: Manganese Dioxide Lithium
Mini Type-B USB 2.0 compliant
1500VDC isolation
Type-A USB 2.0 compliant
Only for USB flash storage device
(USB pen drive)
Power consumption limited to 150mA
(HDD connection not allowed)
Button A: Check the user manual
Button B: Check the user manual
0°C to +60°C
5 to 95%, no condensation
IP20 (IEC60529)
10 x Onboard LED indicators
2 x Run (Power)/Error
2 x Ethernet Link/Speed
2 x Port A TX/RX
2 x Port B TX/RX
1 x Button A indicator
1 x Button B indicator
100 mm (w)
URL
https://www.intesis.com
130 mm (d)
2 / 2
