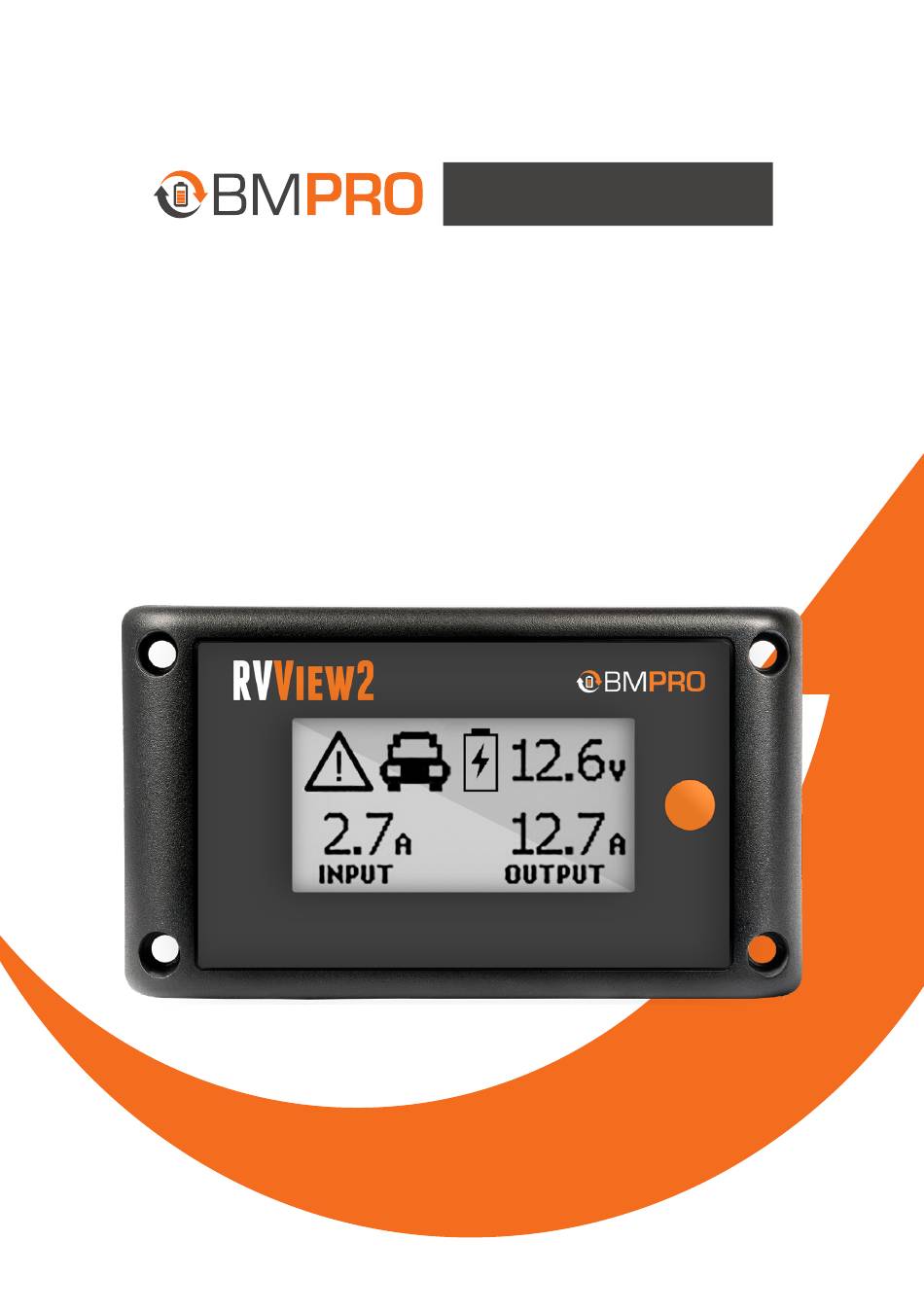

- Page 1 OWNER’S MANUAL RVView2 TEAMBMPRO.COM...
- Page 3 To learn more about the BMPRO range of products, please visit our website teambmpro.com TEAM BMPRO...
-
Page 4: Safety Precautions
Correct installation is the most critical factor in ensuring the safe use of the RVView2. If every consideration of these instructions has been satisfied, the RVView will be safe to operate Keep the RVView2 away from water or other liquids. -
Page 6: Table Of Contents
RVVIEW2 WIRING DIAGRAM ....12 USING YOUR RVVIEW2 ....13 SERVICING . -
Page 8: About The Rvview2
- so you’ll never be left on the road without battery power. In addition to battery monitoring, the RVView2 enables monitoring of water levels of up to four water tanks, all from a sleek, wall mounted back-lit display. -
Page 9: Description Of Parts
DESCRIPTION OF PARTS POWER INFORMATION SCREEN Figure 2: The power information screen on the RVView2 Monitor WARNING INDICATOR Indicating an issue, the RVView2 will display a warning if: • There is a fault with one (or more) of the loads connected to the BatteryPlus35-II, for example, a short or overload fault. - Page 10 The backlight will automatically turn off after 30 seconds. OUTPUT CURRENT The current provided by the BatteryPlus35-II to power loads connected to the unit. The RVView2 can only show current higher than 0.5A. Anything lower than 0.5A will be displayed as 0.0A. INPUT CURRENT The total current drawn by the BatteryPlus35-II, from its input sources, to power loads connected to the BatteryPlus35-II and to charge the caravan battery.
-
Page 11: Water Tanks Screen
BACKLIGHT/SCREEN CHANGE BUTTON Press the backlight/screen change button to turn the backlight of the RVView2 screen To switch the screen between the water tanks screen and the power information screen, press the backlight/screen change button to turn the backlight on, then press the button again to change the screen. -
Page 12: Rvview2 Wiring Diagram
RVVIEW2 WIRING DIAGRAM... -
Page 13: Using Your Rvview2
The RVView2 receives power directly from the BatteryPlus35-II through the connected data cable. The RVView2 will automatically turn off if it is not receiving power from the BatteryPlus35-II. A custom cable will have been supplied with your RVView2 which is required for connecting to the BatteryPlus35-II or the OdysseyLink. -
Page 14: Faqs And Troubleshooting
Why is the input/output current showing as 0.0A when there is an active current? The RVView2 can only display input or output figures of 0.5A or higher. If the level of current is lower than 0.5A, the RVView2 will display 0.0A. -
Page 15: Specifications
SPECIFICATIONS RVView2 Indicator displayed if BatteryPlus35-II Visual Warning short-circuit is detected Water Monitoring Dipper or tank bungs Monitored Battery Capacity 50-600Ah Input Voltage Range 6-16V Battery Drain < 22mA with backlight off Ambient Temperature 0-50°C Dimensions (mm) 140W x 80H x 15.5D... -
Page 16: Compliance
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Any changes or modifications not expressly approved by BMPRO could void the user’s authority to operate this equipment. -
