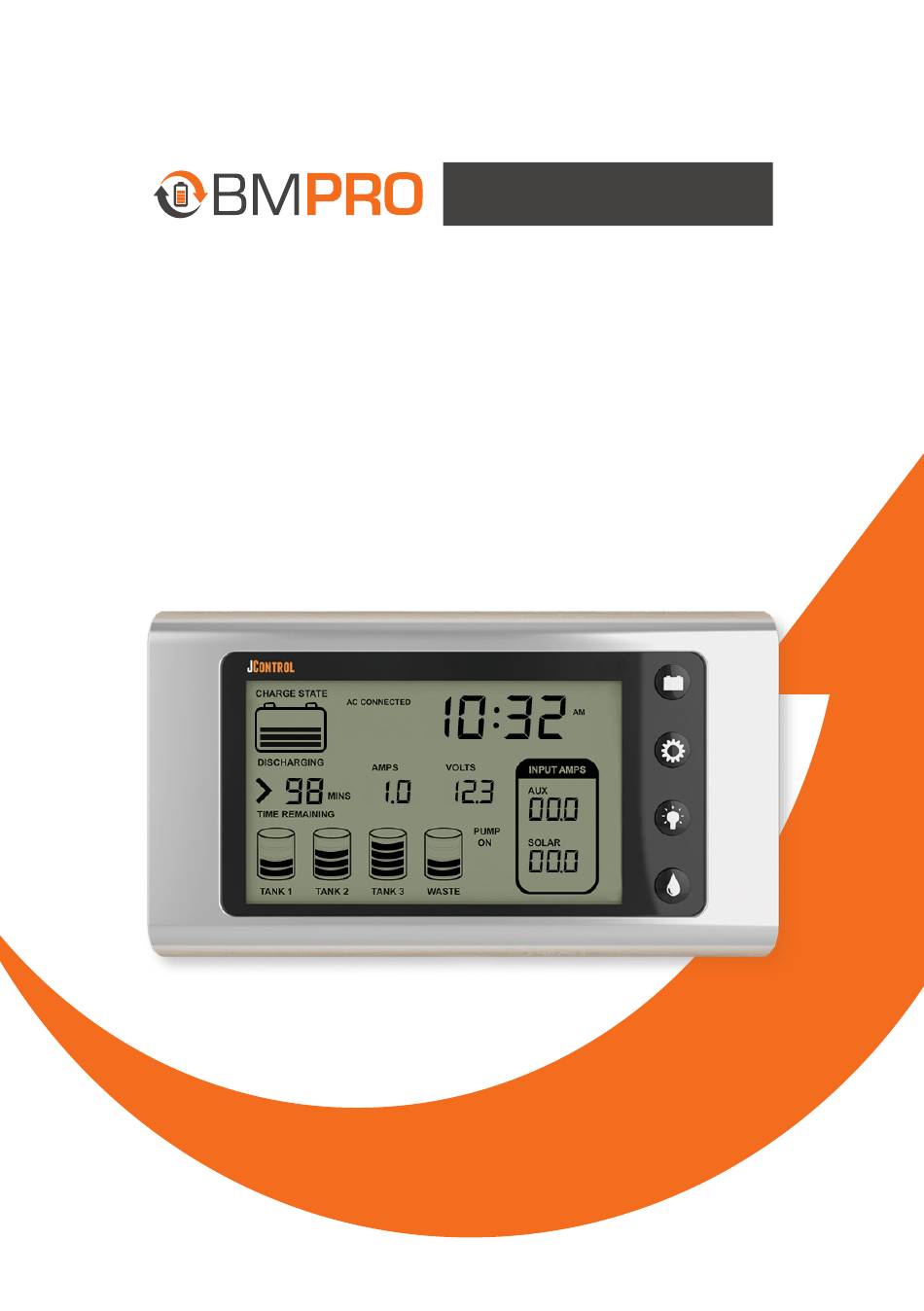

- Page 1 OWNER’S MANUAL JControl TEAMBMPRO.COM...
- Page 2 To learn more about the BMPRO range of products, please visit our website teambmpro.com TEAM BMPRO .COM...
-
Page 3: Safety Precautions
Correct installation is the most critical factor in ensuring the safe use of the JControl. If every consideration of these instructions has been satisfied, the JControl will be safe to operate. -
Page 4: About The Jcontrol
The JControl is designed specifically to operate with BMPRO’s J35 (Models A and B). The JControl provides vital data at a glance including caravan battery voltage and charging/discharging current. The JControl also provides an indication of the battery’s remaining charge capacity as well as the time remaining before the battery completely discharges-so you’ll... -
Page 5: Table Of Contents
TABLE OF CONTENTS SAFETY PRECAUTIONS ABOUT THE JCONTROL WHAT’S INCLUDED DESCRIPTION OF PARTS USING YOUR JCONTROL JCONTROL SET-UP MODE Entering Set-Up Mode Set-Up Mode Menu Functions Exiting Set-Up Mode CLOCK MENU FUNCTION 12-Hour Format 24-Hour Format WATER TANK MENU FUNCTION... -
Page 6: Description Of Parts
DESCRIPTION OF PARTS 11 10 Figure 1: JControl Monitoring Panel AC CONNECTED Appears when the J35 is connected to AC mains. BATTERY OFF Battery off will appear when: The user presses the battery button to enter Sleep Mode. The J35 has automatically entered Sleep Mode to preserve battery capacity until the battery can be charged. - Page 7 If either of the inputs are unavailable to the J35, the JControl will display “--.-“. If either of the inputs are available to the J35 but not in use, the JControl will display “00.0”...
- Page 8 WATER PUMP STATUS INDICATOR Indicates if the water pump connected to the J35 is turned on or off. VOLTS Displays the caravan battery voltage. AMPS Displays the charging/discharging current of the battery connected to the J35. TANK LEVEL INDICATORS Monitor water levels of up to 4 water tanks. By default, tanks 1, 2 and 3 are set-up to monitor clean water and tank 4 as dirty water.
-
Page 9: Using Your Jcontrol
USING YOUR JCONTROL JControl does not have an ON/OFF button. The JControl receives power directly from the J35 through the connected data cable. The JControl will automatically turn off if it is not receiving power from the J35. Upon start-up, the JControl will display... -
Page 10: Set-Up Mode Menu Functions
Back Use the Setting button on the JControl to return to the previous ‘Screen’ or menu function. Repeatedly press the Setting button to return to the JControl’s home screen. Scroll Arrows Use the Backlight and Water Pump buttons on the JControl to navigate the Set-Up menu and change values when configuring the JControl. -
Page 11: Exiting Set-Up Mode
To exit Set-Up mode or to exit from any menu function available in Set-Up mode, repeatedly press the BACK button until the JControl enters the Home screen. Alternatively, wait and the JControl will automatically revert to the Home screen, saving any changes made when editing the menu functions. -
Page 12: 24-Hour Format
24-Hour Format Enter Set-Up mode and navigate to the CLOCK menu function. Follow the directions in Figure 5 to set the time in 24-hour format on the JControl display. Figure 5: Setting 24-hour time format on the JControl display... -
Page 13: Water Tank Menu Function
Enter Set-Up mode and navigate to the tanks menu function. Follow the directions in figure 6 to enable or disable the monitoring and display of water tank on the JControl. Figure 6: Enabling and disabling a water tank for monitoring and display with the JControl... -
Page 14: Configure Water Tank Type
Configure Water Tank Type Enter Set-Up mode and navigate to the tanks menu function. Follow the directions in Figure 7 to configure the water tank type. The ability to configure water tank type is only available if monitoring of the tank is enabled. Figure 7: Configuring the water tank type... -
Page 15: Configuring Battery Capacity
CONFIGURING BATTERY ALARM Configure the battery alarm and set the low battery voltage warning threshold to trigger the Battery Low warning on the JControl Home screen to indicate that the battery requires charging. By default, the low voltage warning threshold is 11V. -
Page 16: Lcd Backlight
Figure 10: Configuring the LCD backlight brightness level FACTORY RESET Enter Set-Up mode and navigate to the FaCtOry menu function. Follow the directions in Figure 11 to perform a factory reset and restore the JControl to the factory settings. Figure 11: Factory reset... -
Page 17: Servicing
Why has the JControl screen turned off? The JControl receives power to run the monitor from the J35. If the J35 shuts power to the monitor, the JControl screen will turn off. The J35 will shut power to the JControl if: The user activated the load isolation switch connected to the J35. -
Page 18: Appendices
To adjust bulk voltage, enter Set-Up mode, select the advanC menu function and navigate to the CHargE menu function. Follow the directions in Figure 13. Figure 13: Adjusting bulk voltage SPECIFICATIONS JControl Input Voltage Range: 8-15V DC Battery Drain: < 21mA with backlight off Ambient Temperature: 0-50°C... -
Page 19: Warranty Terms And Conditions
5. BMPRO may seek reimbursement of any costs incurred by BMPRO when a product is found to be in proper working order or damaged as a result of any of the warranty exclusions mentioned in point 4 of this statement. - Page 20 BMPRO TEAM +61 3 9763 0962 sales@teambmpro.com BMPRO 19 Henderson Rd, Knoxfield VIC 3180 Australia .COM teambmpro.com...
