P R-18L

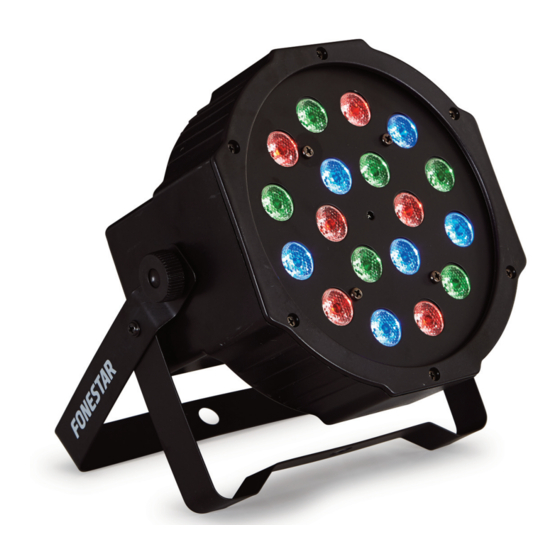

PAR SPOTLIGHT 18 x 1 W RGB
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAR-18L and is the answer not in the manual?

Questions and answers

Related Manuals for FONESTAR PAR-18L

Summary of Contents for FONESTAR PAR-18L

  • Page 1 P R-18L PAR SPOTLIGHT 18 x 1 W RGB INSTRUCTION MANUAL...
  • Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.

  • Page 3: Exemption Of Liability

    The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use.

  • Page 4: Controls And Functions Rear Panel

    DESCRIPTION Flat PAR spotlight RGB. Automatic mode, static mode, sound activation and master/slave mode. Colour, dimmer, strobe adjustment and speed adjustable via DMX control console. Microphone incorporated. CONTROLS AND FUNCTIONS REAR PANEL 100-240 V AC power supply. DMX OUT: control signal output, 3-pin XLR connector. DMX IN: control signal input, 3-pin XLR connector.

  • Page 5: Remote Control

    REMOTE CONTROL : on/off button. Auto: automatic mode. Jump: change colours. Sound: sound control activation. RED: maximum brightness in red. ROSE: maximum brightness in rose. WHITE: maximum brightness in white. DMX: activates/deactivates DMX control. Strobe: stroboscope mode. 10.- FADE: gradual colour change. 11.- GREEN: maximum brightness in green.
  • Page 6 The device can be controlled using the DMX control console. To do so, select mode A001 and the DMX address with a value between 1 and 512 using the UP, DOWN buttons and confirm with the ENTER button. In the following table the device’s functions performed by the 7 DMX channels are shown. It is possible to alternate their use freely among several channels simultaneously.

  • Page 7: Safety Recommendations

    - Do not modify the lighting elements of the equipment without technical supervision or with material that has not been guaranteed by the supplier. TECHNICAL SPECIFICATIONS PAR-18L CHARACTERISTICS Flat PAR spotlight RGB. Automatic mode, static mode, sound activation and master/slave mode.

  • Page 8: Warranty

    2 months after being conscious of the problem. It is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it. To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no corrections or crossing out.
