FONESTAR PAR-60L Instruction Manual

Par spotlight 30 x 2 w rgbauv
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
P R-60L
PAR SPOTLIGHT 30 x 2 W RGBAUV
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading

Related Manuals for FONESTAR PAR-60L

Summary of Contents for FONESTAR PAR-60L

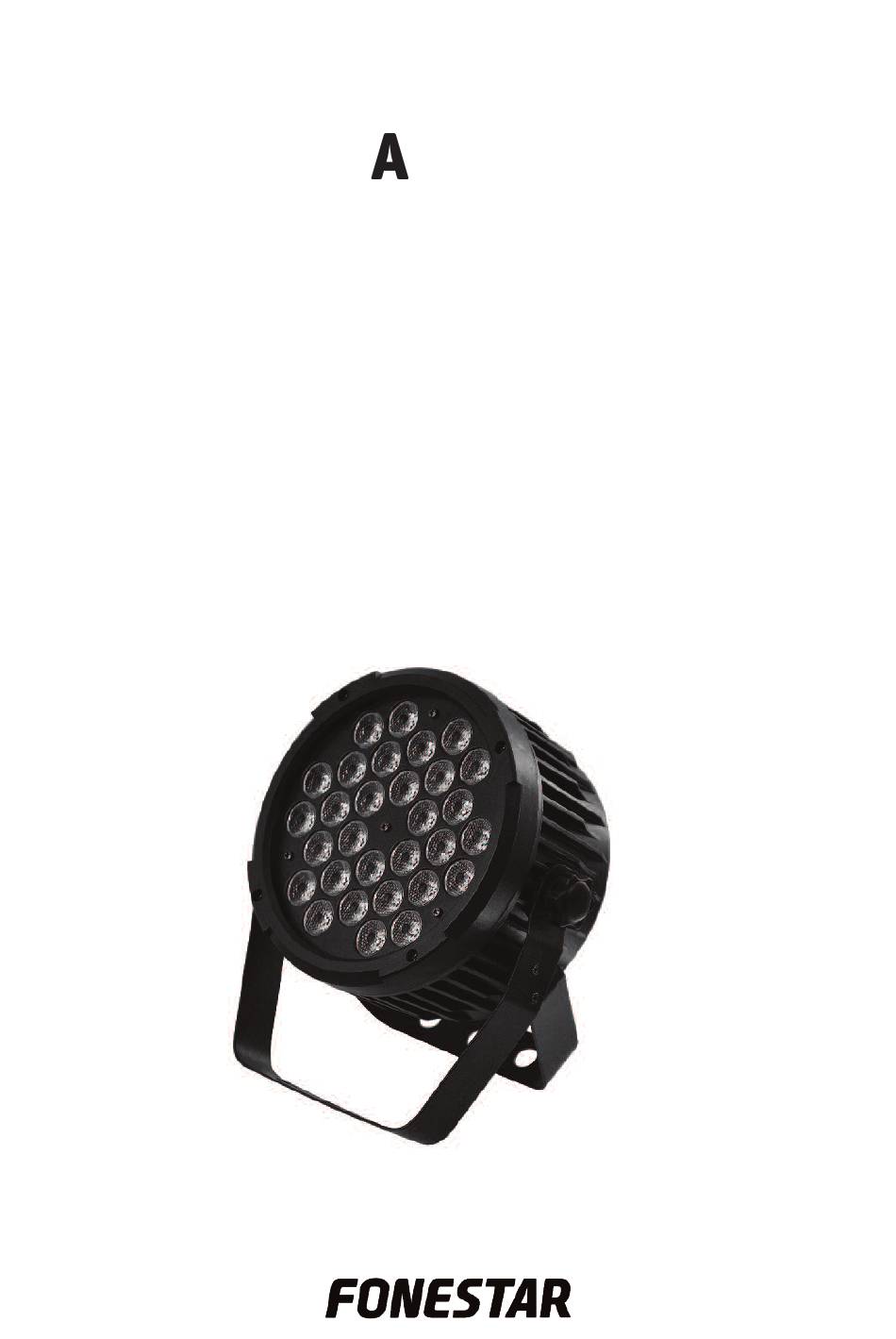

  • Page 1 P R-60L PAR SPOTLIGHT 30 x 2 W RGBAUV INSTRUCTION MANUAL...
  • Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.

  • Page 3: Exemption Of Liability

    The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use.

  • Page 4: Controls And Functions Rear Panel

    DESCRIPTION Flat PAR spotlight RGBAUV. DMX control via 9 channels, automatic mode, sound activation or master/slave mode. Colour, dimmer, strobe adjustment and speed adjustable via DMX control console. Microphone incorporated. CONTROLS AND FUNCTIONS REAR PANEL DISPLAY: shows the device’s current operating mode. Control panel buttons: MENU: allows the parameter to be changed in order to modify.

  • Page 5: Connection And Operating

    CONNECTION AND OPERATING Select the operating mode using the MENU button, according to the table below. The chosen mode can be varied using the UP and DOWN buttons. Press ENTER to select the required mode. MODE DISPLAY FUNCTION A001-A511 A001-A511 Control via DMX Au 1-Au31 Static colours...

  • Page 6: Safety Recommendations

    - To connect several devices controlled via DMX-512, they must be interconnected using XLR cables with the following configuration: - Connect the device to the mains supply and switch it on. - It is possible to connect several devices in cascade to be managed collectively or separately. Connect an XLR cable between DMX IN input of the device and the DMX OUT output of the DMX control console if it is the first element in the chain, or the DMX OUT output of the previous element in the chain of your show lighting assembly.

  • Page 7: Technical Specifications

    TECHNICAL SPECIFICATIONS PAR-60L CHARACTERISTICS Flat PAR spotlight RGBAUV. Automatic mode, static mode, sound activation and master/slave mode. Colour, dimmer, strobe adjustment and speed adjustable via DMX control console. Microphone incorporated. 30 x 2 W, 5 in 1 DMX CHANNELS INPUTS...

  • Page 8: Warranty

    2 months after being conscious of the problem. It is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it. To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no corrections or crossing out.
