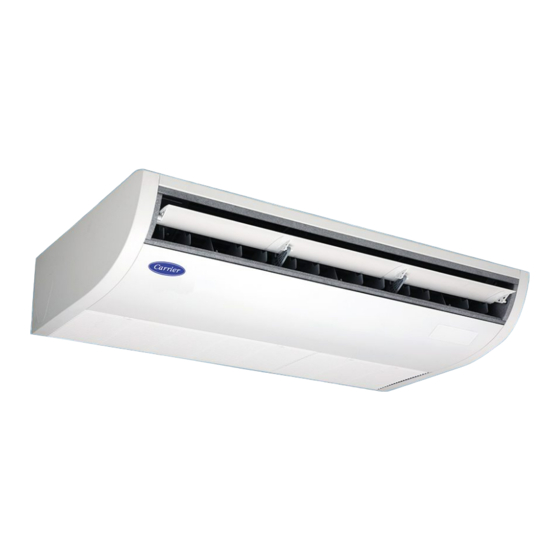

Air conditioner (split type) indoor unit ceiling type for commercial use
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AIR CONDITIONER (SPLIT TYPE)
Owner's Manual
Indoor Unit
Model name:
Ceiling Type
42TSV0131CP
42TSV0181CP
42TSV0241CP
42TSV0361CP
42TSV0401CP
42TSV0401CP1
Carrier 1115653804_EN TH.indb 1
Carrier 1115653804_EN TH.indb 1
For commercial use
1115653804
Português
English
English
Owner's Manual
1
Español
14
3/28/16 4:42 PM
3/28/16 4:42 PM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 42TSV0131CP and is the answer not in the manual?

Questions and answers

Related Manuals for Carrier 42TSV0131CP

Summary of Contents for Carrier 42TSV0131CP

  • Page 1 AIR CONDITIONER (SPLIT TYPE) Owner’s Manual Indoor Unit For commercial use Model name: Ceiling Type 42TSV0131CP 42TSV0181CP 42TSV0241CP 42TSV0361CP 42TSV0401CP 42TSV0401CP1 Português English English Owner’s Manual Español Carrier 1115653804_EN TH.indb 1 Carrier 1115653804_EN TH.indb 1 3/28/16 4:42 PM 3/28/16 4:42 PM...

  • Page 2: Table Of Contents

    „Maschinenlärminformations-Verordnung - 3. GPSGV, der höchste Schalldruckpegel beträgt 70 dB(A) oder weniger gemäss EN ISO 7779.“ 1-EN 2-EN Carrier 1115653804_EN TH.indb 1 Carrier 1115653804_EN TH.indb 1 3/28/16 4:42 PM 3/28/16 4:42 PM...
  • Page 3 Toshiba Carrier Corporation or, alternatively, he or she has been instructed in such matters by an individual or individuals who have been trained and is thus thoroughly acquainted with the knowledge related to this work.

  • Page 4: Precautions For Safety

    When the air conditioner is to be relocated, do not relocate it yourself but contact a qualified installer (*1) or a qualified service person (*1). Failure to relocate the air conditioner properly may result in electric shocks and/or a fire. 5-EN 6-EN Carrier 1115653804_EN TH.indb 3 Carrier 1115653804_EN TH.indb 3 3/28/16 4:42 PM 3/28/16 4:42 PM...
  • Page 5 Stacking notice. In case that cardboard boxes protrude out of pallet when stacking. lay a 10 mm thick plywood over the pallet. 7-EN 8-EN – 4 – Carrier 1115653804_EN TH.indb 4 Carrier 1115653804_EN TH.indb 4 3/28/16 4:42 PM 3/28/16 4:42 PM...

  • Page 6: Part Names

    The selected set temperature is displayed. The selected timer mode is displayed. Power saving mode display Louver position display Limits compressor speed (capacity) to save Displays louver position. energy. 9-EN 10-EN Carrier 1115653804_EN TH.indb 5 Carrier 1115653804_EN TH.indb 5 3/28/16 4:42 PM 3/28/16 4:42 PM...
  • Page 7 For details, contact the dealer from which you have purchased the air conditioner. 11-EN 12-EN – 6 – Carrier 1115653804_EN TH.indb 6 Carrier 1115653804_EN TH.indb 6 3/28/16 4:42 PM 3/28/16 4:42 PM...

  • Page 8: Correct Usage

    When the unit is attempted to restart immediately after it was stopped, the unit can not start for approx. 3 minutes this is to protect the compressor. 13-EN 14-EN Carrier 1115653804_EN TH.indb 7 Carrier 1115653804_EN TH.indb 7 3/28/16 4:42 PM 3/28/16 4:42 PM...

  • Page 9: Adjustment Of Wind Direction

    When the horizontal louver is pointing downward in COOL mode, water droplets may form on the surface of the cabinet or louver and drop down. 15-EN 16-EN – 8 – Carrier 1115653804_EN TH.indb 8 Carrier 1115653804_EN TH.indb 8 3/28/16 4:42 PM 3/28/16 4:42 PM...

  • Page 10: Power Saving Mode

    Each time you push the button, UNIT No. change as follows: UNIT No. UNIT No. UNIT No. UNIT No. The fan of the selected unit runs. 17-EN 18-EN Carrier 1115653804_EN TH.indb 9 Carrier 1115653804_EN TH.indb 9 3/28/16 4:42 PM 3/28/16 4:42 PM...

  • Page 11: Maintenance

    Dust / dirt, scratches louvers repair coating. Rust, peeling of insulator Exterior Outdoor Apply repair coating. Peeling / lift of coat 19-EN 20-EN – 10 – Carrier 1115653804_EN TH.indb 10 Carrier 1115653804_EN TH.indb 10 3/28/16 4:42 PM 3/28/16 4:42 PM...

  • Page 12: Troubleshooting

    The unit cannot be run even after the cause of the protective device activation is removed. After confirmation, push button to return Other unusual conditions are found. to the usual display. 21-EN 22-EN Carrier 1115653804_EN TH.indb 11 Carrier 1115653804_EN TH.indb 11 3/28/16 4:42 PM 3/28/16 4:42 PM...

  • Page 13: Operations And Performance

    Up to 8 units can be operated simultaneously using a wired remote controller (sold separately). For details, consult you local dealer. 23-EN 24-EN – 12 – Carrier 1115653804_EN TH.indb 12 Carrier 1115653804_EN TH.indb 12 3/28/16 4:42 PM 3/28/16 4:42 PM...

  • Page 14: Installation

    Install the air conditioner on a solid and stable foundation so that it prevents transmission of resonating, operation noise and vibration. If one indoor unit is operating, some sound may be audible from other indoor units that are not operating. 25-EN 26-EN Carrier 1115653804_EN TH.indb 13 Carrier 1115653804_EN TH.indb 13 3/28/16 4:42 PM 3/28/16 4:42 PM...
  • Page 15 ............26 EN 60335-1 1-TH 2-TH – 14 – Carrier 1115653804_EN TH.indb 14 Carrier 1115653804_EN TH.indb 14 3/28/16 4:42 PM 3/28/16 4:42 PM...
  • Page 16 Doing so may result in injury. • CAUTION BURST HAZARD Open the service valves before the operation, otherwise there • might be the burst. • 3-TH 4-TH Carrier 1115653804_EN TH.indb 15 Carrier 1115653804_EN TH.indb 15 3/28/16 4:42 PM 3/28/16 4:42 PM...
  • Page 17 • • (*1) (*1) • • • (*1) (*1) • • • (*1) • (*1) (*1) (*1) • (*1) (*1) • 5-TH 6-TH – 16 – Carrier 1115653804_EN TH.indb 16 Carrier 1115653804_EN TH.indb 16 3/28/16 4:42 PM 3/28/16 4:42 PM...
  • Page 18 – 17 – • • • • • • • • • • 11 cartons • • • • • • (*1) “ ” 7-TH 8-TH Carrier 1115653804_EN TH.indb 17 Carrier 1115653804_EN TH.indb 17 3/28/16 4:42 PM 3/28/16 4:42 PM...
  • Page 19 • • TEMP. ON / OFF TIMER SET MODE TIME SAVE VENT FILTER RESET TEST SWING/FIX UNIT LOUVER 9-TH 10-TH – 18 – Carrier 1115653804_EN TH.indb 18 Carrier 1115653804_EN TH.indb 18 3/28/16 4:42 PM 3/28/16 4:42 PM...
  • Page 20 – 19 – • “ ” • ON/OFF, MODE TEMP. “ ” 11-TH 12-TH Carrier 1115653804_EN TH.indb 19 Carrier 1115653804_EN TH.indb 19 3/28/16 4:42 PM 3/28/16 4:42 PM...
  • Page 21 ) ( * 23.5 ) ( * • • Auto Cool ) (0.5 – 23.5 (24 – 168 • 23.5 • • • 13-TH 14-TH – 20 – Carrier 1115653804_EN TH.indb 20 Carrier 1115653804_EN TH.indb 20 3/28/16 4:42 PM 3/28/16 4:42 PM...
  • Page 22 – 21 – • • SWING • • UNIT No. UNIT No. UNIT No. • UNIT No. • COOL • 15-TH 16-TH Carrier 1115653804_EN TH.indb 21 Carrier 1115653804_EN TH.indb 21 3/28/16 4:42 PM 3/28/16 4:42 PM...
  • Page 23 100% • • • • • • • • • • • • UNIT No. UNIT No. UNIT No. UNIT No. 17-TH 18-TH – 22 – Carrier 1115653804_EN TH.indb 22 Carrier 1115653804_EN TH.indb 22 3/28/16 4:42 PM 3/28/16 4:42 PM...
  • Page 24 – 23 – • • • “ ” “ ” • • • • • • • • 19-TH 20-TH Carrier 1115653804_EN TH.indb 23 Carrier 1115653804_EN TH.indb 23 3/28/16 4:42 PM 3/28/16 4:42 PM...
  • Page 25 • • • “Low” “Fan” Unit No. • • CODE No. [01] ( [04] ( → • • • • • 21-TH 22-TH – 24 – Carrier 1115653804_EN TH.indb 24 Carrier 1115653804_EN TH.indb 24 3/28/16 4:42 PM 3/28/16 4:42 PM...
  • Page 26 : 21 °C 32 °C ( ) , 15 °C 24 °C ( • – • • • • • • • • • 23-TH 24-TH Carrier 1115653804_EN TH.indb 25 Carrier 1115653804_EN TH.indb 25 3/28/16 4:42 PM 3/28/16 4:42 PM...
  • Page 27 • • • • • • • • • • • • • • • • • • • 25-TH 26-TH – 26 – Carrier 1115653804_EN TH.indb 26 Carrier 1115653804_EN TH.indb 26 3/28/16 4:42 PM 3/28/16 4:42 PM...
  • Page 28 1115653804 Carrier 1115653804_EN TH.indb 2 Carrier 1115653804_EN TH.indb 2 3/28/16 4:42 PM 3/28/16 4:42 PM...
