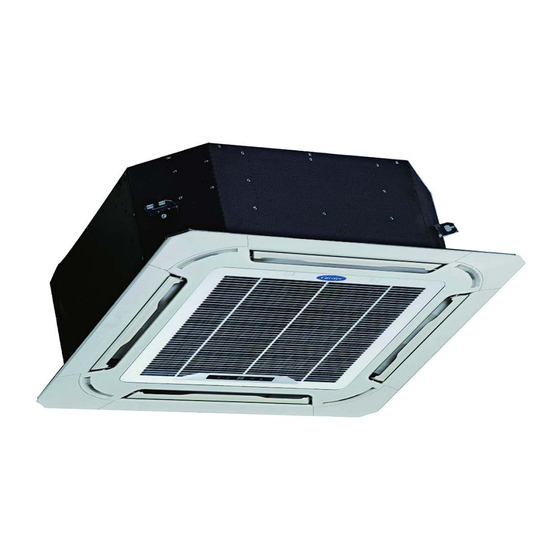

- Page 1 SLIM CASSETTE TYPE AIR CONDITIONER OWNER’S MANUAL Power Supply Indoor Unit Outdoor Unit 42TSV052P1 38TSV052P1 220-240V ~ 50Hz 42TSV067P1 38TSV067P1 220-240V ~ 50Hz 220-240V ~ 50Hz 42TSV080P1 38TSV080P1 42TSV110P1 38TSV110P1 220-240V ~ 50Hz 42TSV130P1 38TSV130P1 220-240V ~ 50Hz...
- Page 2 Thank you very much for purchasing our air conditioner, Before using your air conditioner, please read this manual carefully and keep it for future reference.
- Page 3 INDOOR UNIT OUTDOOR UNIT Fig.1 Grille Air flow louver(at air outlet) Display panel Drain pump(inside the indoor unit) Remote controller Drain pipe Refrigerant pipe Air outlet Air inlet Air filter(inside the grill) Air outlet Air inlet Air inlet NOTE All the pictures in this manual are for explanation purpose only. They may be slightly different from the air conditioner you purchased(depend on model).The actual shape shall prevail.
-
Page 4: Table Of Contents
It is not good for your health to expose your body to the CONTENTS PAGE air flow for a long time. 1.IMPORTANT SAFETY INFORMATION............1 Do not insert fingers, rods or other objects into the air 2.PARTS NAMES..................2 inlet or outlet. When the fan is rotating at high speed, it will cause injury. -
Page 5: Parts Names
If the supply cord is damaged, it must be replaced by the Do not operate the air conditioner with a wet hand. manufacturer, its service agent or similarly qualified An electric shock may happen. persons in order to avoid a hazard. Do not touch the heat exchanger fins. -
Page 6: Hints For Economical Operation
4. HINTS FOR ECONOMICAL OPERATION Table 3-1(for inverter type air conditioner) The following should be noticed to ensure an economical operation. Temperature Outdoor Adjust the air flow louver properly and avoid direct air flow to temperature temperature Mode room inhabitants. -10°C ~ 48°C / 14 °F~118°F Adjust the room temperature properly for a comfortable 18°C ~ 32°C... -
Page 7: Maintenance
6. MAINTENANCE Take out the air-in grill (together with the air filter shown in Fig.6-1). Pull the air-in grill down at 45 and lift it up to take out the grill. CAUTION Dismantle the air filter. Before you clean the air conditioner, be sure the power supply is off. -
Page 8: Following Symptoms Are Not Air Conditioner Troubles
7. FOLLOWING SYMPTOMS ARE NOT AIR A continuous low hissing sound is heard when the system is in operation. CONDITIONER TROUBLES This is the sound of refrigerant gas flowing through both indoor and outdoor units. Symptom 1: The system does not operate A hissing sound which is heard at the start or immediately after stopping operation or defrost operation. - Page 9 Table 8-1 Symptoms Causes Solution Power failure. Wait for the comeback of power. Power switch is off. Switch on the power. Fuse of power switch may have burned. Replace the fuse. Unit does not start Batteries of remote controller exhausted Replace the batteries or check the or other problem of controller.
