Quick Installation Guide

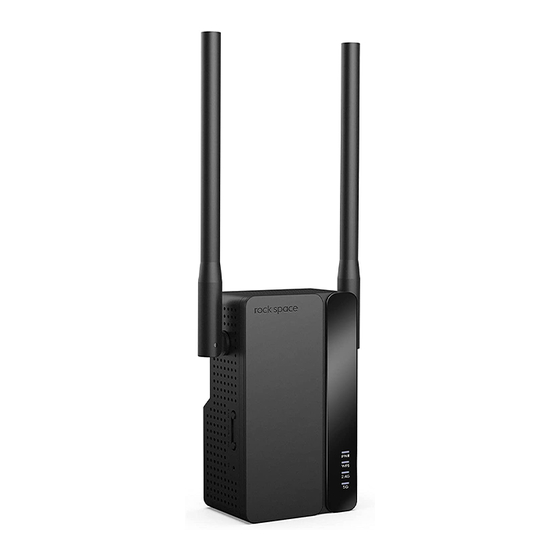

AX1800 Dual Band Wi-Fi Range Extender
Model No.: RSD0618
EN
Meet Your Extender
2.4G-WPS-5G
Reset Pinhole
Signal LED
Blue
Orange
WPS LED
On
O
Power LED
Solid on
Slow Blinking
Fast Blinking
O
Ethernet Port
This LED indicates the connection
between the extender and the router.
Best connection
Poor connection
No connection
Wi-Fi security is enabled (lasts for 2 min).
WPS connection is not enabled.
The extender is powered on.
The extender is running normally.
The extender is being reset, ready to reboot.
The extender is powered o .
Power LED
WPS LED
2.4G Signal LED
5G Signal LED
Advertisement
Related Manuals for rock space RSD0618
Summary of Contents for rock space RSD0618
- Page 1 Quick Installation Guide Reset Pinhole WPS LED 2.4G Signal LED 5G Signal LED AX1800 Dual Band Wi-Fi Range Extender Ethernet Port Model No.: RSD0618 This LED indicates the connection Signal LED between the extender and the router. Blue Best connection Orange...
- Page 2 Install the Plug Power On Plug the extender into a power outlet next to your router. Wait until its Power LED turns blue and blinks slowly. 1. Line up the two notches on the extender 2. Turn the plug clockwise until you with the notches on the detachable plug.
- Page 3 . Enter the password of the Wi-Fi network you want to extend. Wait until the page shows Set Up you “Extended successfully"! Method 1: Via a Web Browser . Connect your computer or smartphone to the extender’s network "rockspace_EXT " . When you are using a computer, unplug the Ethernet cable if any.
-
Page 4: Manage Your Extender
FAQ > Q3 > A3, A4. Antennas upward and vertical to the ground Extended Network Name: Router’s network name with _EXT/_5GEXT at the end RSD0618 Password: Same as your router Note: If you want to change the extended network name, refer to Manage Your Extender. -
Page 5: Enjoy The Internet
Method 2: Ethernet-Enabled Devices You can connect a wired device to the extender using an Ethernet cable. The device can then Q1: What should I do if I cannot access the extender's web management page? access your existing network through the extender’s Wi-Fi connection. Make sure your computer or smart phone has connected to the extender's network ended with _EXT/_5GEXT, and not that of your router. - Page 6 A4. If the Signal LED is o , it shows there is no connection between the extender and the router. Make sure you have not turned o or hidden the router's Wi-Fi signal. Also make sure you have not initiated encryption mode, MAC lter, or Blacklist of the router. Don't know how to manage your router? Reset your router to its factory settings or contact your network provider.
