rock space RSD0617 Quick Installation Manual

Quick Installation Guide
AC2100 Dual Band Wi-Fi Range Extender
Model No. RSD0617
1

Power On

Plug the extender into a power outlet next to your router.
Wait until its Power LED turns blue.
2
Set Up

Method 1: Via a Web Browser

1
. Connect your computer or smartphone to the extender's
network "rockspace_EXT ". When you are using a computer,
unplug the Ethernet cable if any. When you are using a
mobile phone, ensure the mobile data is disabled.
WLAN
rockspace_EXT
2
. The login window pops up automatically. If it doesn't, launch
a web browser and enter 192.168.0.254 or re.rockspace.local
manually to get started. Create your admin password and
record it down for later use.
*Note: If the login window does not appear, refer to FAQ > Q1.
192.168.0.254
Password (5-32 characters)
Next Not Now
Reset Pinhole
3
. Select the Wi-Fi network (SSID) you want to extend.
Select a Wi-Fi network you want
to extend...
Rescan Switch Mode
4
. Enter the password of the Wi-Fi network you want to extend.
Your existing Wi-Fi network
The extended WiFi network
SSID
Password of the extended network is the
same as your existing Wi-Fi network.
Back Extend
Note: By default, the extender uses the same SSID as the router.
Wait until the page shows you "Extended successfully"!

Method 2: Via the WPS Button

1
. Press the WPS button on the router.
2. Within 2 minutes, press the WPS button on the extender.
Press
3
. Wait until the Signal LED on the extender turns blue ,
indicating successful connection. If the Signal LED does not
turn blue, try again or use Method 1.

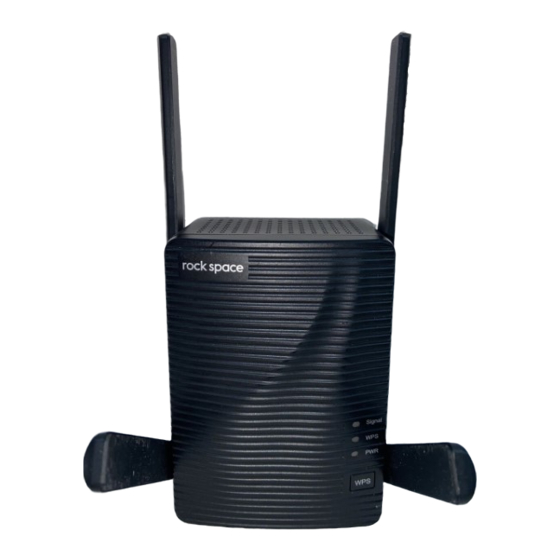

Meet Your Extender

Signal LED
Blue
Red
WPS LED
Signal LED
On
WPS LED
Power LED Blinking
O
WPS Button
Power LED
Solid on
Ethernet Port
Blinking
Relocate the
3
Wi-Fi Range Extender
1.
Plug in the extender about halfway between your router
and the Wi-Fi dead zone. The location you choose must be
within the range of your router.
2.
Wait for about 2 minutes until the Signal LED turns blue.
If it doesn't, relocate the extender closer to the router to
achieve better signal quality.
"
Suitable location, at a halfway
Too close to the router,
extended Wi-Fi signal can
not cover the dead zone.
This LED indicates the connection
between the extender and the router.
Best connection.
Poor connection.
No connection.
Wi-Fi security is enabled (WPA or WPA2).
WPS connection is in progress.
Wi-Fi security is not enabled.
The extender is powered on.
The extender is booting.
The extender is powered o .
point between your router
and the dead zone.
Too far away from the router,
the extender will lose
connection with your router.
