TV Installation - Detachable Speaker Bar
Detachable Speakerbar Installation - Top Mounting
WARNING: Use at least two people when transporting the TV.
Note: If you mount the TV to a ceiling or wall mount, it is best to install the Detachable Speaker Bar before the TV has been
installed.
Tools Needed: Phillips Screwdriver

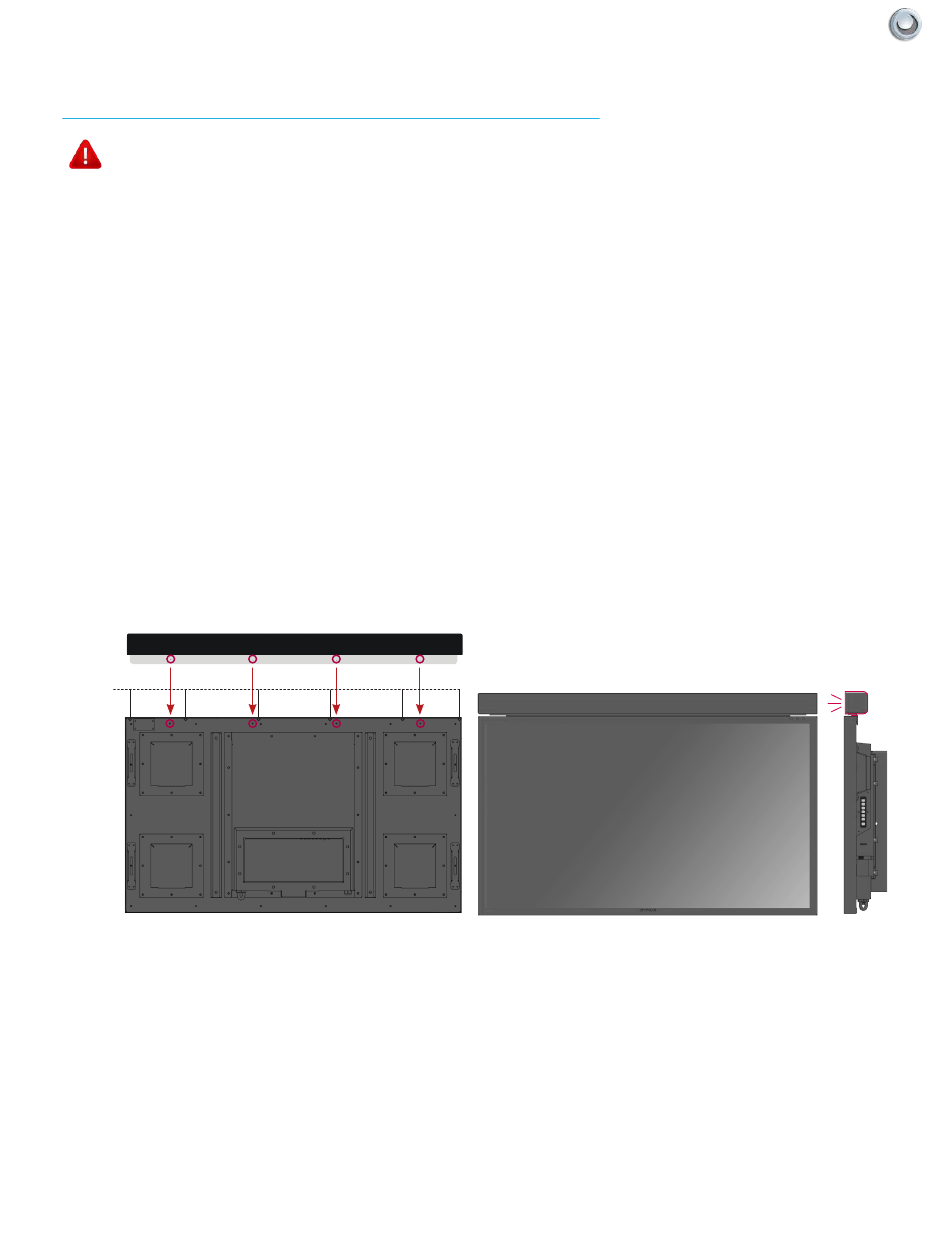

1. Remove the (4) #8-32 Phillips Head screws in either the top or bottom mount position.
(Refer to Figure 1 below for proper screw removal).
2. Position the Speaker bar in place and secure with the same (4) #8-32 screws that were removed in step 1.
3. Screw securely
4. Loosen the 3 latches, and open the Component Cover.
5. Take the Speaker Cable from the speaker, making sure that the Speaker Cable Wire is placed on the Rubber
Sealing Gasket, and plug it into the L/R Speakerbar "Audio out" ports on back of TV.
6. When you close the Component Cover, be sure that the Speaker Cable Wire is placed over the Rubber Seal-
ing Gasket. As with all wires entering the connection compartment, leave a drip loop as the wire enters the
TV, this will allow water to drip from the bottom of the loop.
7. Plug in power cord only after all other connections are made.
Do Not
Remove
Operator's Manual -
Model
SPEAKER BAR
Figure 1
NXG-5570-FS | C-NXG-5570-FS
TV I & C
nsTallaTIon onneCTIons
|
15
