Wallenstein LX100 Manual

Log grapple trailer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

INTRODUCTION

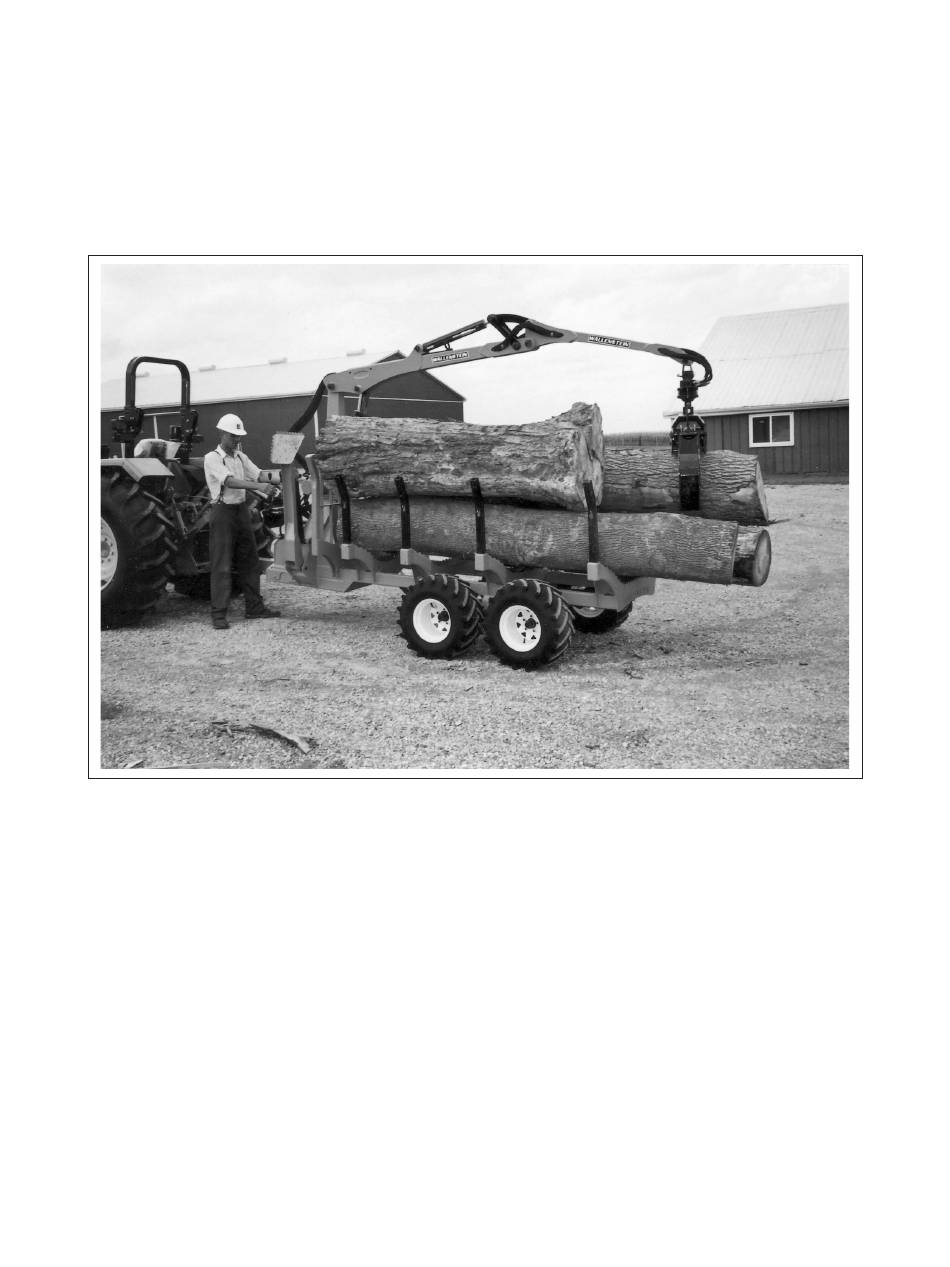

Congratulations on your choice of an Wallenstein Log Grapple Trailer to compliment your operation. This
equipment has been designed and manufactured to meet the needs of a discerning timber or landscaping
industry.
Safe, efficient and trouble free operation of your Wallenstein Log Grapple Trailer requires that you and
anyone else who will be using or maintaining the Trailer, read and understand the Safety, Operation,
Maintenance and Trouble Shooting information contained within the Operator's Manual.
This manual covers the Wallenstein Log Grapple Trailer. Use the Table of Contents or Index as a guide to
locate required information.
Keep this manual handy for frequent reference and to pass on to new operators or owners. Call your
Wallenstein dealer or the Distributer if you need assistance, information or additional copies of the manu-
als.
OPERATOR ORIENTATION - The directions left, right, front and rear, as mentioned throughout this
manual, are determined when standing at the operating station and looking over the machine.


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LX100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wallenstein LX100

Summary of Contents for Wallenstein LX100

  • Page 1 Trailer, read and understand the Safety, Operation, Maintenance and Trouble Shooting information contained within the Operator's Manual. This manual covers the Wallenstein Log Grapple Trailer. Use the Table of Contents or Index as a guide to locate required information.

  • Page 2: Safety Alert Symbol

    If you have any questions not answered in this manual or require additional copies or the manual is dam- aged, please contact your dealer or Wallenstein, 4144 Boomer Line, St. Clements, ON, N0B 2M0. Phone (519) 669-9283 or Fax (519) 699-4146.

  • Page 3: General Safety

    1. Read and understand the Op- YOU are responsible for the SAFE operation erator’s Manual and all safety and maintenance of your Wallenstein Log Grap- signs before using, maintain- ple Trailer. YOU must ensure that you and any- ing, adjusting or cleaning the one else who is going to use, maintain or work Trailer.

  • Page 4: Equipment Safety Guidelines

    EQUIPMENT SAFETY GUIDELINES 1. Safety of the operator and bystanders is one 7. Never exceed the limits of a piece of machin- of the main concerns in designing and de- ery. If its ability to do a job, or to do so safely, veloping equipment.

  • Page 5: Safety Training

    SAFETY TRAINING SAFETY SIGNS 1. Safety is a primary concern in the design and 1. Keep safety signs clean and legible at all manufacture of our products. Unfortunately, times. our efforts to provide safe equipment can be wiped out by a single careless act of an 2.
  • Page 6 OPERATOR SAFETY AREA PREPARATION 1. Heavy objects can fall or be dropped and 1. Never use the engine and machine until you injure people that are not in the safety area. have read and completely understand this manual, the Engine Operator's Manual and 2.

  • Page 7: Maintenance Safety

    MAINTENANCE SAFETY REFUELING SAFETY 1. Good maintenance is your responsibility. Poor 1. Handle fuel with care. It is highly flammable. maintenance is an invitation to trouble. 2. Allow engine to cool for 5 minutes before re- 2. Follow good shop practices. fueling.
  • Page 8 .0 OPERATING SAFETY 12. Position the trailer to provide a firm base for 1. Please remember it is important that you read the stabilizer pads before loading or unload- and heed the safety signs on the Log Grap- ing. ple Trailer. Clean or replace all safety signs if they cannot be clearly read and understood.

  • Page 9: Hydraulic Safety

    . HYDRAULIC SAFETY .3 TRANSPORT SAFETY 1. Make sure that all the components in the hy- 1. Comply with state and local laws governing draulic system are kept in good condition and safety and transporting of machinery on public are clean. roads.
  • Page 10 . GAS MOTOR SAFETY 14 DO NOT crank engine with spark plug removed. If engine is flooded, place throttle in "FAST" position and crank until engine starts. BEFORE STARTING ENGINE, READ AND UNDERSTAND THE OPERATING 15. DO NOT strike flywheel with a hard object or AND MAINTENANCE INSTRUCTIONS metal tool as this may cause flywheel to shat- THAT CAME WITH YOUR ENGINE.

  • Page 11: Sign-Off Form

    . SIGN-OFF FORM Wallenstein follows the general Safety Standards specified by the American Society of Agricultural and Biological Engineers (ASABE) and the Occupational Safety and Health Administration (OSHA). Anyone who will be using and/or maintaining the Log Grapple Trailer must read and clearly understand ALL Safety, Usage and Maintenance information presented in this manual.

  • Page 12: Safety Sign Locations

    SAFETY SIGN LOCATIONS The types of safety signs and locations on the equipment are shown in the illustrations that follow. Good safety requires that you familiarize yourself with the various safety signs, the type of warning and the area, or particular function related to that area, that requires your SAFETY AWARENESS. •...
  • Page 13 The types of safety signs and locations on the equipment are shown in the illustrations that follow. Good safety requires that you familiarize yourself with the various safety signs, the type of warning and the area, or particular function related to that area, that requires your SAFETY AWARENESS. •...

  • Page 14: Operation

    Stay away from overhead utilities and ob- structions. Review position of power lines. TO THE NEW OPERATOR OR OWNER The Wallenstein Log Grapple Trailer is designed Many features incorporated into this machine are to lift, load and transport wood or logs out of the the result of suggestions made by customers like woods or woodlot.

  • Page 15: Machine Components

    MACHINE COMPONENTS The Wallenstein Log Grapple Trailer is a heavy-duty 4 wheel trailer for hauling logs or wood- stock out of the woods or a woodlot. A boom and a pivoting grapple is mounted on the front of the frame for loading the logs.

  • Page 16: Machine Break-In

    MACHINE BREAK-IN PRE-OPERATION CHECKLIST Although there are no operational restrictions on Efficient and safe operation of the Wallenstein Log the Log Grapple Trailer when used for the first Grapple Trailer requires that each operator reads time, it is recommended that the following me-...

  • Page 17: Engine Controls

    CONTROLS Before starting to work, all operators should familiarize themselves with the location and function of controls. A. Gas Engine: Always read the engine Operator's manual supplied with the machine for detailed pro- cedures. Ignition Switch (Manual Start): This rotary switch controls the electrical power to the engine electrical system.

  • Page 18: Hydraulic Controls

    B. Boom Hydraulic Control Levers: All hydraulic control valves are mounted on top of the main frame. The two outer levers control the position of the stabilizers and the outer joy sticks control the function of the boom, dipper and bucket. a.
  • Page 19 ATTACHING/UNHOOKING The Log Grapple Trailer should always be located on a level, dry area that is free of debris and other foreign objects. When attaching the machine to a power unit, follow this procedure: 1. Make sure that all bystanders, especially small children, are clear of the working area.

  • Page 20: Field Operation

    FIELD OPERATION OPERATING SAFETY • Read Operator's Manual before using. • Stay 50 feet (15 m) away from power lines. Electrocution can occur without direct con- • Lower grapple and boom, place all controls tact. in neutral, stop engine, remove ignition key and wait for all moving parts to stop before •...
  • Page 21 5. Starting the Machine: a. Stop tractor engine, set park brake, remove ignition key and wait for all moving parts to stop before dismounting. b. Close the choke if the engine is cold. c. Move the throttle to its 1/4 throt- tle position.
  • Page 22 8. a. Extending Stabilizers: Use the outer levers to extend and lower the stabilizers on both sides. Be sure each one supports part of the frame weight so the base is solid. Left Right b. Training: It is recommended that all new or expe- rienced operators at the start of a new season, move the trailer to an open area without obstructions or bystanders to...
  • Page 23 Loading: Use the boom, dipper and grapple to grab the log or wood and place on the trailer frame. a. Move the boom, dipper and grapple out over the log or wood to be picked up. b. Turn the grapple until it is at right angles to the longitudinal position of the log or wood.
  • Page 24 10. Unloading: a. Extend the stabilizers using the outer hydrau- lic lever controls. Be sure to transfer part of the weight of the trailer onto each stabilizer to insure the pad is supported and will supply the required stability. b. Release the grapple from its stowed position. c.
  • Page 25 11. Grapple Swivel: The grapple is designed with a hydraulic driven swivel in its mounting head. Use the right hand joy stick on the control panel to operate the swivel. Use the swivel to align the log with the trailer or pile as required.
  • Page 26 15. Slopes: The machine can be used in a variety of conditions including rugged terrain. The best results are obtained when the trailer is positioned going up and down the slope rather than across to eliminate the chance to tip the unit over. Always place the logs or load on the high side to reduce the ten- dency to tip.
  • Page 27 . Refuelling: The fuel tank is located on the engine. Do not overfill. Do not smoke when refuelling. Fig.  FUEL TANK 18. Cleaning: Clean the machine frequently to prevent a build-up of dust, chips and trash on the frame. A clean machine reduces the chance of rusting and fire.
  • Page 28 18. Operating Hints: a. Be sure the trailer is always securely attached to the tractor with a retainer through the draw- bar pin and a safety chain around the drawbar cage. b. Stay away from overhead power lines to pre- vent serious injury or death from electrocution.

  • Page 29: Transport Safety

    TRANSPORTING TRANSPORT SAFETY • Comply with state and local laws govern- • Be sure the trailer is hitched positively to ing safety and transporting of machinery on the tractor and a retainer is used through public roads. the drawbar. Always attach a safety chain between the hitch and the tractor.
  • Page 30 8. Clamp the grapple to the back of the trailer frame or a log. Do not let it swing free. Frame Fig. 9 GRAPPLE...

  • Page 31: Placing In Storage

    STORAGE OPERATING SAFETY • Store the unit in an area away from human • Store the unit in a dry, level area. Support the activity. frame with planks if required. • Do not permit children to play on or around the stored machine.

  • Page 32: Fluids And Lubricants

    SERVICE AND MAINTENANCE . SERVICE MAINTENANCE SAFETY .. FLUIDS AND LUBRICANTS • Good maintenance is your responsibility. 1. Grease: Poor maintenance is an invitation to trouble. Use an SAE multipurpose high temperature grease with extreme pressure (EP) perform- • Follow good shop practices. ance.

  • Page 33: Servicing Intervals

    ..3 SERVICING INTERVALS The period recommended is based on normal operating conditions. Severe or unusual condi- tions may require more frequent lubrication or oil changes. 8 Hours or Daily 1. Check engine oil level. 2. Check fuel level. 3. Check hydraulic reservoir oil level (sight glass).
  • Page 34 0 Hours or Weekly 2. Grease stabilizer pivot pins (3 locations each stabilizer). Right Left Fig. 3 STABILIZERS 3. Grease boom, dipper and grapple pivots points: a. Boom lift pivots. b. Dipper extend pivots. c. Grapple pivot. d. Grapple cylinder pivots. Boom Grapple Fig.

  • Page 35: Drain Plug

    00 Hours or Annually 1. Change engine oil. 2. Check tire pressure. Fig.  DRAIN PLUG 3. Change hydraulic system oil filter. Fig.  HYDRAULIC SYSTEM OIL FILTER...

  • Page 36: Air Cleaner

    00 Hours or Annually 5. Replace engine air cleaner. Fig.  AIR CLEANER 6. Change hydraulic system oil. Fig. 8 HYDRAULIC RESERVOIR 7. Clean machine. Fig. 9 MACHINE...

  • Page 37: Service Record

    .. SERVICE RECORD See Lubrication and Maintenance sections for details of service. Copy this page to continue record. ACTION CODE CHECK CLEAN REPLACE GREASE CHANGE HOURS SERVICED MAINTENANCE 8 Hours or Daily CK Engine Oil Level CK Fuel Level CK Hydraulic Oil Res. Level 0 Hours or Weekly CL Air Cleaner Stabilizer Pivots Points...

  • Page 38: Maintenance

    MAINTENANCE By following a careful service and maintenance pro- gram for your machine, you will enjoy many years or trouble-free operation. .. CLEANING AIR CLEANER 1. Review the Operator's Manual for the engine. 2. Place all controls in neutral, stop engine and remove ignition key and place in pocket before maintaining.

  • Page 39: Changing Engine Oil And Filter

    .. CHANGING ENGINE OIL AND FILTER Review the Operator's Manual for the engine. Place all controls in neutral and stop engine. Allow the engine to cool before changing the oil. Hot oil can cause burns if it contacts exposed skin. It is best to change oil while the engine is warm to keep the con- taminants in suspension.

  • Page 40: Changing Hydraulic System Oil And Filter

    ..3 CHANGING HYDRAULIC SYSTEM OIL AND FILTER Place all controls in neutral and stop engine. Allow the machine to cool before chang- ing the oil. Hot oil can cause burns if it contacts exposed skin. It is best to change oil while the machine is warm to keep the contaminants in suspension.

  • Page 41: Troubleshooting

    TROUBLE SHOOTING The Wallenstein Log Grapple Trailer is designed to lift, load and transport wood or logs out of the woods or woodlot. It is a simple and reliable system that requires minimal maintenance. In the following section, we have listed many of the problems, causes and solutions to the problems that you may encounter.

  • Page 42: Specifications

    SPECIFICATIONS MECHANICAL LX100/LT40 LX125/LT100 Lifting Capacity 1200 lbs. (545 kg) 1800 lbs (816.5 kg) Maximum Reach 10 feet (3 m) 12.5 feet (3.8 m) Max. Grapple Opening 36 in. (914 mm) 50 in. (1270 mm) Min. Grapple Opening 4 in. (101.6 mm) 4 in.

  • Page 43: Bolt Torque

    BOLT TORQUE CHECKING BOLT TORQUE The tables shown below give correct torque values for various bolts and capscrews. Tighten all bolts to the torques specified in chart unless otherwise noted. Check tightness of bolts periodically, using bolt torque chart as a guide. Replace hardware with the same strength bolt. ENGLISH TORQUE SPECIFICATIONS Bolt Torque* Bolt...

  • Page 44: Hydraulic Fitting Torque

    HYDRAULIC FITTING TORQUE Tube Nut Size Torque Recommended Tightening Flare Type Tube Fittings * Size Across Value• Turns To Tighten Flats (After Finger 1. Check flare and flare seat for defects Tightening) that might cause leakage. (in.) (in.) (N.m) (lb-ft) (Flats) (Turn) 2.
  • Page 45 INDEX PAGE PAGE Safety ..............2 Index ..............45 Equipment Safety Guidelines .....4 Introduction ............1 Gas Motor Safety........10 General Safety ...........3 Maintenance Safety ........7 Operating Safety.........8 Operator Safety Area ........6 Preparation ..........6 Operation ............14 Safety Signs ..........5 Attaching/Unhooking.........19 Safety Training..........5 Controls ............17 Sign-Off Form ...........
