Rockwell by Caliber™ Social Grill™
Model information:
60" 3 BURNER GRILL:
Models: CRG60R-L (Hardwood Cherry table base) or CRGSS60R-L (Stainless Steel table base)
(3) 20,000 BTU Caliber Crossflame™ grill burners, RED powder coated tabletop
for use with LP Gas
Models: CRG60R-N (Hardwood Cherry table base) CRGSS60R-N (Stainless Steel table base)
(3) 20,000 BTU Caliber Crossflame™ grill burners, RED powder coated tabletop
for use with NG Gas
Other Models Available:
CRG60B-L/N or CRGSS60B-L/N (Black tabletop) and CRG60TQ-L/N or CRGSS60T (Turquoise tabletop)
Installation + Use/Care Instructions
(20lb cylinder not included)
(hard piping required by certified installer)

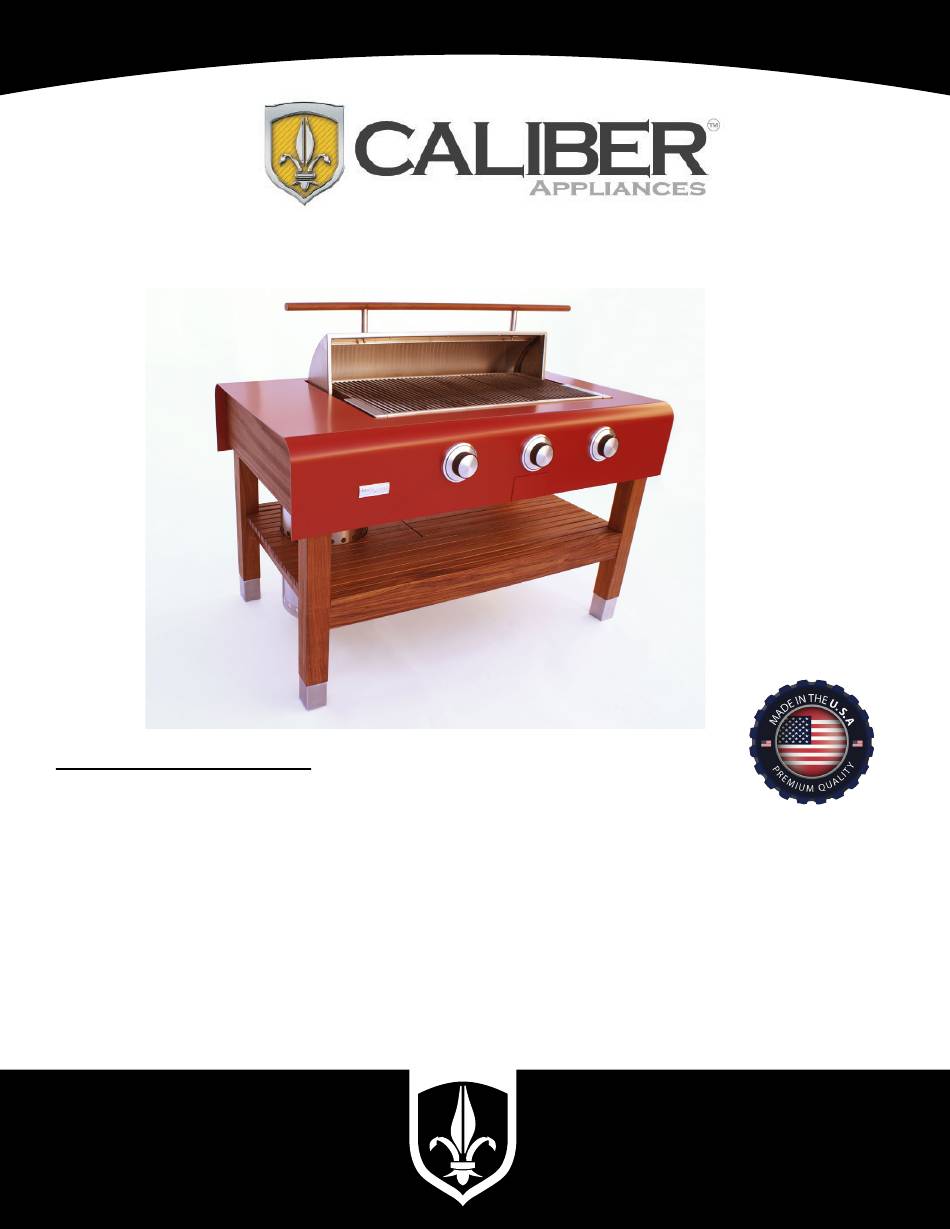

CRG60R-L shown above
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Caliber Rockwell CRGSS60R-L
Summary of Contents for Caliber Rockwell CRGSS60R-L
- Page 1 Model information: 60” 3 BURNER GRILL: Models: CRG60R-L (Hardwood Cherry table base) or CRGSS60R-L (Stainless Steel table base) (3) 20,000 BTU Caliber Crossflame™ grill burners, RED powder coated tabletop for use with LP Gas (20lb cylinder not included) Models: CRG60R-N (Hardwood Cherry table base) CRGSS60R-N (Stainless Steel table base) (3) 20,000 BTU Caliber Crossflame™...
- Page 2 DANGER: AVERTISSEMENT S’IL Y A UNE ODEUR DE GAZ: If you smell gas: 1. Shut off gas to the grill. 1. Coupez l’admission de gaz de l’appariel. 2. Extinguish any open flame. 2. Éteindre toute flamme nue. 3. Open Lid. 3.
-
Page 3: Table Of Contents
Table of Contents Page 2 Unpacking the Grill Pages 3-6 Care and Safety Precautions Page 7 Grill Placement and Installation Pages 8-10 Pressure testing and Hookups Page 11 Air Shutter Adjustments Page 12 Leak Testing Page 13 Gas Requirements Page 14 Grill Burner Assembly and Use Pages 15-16 Lighting the Grill... -
Page 4: Unpacking The Grill
Unpacking the Grill Note: The Rockwell by Caliber Grill is designed to be used with little assembly after the grill and its base is unpacked. NOTE: The grill head is mounted to the base cart at the factory and care must be used when unpacking and placing the... -
Page 5: Care And Safety Precautions
SAFETY PRACTICES TO AVOID PERSONAL INJURY! When properly cared for, your Caliber grill will give safe and reliable service for many years. However, extreme care must be used since the grill produces intense heat and can increase accident potential. When using your grill, basic safety prac-... - Page 6 » Keep all electrical cords and fuel supply hoses away from the heated areas of the grill. » Never use a dented or rusty LP tank. » The Natural Gas pressure regulator or LP Regulator hose assembly supplied with this unit must be used. » Contact Caliber Appliances for replacement parts.
- Page 7 WARNING! Spiders and insects can nest in the grill burners , causing gas not to flow through the burner. The gas will flow from the front of the burner into the control panel. This is a very dangerous condition which can cause a fire to occur behind the valve panel, thereby damaging the grill components and making it unsafe to operate.
- Page 8 » This unit is for outdoor use only! Do not operate in enclosed areas. This could result in carbon monoxide build-up which would result in injury or death. » When using a grill, be sure that all parts of the unit are firmly in place and that the grill is stable (can’t be tipped over). »...
-
Page 9: Grill Placement And Installation
GRILL PLACEMENT AND INSTALLATION Clearance to non-combustible construction*: A minimum of 12” clearance from the back of the grill(as mounted to the factory wood cart) to non-combustible con- struction is required to allow for movement around the entire perimeter of the grill. It is desirable to allow at least 18-24” rear and side clearance to non-combustible construction on all 4 sides of the grill for ease of movement around the grill. -
Page 10: Pressure Testing And Hookups
PRESSURE TESTING AND HOOKUPS CAUTION! Use grill only as it is built onto the included base cart. DO NOT build grill into a combustible enclosure. PRESSURE TESTING » The appliance and its individual shut off valve must be disconnected from the gas supply piping system during any pressure testing of that system, at test pressures in excess of 1/2 PSIG (3.5 kPa). - Page 11 PRESSURE TESTING AND HOOKUPS - cont’d LP GAS HOOK-UP » Never connect an unregulated gas line to the grill. LP unit grills come equipped with a high capacity hose/regulator assembly (Type 1 QCC1) for connection to a standard 20LB LP cylinder (type 1). The LP tank is NOT included. Place the tank into the slide out tank holder and connect as shown below.
- Page 12 LP GAS HOOKUP LP GAS HOOK UP: (TYPE 1 OR QCC1 REGULATOR): Grills orifices for use with LP gas come equipped with a high capacity hose/regulator assembly for connection to a standard 20 lb. LP cylinder (Type 1). The LP tank is not included. Connection: 1/2”...
-
Page 13: Air Shutter Adjustments
AIR SHUTTER ADJUSTMENTS BURNER AIR SHUTTER ADJUSTMENT » Each burner air shutter is tested at the factory prior to shipment; however, variations in the local gas supply may make it necessary to adjust the air shutters. The flames of the burners should be visibly checked. »... -
Page 14: Leak Testing
LEAK TESTING Note: When an LP unit is being directly connected to an LP house system, you must follow the natural gas hook up guide- lines. The installer must provide the proper gas regulator to reduce the gas flow to 11” W.C. Note: The Grill does not come with the LP Regulator/Hose assembly installed. -
Page 15: Gas Requirements
GAS REQUIREMENTS (LP or NG Natural Gas) Verify the type of gas supply to be used, either Natural or LP (standard and recommended), and make sure the mark- ing on the appliance rating plate agrees with that of the supply. The rating plate is located underneath the unit bottom. Never connect an unregulated gas line to the appliance. -
Page 16: Grill Burner Assembly And Use
GRILL BURNER ASSEMBLY AND USE The Rockwell by Caliber™ Grill is equipped with 3 high quality, non-rusting, patent pending Stainless Steel burners which when coupled with the patent pending burner radiants produce an even intense heat that will grill uncom- monly even. -
Page 17: Lighting The Grill
LIGHTING THE GRILL BEFORE TURNING ON THE BURNERS » Ensure that all packaging material has been removed » Ensure that the grill has been leak tested and is properly located » Check that the radiant trays and grill racks are properly seated »... - Page 18 LIGHTING THE GRILL - cont’d The Rockwell by Caliber™ Grill is equipped with 3 high quality, non-rusting, patent pending Stainless Steel burners which when coupled with the patent pending burner radiants produce an even intense heat that will grill uncom- monly even.
- Page 19 TO MATCH LIGHT THE GRILL If the burners do not light after several attempts, then the burners may be match lit using a long stem match. Pass the lit match through the notch in the front of the grill rack, keeping your hand and face away from the grill area while pushing and turning the grill knob 90 degrees to the HI position.
-
Page 20: Care And Maintenance
CARE AND MAINTENANCE GRILL RACKS It is recommended that the grill racks be cleaned immediately after grilling, AFTER the flame has been turned off. Be sure to wear a barbecue mitt to protect your hands from the heat and steam. Dip a wire brush in tap water and scrub the hot grill racks. -
Page 21: Warranty
Caliber to be defective. Replacement will be FOB Huntington Beach, CA, and Caliber will not be liable for any transportation costs, labor costs, or export duties. This warranty shall not apply, nor can we assume responsibility for damage that might result from a failure to follow manufacturer’s instructions or local codes, where the appliance has been tampered with or altered in any... - Page 22 AVERTISSEMENT S’IL Y A UNE ODEUR DE GAZ: » Coupez l’admission de gaz de l’appariel. » Éteindre toute flamme nue. » Ouvrir le couvercle. » Si l’odeur persiste, appeler immédiatement votre compagnie de gaz ou votre département des incendies. AVERTISSEMENT »...
- Page 23 AVERTISSEMENT: » Tout contact de la peau avec la phase liquide de la bouteille causera des brûlures par le froid. » Empêcher les enfants de manipuler la bouteille ou de jouer avec. » Lorsque la bouteille n’est pas raccordée à l’appareil, en maintenir fermé le robinet. Pour les appareils de cuisson auto- nomes d’exténeur, utiliser une bouteille d’une capacité...
- Page 24 Caliber Appliances. Copyright 2017 CA LIBE RA P P LI A NC ES . COM Caliber Appliances 17812 Metzler Lane, Huntington Beach, California 92647 Part # 30457 rev. 10/2017 (714) 848-1349...
