Thermaltake Pacific A2 Ultra Quick Start Manual

This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment.
Before you start using this product please follow these basic guidelines:
1. Please read carefully through the instruction manual before beginning the installation process.
2. Please remove your graphics card from your motherboard to ensure the safest process and in order to prevent any possible damages to your CPU and motherboard.
3. It is strongly recommended using market proven pre-mix coolant, such as Thermaltake Coolant 1000.
A x 1 B
Water Block Heat Sink
Please confirm the RAMs are single sided or double
sided,single sided please refer to Type 1,
double sided please refer to Type 2.
Type 1
Type 2
B
2
Remove the protective film of Thermal Pad on Heat Sink(B) and Heat Sink(C).
4
© 2021 Thermaltake Technology Co., Ltd. All Rights Reserved.
x 4 C x 4
Heat Sink Thermal Pad
Memory Module Installation Guide
C
C
B
H
Use the Screws(H) to enclose the
HeatSink(B) and HeatSink(C).

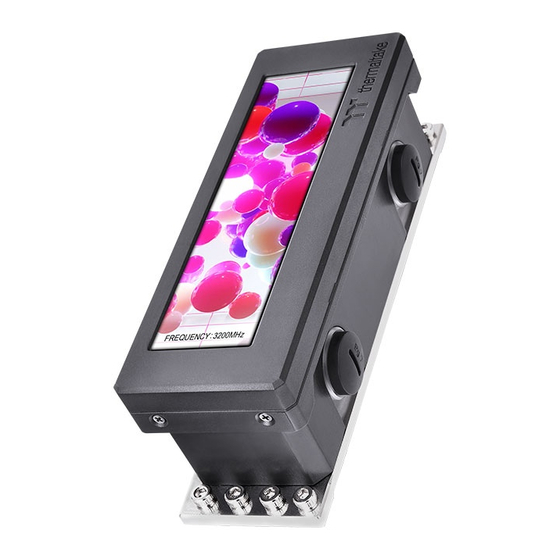

Pacific A2 Ultra Memory Water Block
Parts List
D x 8 E x 1
Thermal Pad
Type 1
1
B
Attach Thermal Pad(D)
to the Heat Sink(B)
3
5
www.thermaltake.com
G x 4 H x 12
Thermal Pad
Screw
(Thick)
C
D
Attach Thermal Pad(G)
to the Heat Sink(C)
Install the RAMs on Heat Sink(B).
Please be aware of the direction and the position.
Finished
CL-W333-CU00SW-A
I x 8 J x 1
Screw Controller Cable
G
Thick
B
