Aquacal HP9 Quick Start Manual

A

Wake up heat pump

The display's backlight will be off when the heat
pump is in sleep mode. To wake up the heat pump,
slowly slide a finger across the buttons.
The display will illuminate.
l
The message "KEYPAD UNLOCKED" will
l
briefly appear.
Then the water temperature and mode will
l
display.

Choose what you want the heat pump to do

B
C

Set a desired temperature (setpoint) for the water

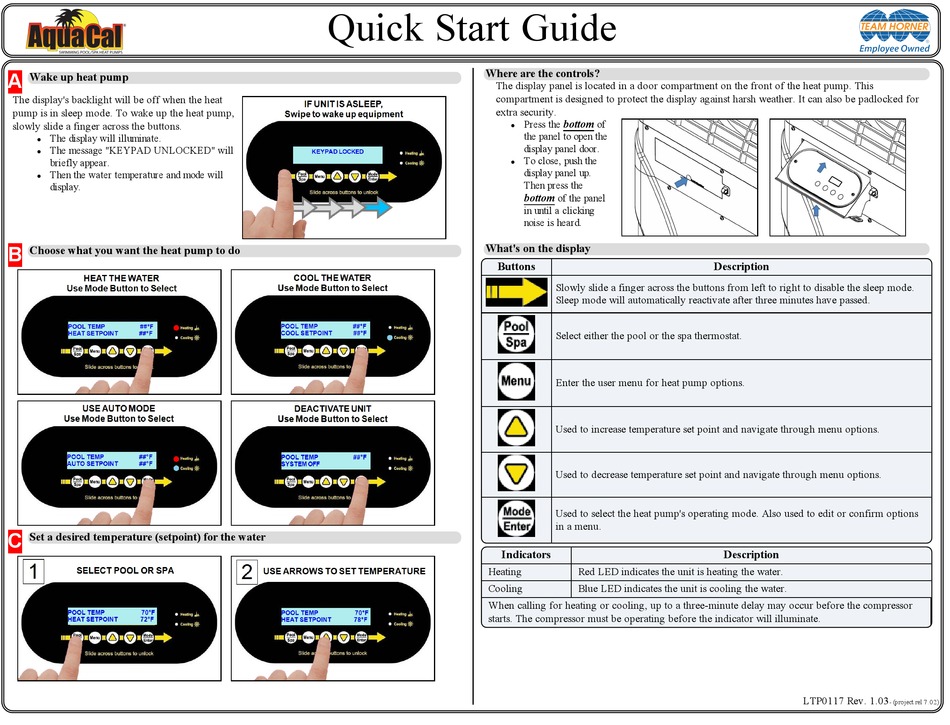

Quick Start Guide
Where are the controls?
The display panel is located in a door compartment on the front of the heat pump. This
compartment is designed to protect the display against harsh weather. It can also be padlocked for
extra security.

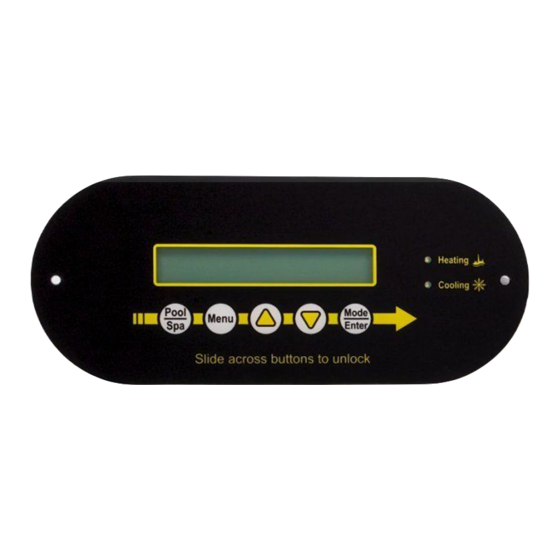

What's on the display
Buttons
Indicators
Heating
Cooling
When calling for heating or cooling, up to a three-minute delay may occur before the compressor
starts. The compressor must be operating before the indicator will illuminate.
Press the bottom of
l
the panel to open the
display panel door.
To close, push the
l
display panel up.
Then press the
bottom
of the panel
in until a clicking
noise is heard.
Slowly slide a finger across the buttons from left to right to disable the sleep mode.
Sleep mode will automatically reactivate after three minutes have passed.
Select either the pool or the spa thermostat.
Enter the user menu for heat pump options.
Used to increase temperature set point and navigate through menu options.
Used to decrease temperature set point and navigate through menu options.
Used to select the heat pump's operating mode. Also used to edit or confirm options
in a menu.
Red LED indicates the unit is heating the water.
Blue LED indicates the unit is cooling the water.
Description
Description
LTP0117 Rev. 1.03
- (project rel 7.02)
